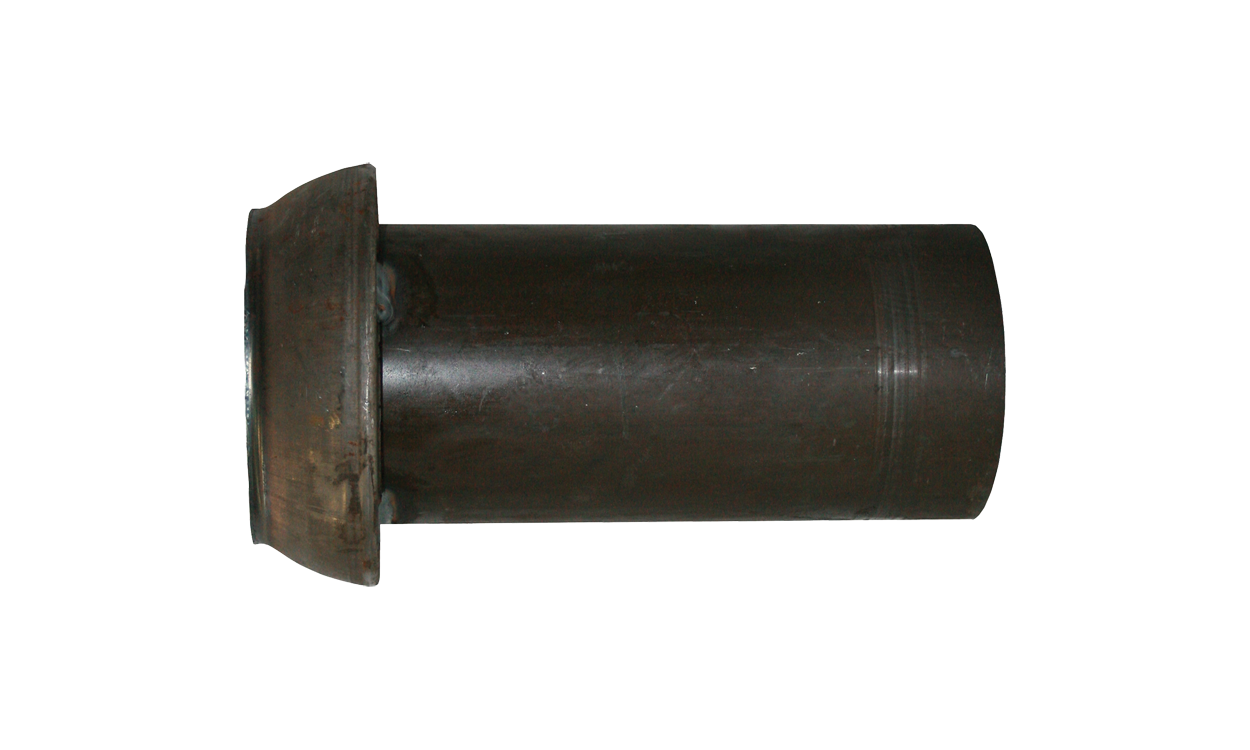

Male coupling with pipe nozzle System Perrot
Product information "Male coupling with pipe nozzle System Perrot"
for weld on
| Material: | steel, galvanized |
|---|
| NW | Material | Product Number | Delivery Time | |
|---|---|---|---|---|
| 50 | steel, galvanized | 2405050000 | ||
| 70 | steel, galvanized | 2405070000 | ||
| 89 | steel, galvanized | 2405089000 | ||
| 108 | steel, galvanized | 2405108000 | ||
| 133 | steel, galvanized | 2405133000 | ||
| 159 | steel, galvanized | 2405159000 |
Product data sheet
Skip product gallery
Maßtabelle Kupplungensystem Perrot
Das Kupplungensystem Perrot besteht aus einem M-Teil (Mutterteil) und einem V-Teil (Vaterteil). Das M-Teil besteht aus einem Becherteil mit einem Gummiring und einem hinter dem Becherteil befindlichen beweglichen Ring mit aufgesetztem Hebelwerk. Das Hebelwerk greift hinter den Pilzkopf des V-Teils, um dieses mit dem M-Teil fest zu verbinden. Durch die pilzförmige Bauweise lassen sich M- und V-Teil um bis zu 15° geneigt zusammenkuppeln. Um die exakte Größe der Kupplungen zu bestimmen, werden bei dem M-Teil der Innendurchmesser und bei dem V-Teil der Außendurchmesser gemessen.
NW
A (mm)
B (mm)
50 / 2"
75,0
75,0
70 / 2 1/2"
98,0
102,5
89 / 3"
130,0
134,0
108 / 4"
145,5
155,5
133 / 5"
171,5
179,0
159 / 6"
203,5
211,0
216 / 8"
287,0
312,5
