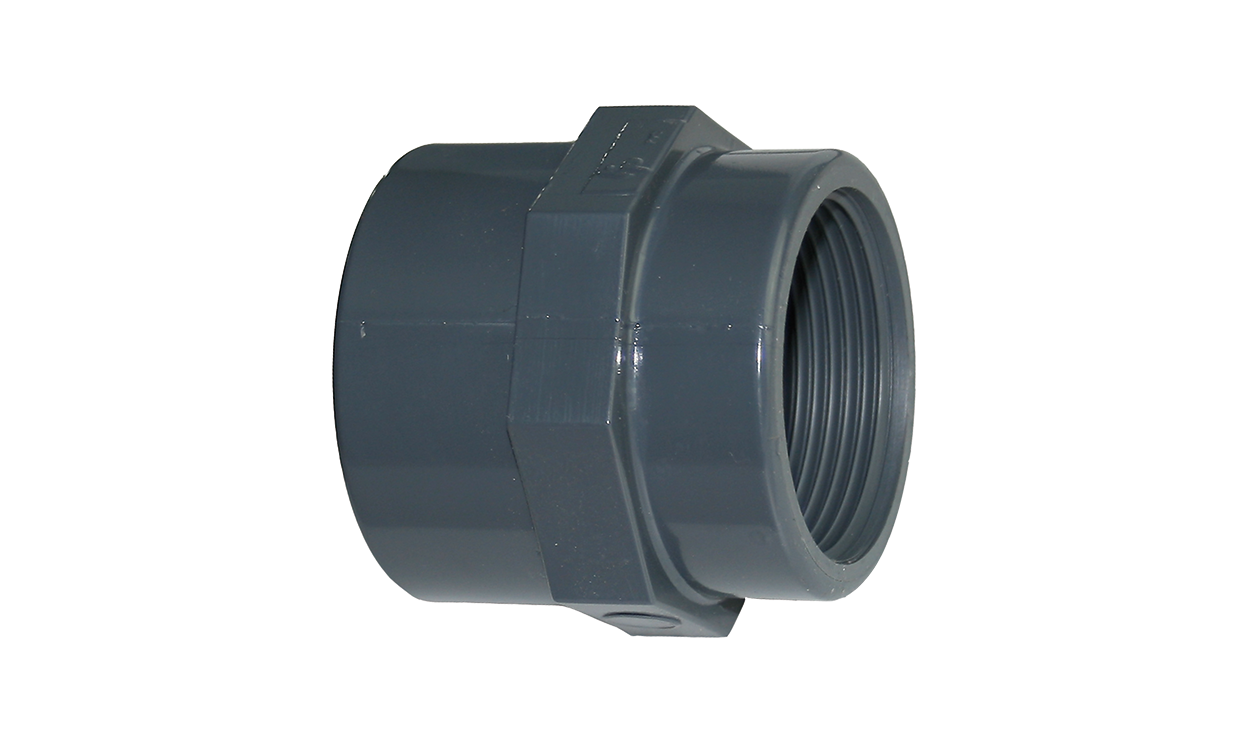

PVC Threaded socket (Typ COBI)
Product information "PVC Threaded socket (Typ COBI)"
| Material: | PVC-U |
|---|
| Female thread | d | WP (bar) | Packing unit (piece) | Product Number | Delivery Time | |
|---|---|---|---|---|---|---|
| 3/8" | 16 | 16 | 500 | 4295016010 | ||
| 1/2" | 20 | 16 | 150 | 4295020013 | ||
| 3/4" | 25 | 16 | 90 | 4295025019 | ||
| 1" | 32 | 16 | 120 | 4295032025 | ||
| 1 1/4" | 40 | 16 | 75 | 4295040032 | ||
| 1 1/2" | 50 | 16 | 70 | 4295050038 | ||
| 2" | 63 | 16 | 80 | 4295063050 | ||
| 2 1/2" | 75 | 16 | 120 | 4295075063 | ||
| 3" | 90 | 16 | 75 | 4295090075 | ||
| 4" | 110 | 10 | 35 | 4295110100 | ||
| 5" | 140 | 10 | 18 | 4295140125 | ||
| 6" | 160 | 10 | 9 | 4295160150 |
Product data sheet
