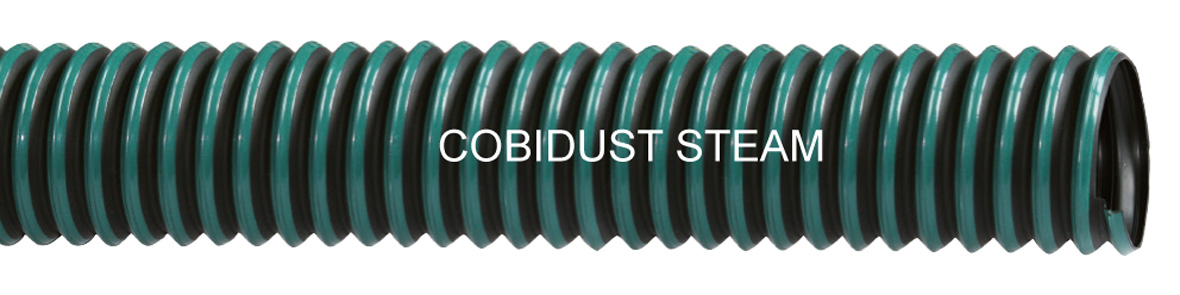

COBIDUST STEAM - High temperature exhaust ventilation hose
Product information "COBIDUST STEAM - High temperature exhaust ventilation hose"
suitable for suction of hot air and fumes, good resistance against chemicals. Very light, flexible and abrasion proof quality.
| Colour: | black/green |
|---|---|
| Structure: | PP/EPDM, black with green stripes, with steel wire, inside and outside corrugated |
| Temperature range: | -40°C up to +125°C |
| Inner-Ø (mm) | Length (m) | Unit | wall thickness (mm) | bending radius (mm) | Vacuum (m WC) | weight (g) | Product Number | Delivery Time | |
|---|---|---|---|---|---|---|---|---|---|
| 40 | 20 | meter | 0,4 | 32 | 2 | 200 | 1278040000 | ||
| 51 | 20 | meter | 0,4 | 40 | 2 | 250 | 1278051000 | ||
| 60 | 20 | meter | 0,4 | 50 | 1,7 | 290 | 1278060000 | ||
| 76 | 20 | meter | 0,5 | 65 | 1,7 | 460 | 1278076000 | ||
| 80 | 20 | meter | 0,5 | 65 | 1,6 | 500 | 1278080000 | ||
| 90 | 20 | meter | 0,5 | 75 | 1,6 | 580 | 1278090000 | ||
| 102 | 15 | meter | 0,6 | 85 | 1,3 | 610 | 1278102000 | ||
| 110 | 15 | meter | 0,6 | 90 | 1,2 | 660 | 1278110000 | ||
| 127 | 15 | meter | 0,65 | 105 | 1 | 830 | 1278127000 | ||
| 152 | 15 | meter | 0,65 | 125 | 0,8 | 1010 | 1278152000 | ||
| 160 | 15 | meter | 0,65 | 130 | 0,7 | 1090 | 1278160000 | ||
| 203 | 15 | meter | 0,65 | 165 | 0,4 | 1480 | 1278203000 | ||
| 305 | 10 | meter | 0,65 | 250 | 0,3 | 2380 | 1278305000 |
Product data sheet
Skip product gallery
COBIDUST SIL 2 - High temperature silicon exhaust ventilation hose
very flexible hose made of two layers of fiberglass, silicone coated, suitable for exhaust industrial ventilation, automotive and plastic industry.
Product number:
MASTER-1277
Skip product gallery
Stainless steel ball valve
Female thread:
3"
both sides female thread
two-part with full bore, lockable
Product number:
5500075000
Female coupling with female thread type D - System Kamlok stainless steel
NW:
1"
with stainless steel lever
Product number:
2173025000
COBITROM PLUS - Special silo conveying hose
wall thickness (mm):
10
|
Inner-Ø (mm):
100
|
Length (m):
Abschnitt
suitable for abrasive media, grain, cement, powder. Abrasion-proof rubber conveying hose.
Product number:
1321102000abs
Hose clamps 2-ear-clamps
Clamping range (mm):
15-18
suitable for easy assembling with a pliers
Product number:
1555015018
Malleable cast iron T-fitting 90° Nr. 130
Female thread:
1/2"
all sides female thread
Product number:
3717013000
PE flange adaptor SDR 11
DN:
100
|
d:
125
PE 100 SDR 11 / 10 bar gas / 16 bar water, fluted sealing face
Product number:
4731125000
Malleable cast iron Screw connection no. 330
Female thread:
1"
both sides female thread, flat sealing, without gasket
Product number:
3736025000
PP T-fitting 90°
Female thread:
1"
|
d:
25
both sides screw connection, with female thread at middle connection
Product number:
4659025025
COBIORPU - Light weight Polyurethane exhaust ventilation hose
Inner-Ø (mm):
45
|
Length (m):
Abschnitt
suitable for powder, grain mixture, wood shaving, dust, isolating materials, grass and deciduous exhaust ventilation, food and chemicals. Very moveable and abrasion-proof PU hose for light applications. Microbes and hydrolysis resistant.
Product number:
1333045000abs
Malleable cast iron Ceiling elbow no. 471
Female thread:
1/2"
both sides female thread, with 3-point fastening
Product number:
3740013000
TW adapter coupling
NW:
VK 50 x 2 1/2" IG
for screw on filler pipes VK 50 x 2 1/2" female thread
Product number:
2007000000
Hose bushing System Carbofer
for hose (mm):
65
|
outer diameter (mm):
114,3
without screws
Product number:
2855114091
COBIORPU - Light weight Polyurethane exhaust ventilation hose
Inner-Ø (mm):
38
|
Length (m):
Abschnitt
suitable for powder, grain mixture, wood shaving, dust, isolating materials, grass and deciduous exhaust ventilation, food and chemicals. Very moveable and abrasion-proof PU hose for light applications. Microbes and hydrolysis resistant.
Product number:
1333038000abs
Connection bend 90° System Perrot
NW:
89
for hydrants with 2 x female coupling 89 mm
Product number:
2449089000
COBIORPU - Light weight Polyurethane exhaust ventilation hose
Inner-Ø (mm):
60
|
Length (m):
Abschnitt
suitable for powder, grain mixture, wood shaving, dust, isolating materials, grass and deciduous exhaust ventilation, food and chemicals. Very moveable and abrasion-proof PU hose for light applications. Microbes and hydrolysis resistant.
Product number:
1333060000abs
Hose bushing System Carbofer
for hose (mm):
38
|
outer diameter (mm):
88,9
without screws
Product number:
2855089058
Female coupling italian coupling system
NW:
120
with bored rectangular flange
Product number:
8306120125
PVC table duct for polyester tank
d:
75
|
female thread / male thread:
3" / 3"
bonding socket x male thread x male thread
Product number:
4429075075
Brass sleeve ball valve type industry
female thread / male thread:
1 1/2"
one side female thread, other side male thread
with full bore, useable for not aggressive media
Product number:
3032038000
Brass standpipe screw connection
Male thread:
1"
|
for hose (mm):
25
three-part with male thread, flat sealing
Product number:
3332025025
PVC Elbow 90° (Typ COBI)
Female thread:
3/8"
|
d:
16
bonding socket x female thread without reinforcement ring
Product number:
4175016010
Brass sleeve ball valve type 343
female thread / male thread:
2"
one side female thread, other side male thread
with full bore and adjustable sealing element
Product number:
3024050000
PP T-fitting 90°
Female thread:
1 1/2"
|
d:
50
both sides screw connection, with female thread at middle connection
Product number:
4659050038
PVC kit for butterfly valve type VDL
d:
140
components: flange adaptor, loose flange galvanized bolts
Product number:
4581140001
Male coupling with hose nozzle System Bauer
NW:
108
|
for hose (mm):
110
with rubber ring
Product number:
2607108110
Pipeplug
Outer-Ø (mm):
500-1000
Pipeplugs are suitable for the application in pipes and sewers. To use for the shutoff for maintenance, inspection or new production of pipe systems. Thanks to their light weight, they are easy and quick to install and remove. The pipeplugs are made of a high quality rubber with fabrics.
Product number:
6300500100
Brass sleeve ball valve type 343
female thread / male thread:
1 1/2"
one side female thread, other side male thread
with full bore and adjustable sealing element
Product number:
3024038000
Brass suction coupling with hose nozzle System Storz
NW:
25-D
|
for hose (mm):
25
Product number:
2147025025
Rotor blades
addition2:
PNR 142
|
dimesnsions (mm):
89,0 x 5,80 x 402,5
Replacement rotor blades. Each pump requires several blades. Please order the required number.
Product number:
9800142005
Compressed air claw coupling with hose connection
NW:
5/8"
for inclusion with clamps
Product number:
2205016000
PVC ball valve type COBI
Female thread:
2 1/2"
both sides female thread with union nut
Product number:
4515063000
Stainless steel V2A band
Band width (mm):
12
for integration with tensioning tool
Product number:
1592012000
Skip product gallery

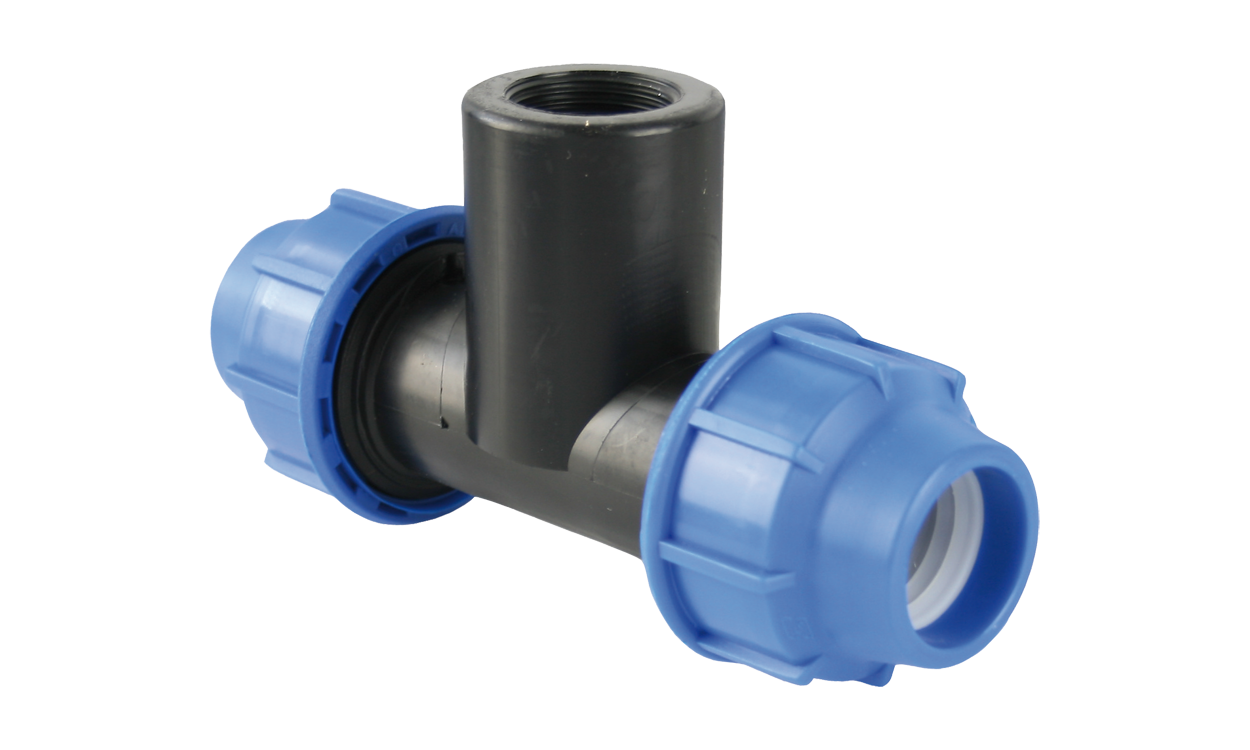

PP T-fitting 90°
