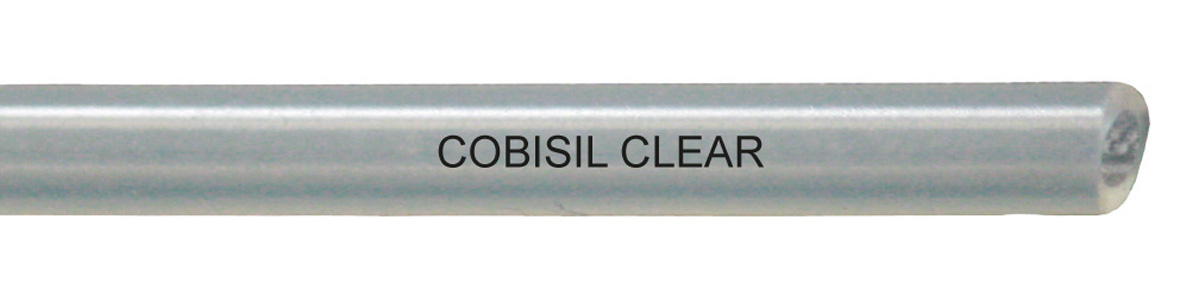

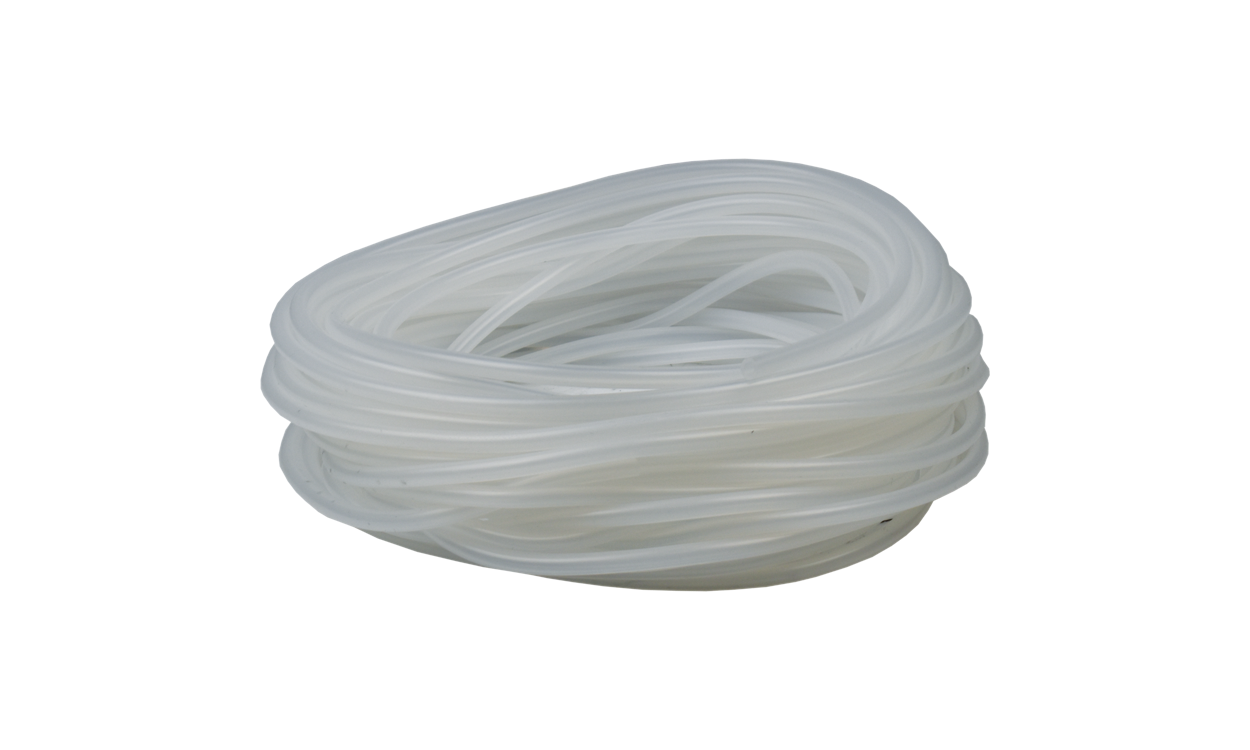

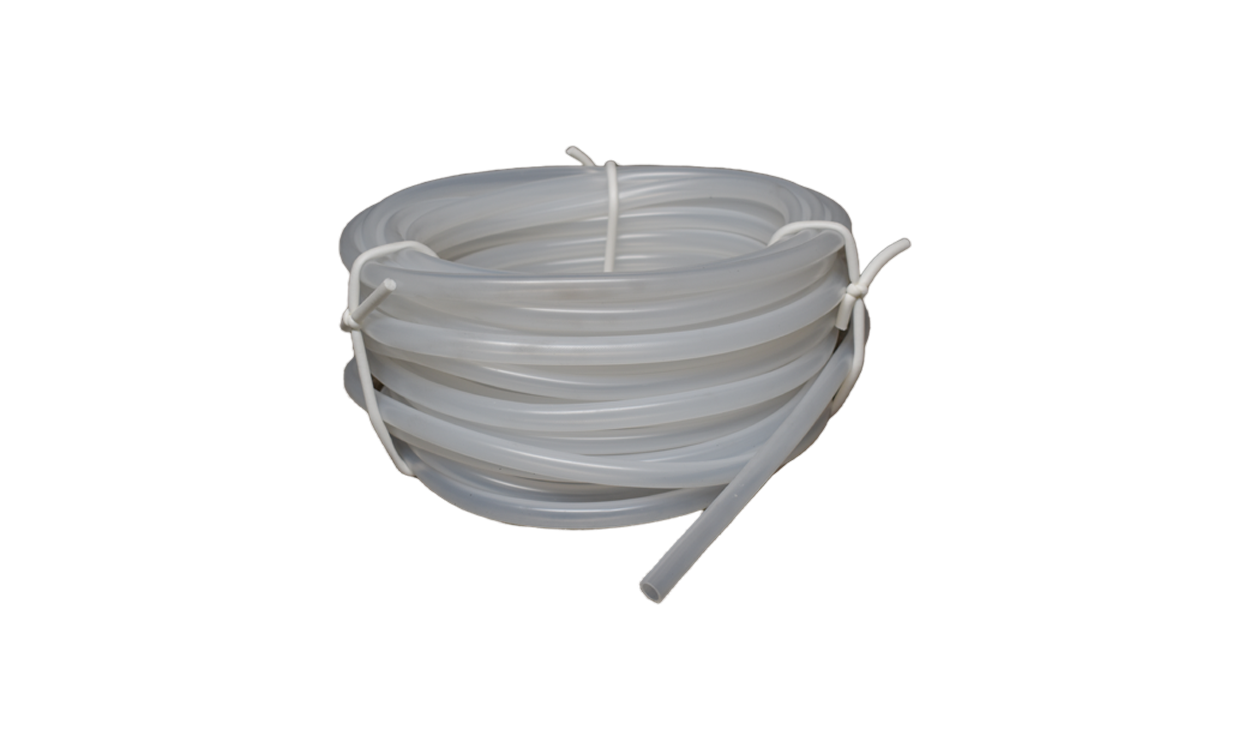

COBISIL CLEAR - Silicone hose
Product information "COBISIL CLEAR - Silicone hose"
for laboratory, hospital supplies, medical, pharmaceutical and food industry, not talcumed
| Certification: | according to FDA § 177.2600, USP VI, BfR XV, KTW/DVGW 270 |
|---|---|
| Colour: | transparent |
| Hardness: | 60 Shore A |
| Structure: | silicone platinum cross-linked |
| Temperature range: | -60°C up to +200°C |
| Inner-Ø (mm) | Length (m) | Unit | wall thickness (mm) | Outer-Ø (mm) | weight (g) | Product Number | Delivery Time | |
|---|---|---|---|---|---|---|---|---|
| 1 | 50 | meter | 1 | 3 | 8 | 1206001000 | ||
| 2 | 50 | meter | 1 | 4 | 12 | 1206002000 | ||
| 3 | 25 | meter | 1,5 | 6 | 27 | 1206003000 | ||
| 4 | 25 | meter | 1 | 6 | 20 | 1206004000 | ||
| 5 | 25 | meter | 1,5 | 8 | 39 | 1206005000 | ||
| 6 | 25 | meter | 1,5 | 9 | 45 | 1206006000 | ||
| 7 | 25 | meter | 2 | 11 | 72 | 1206007000 | ||
| 8 | 25 | meter | 2 | 12 | 80 | 1206008000 | ||
| 10 | 25 | meter | 2 | 14 | 96 | 1206010000 | ||
| 12 | 25 | meter | 2 | 16 | 112 | 1206012000 | ||
| 15 | 25 | meter | 3 | 21 | 216 | 1206015000 | ||
| 20 | 25 | meter | 3,5 | 27 | 329 | 1206020000 | ||
| 25 | 25 | meter | 3 | 31 | 336 | 1206025000 |
Product data sheet
Skip product gallery
Stainless steel hose nozzle with male thread
for monting with clamps for, grooved hose nozzle with external thread
Product number:
MASTER-5090
Skip product gallery
PVC Threaded socket (Typ COBI)
Female thread:
2"
|
d:
50
with reinforcement ring bonding socket x female thread
Product number:
4308050050
COBISIL CLEAR - Silicone hose
Inner-Ø (mm):
3
|
Length (m):
25
for laboratory, hospital supplies, medical, pharmaceutical and food industry, not talcumed
Product number:
1206003000
Food coupling with union nut
NW coupling x for hose (mm):
DN80 x 75 mm
for shell-inclusion with safety collar
Product number:
2710075000
Female coupling with crimped hose nozzle System Perrot
NW:
216
|
for hose (mm):
152
Product number:
2410216152
Brass suction hose connection with male thread
for hose (mm) x male thread:
13 x 1/2“ mt
useable for clamp-inclusion, corrugated hose connection with male thread, hexagon collar, flat sealing
Product number:
3330013013
COBIQUICK PUR S - Clamping flange
NW:
250
for connecting two clamping flanges with a COBIQUICK PUR S quick-release clamping ring. The cone flange is screwed to the COBIPUR S from the outside. Easy and quick to assemble, reusable, highly abrasion resistant.
When used vertically, the flange and hose must be secured with additional fasteners.
Product number:
2567250000
PVC pipe clip type Popp
Clamping range (mm):
31-35
inclusive removable filling block, pipe clamps can be plugged in a line
Product number:
4461031035
Malleable cast iron Screw connection no. 340
Female thread:
1 1/2"
both sides female thread, conical sealing
Product number:
3737038000
PP clamp saddle
Female thread:
1 1/4"
|
d:
140
with reinforcement ring and female thread
Product number:
4450140032
High pressure nozzle
addition:
type 4005
|
spray angle:
40° spray
with male thread (NPT)
Product number:
6055040050
DVGW-PP screw connection
Male thread:
1 1/2"
|
d:
50
one side screw connection, other side male thread
Product number:
4601050038
Flange ball valve
DN:
125
with full bore, overall length according to DIN 3202 F4, DIN 3202 F5
Product number:
3063125000
PVC Elbow 90° (Typ COBI)
Female thread:
3/4"
|
d:
25
bonding socket x female thread with reinforcement ring
Product number:
4185025019
Female coupling italian coupling system
NW:
80
with rubber ring, for weld on
Product number:
8300080000
COBISANDI - Sandblast ventilation hose
Inner-Ø (mm):
25
|
Length (m):
40
flexible sandblast ventilation hose for high abrasiv media as quartz sand, steel gravel, corundum, glass etc.
Product number:
1339025000
Female coupling with crimped hose nozzle System Perrot
NW:
159
|
for hose (mm):
50
Product number:
2410159050
COBISIL CLEAR - Silicone hose
Inner-Ø (mm):
25
|
Length (m):
25
for laboratory, hospital supplies, medical, pharmaceutical and food industry, not talcumed
Product number:
1206025000
Jurop-vacuum pump type PNR-D
addition2:
PNR 124 D
with air injection cooling and direct drive - smooth shaft right-hand turning
Product number:
9111124000
PVC Threaded socket (Typ COBI)
Female thread:
1/2"
|
d:
20
with reinforcement ring bonding socket x female thread
Product number:
4308020013
PP clamp saddle
Female thread:
1 1/4"
|
d:
110
with reinforcement ring and female thread
Product number:
4450110032
PVC T-fitting 90°
Female thread:
4"
|
d:
110
bonding socket x female thread x bonding socket with reinforcement ring
Product number:
4220110100
Brass angle seat valve
Female thread:
3/4"
both sides female thread with draining
Product number:
3213019000
Brass double nipple, reduced
male thread / female thread:
1" x 1 1/4"
one side male thread, other side female thread, flat sealing
Product number:
3363025032
PP clamp saddle
Female thread:
1 1/2"
|
d:
63
with reinforcement ring and female thread
Product number:
4450063038
Pipe cleaning nozzle
Female thread:
1/8"
with bore 3 x 0,8 mm backward and 1 x 0,8 mm forward
Product number:
6065003000
PVC Threaded socket (Typ COBI)
Female thread:
1 1/2"
without reinforcement ring 2 x female thread
Product number:
4355038000
PVC pressure pipe
wall thickness (mm):
15
|
d:
315
with one bonding socket
Product number:
4000315150
Skip product gallery

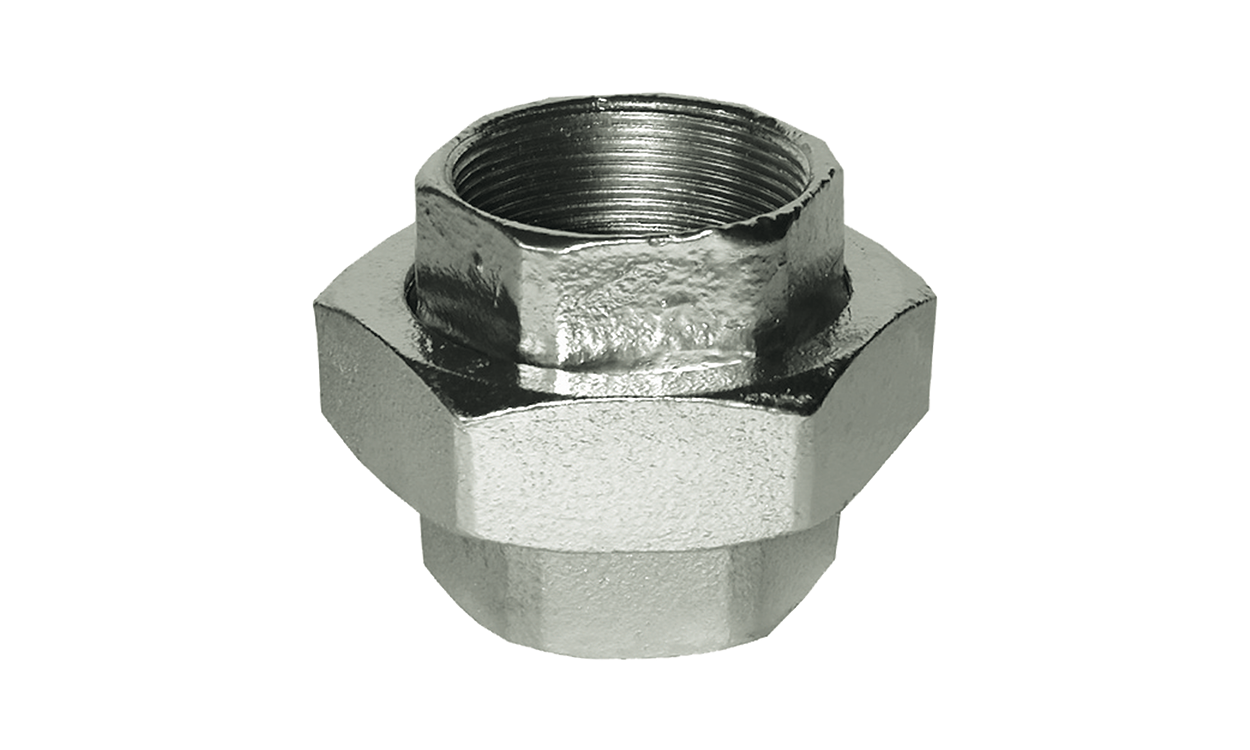

Malleable cast iron Screw connection no. 330
Female thread:
3/8"
both sides female thread, flat sealing, without gasket
Product number:
3736010000

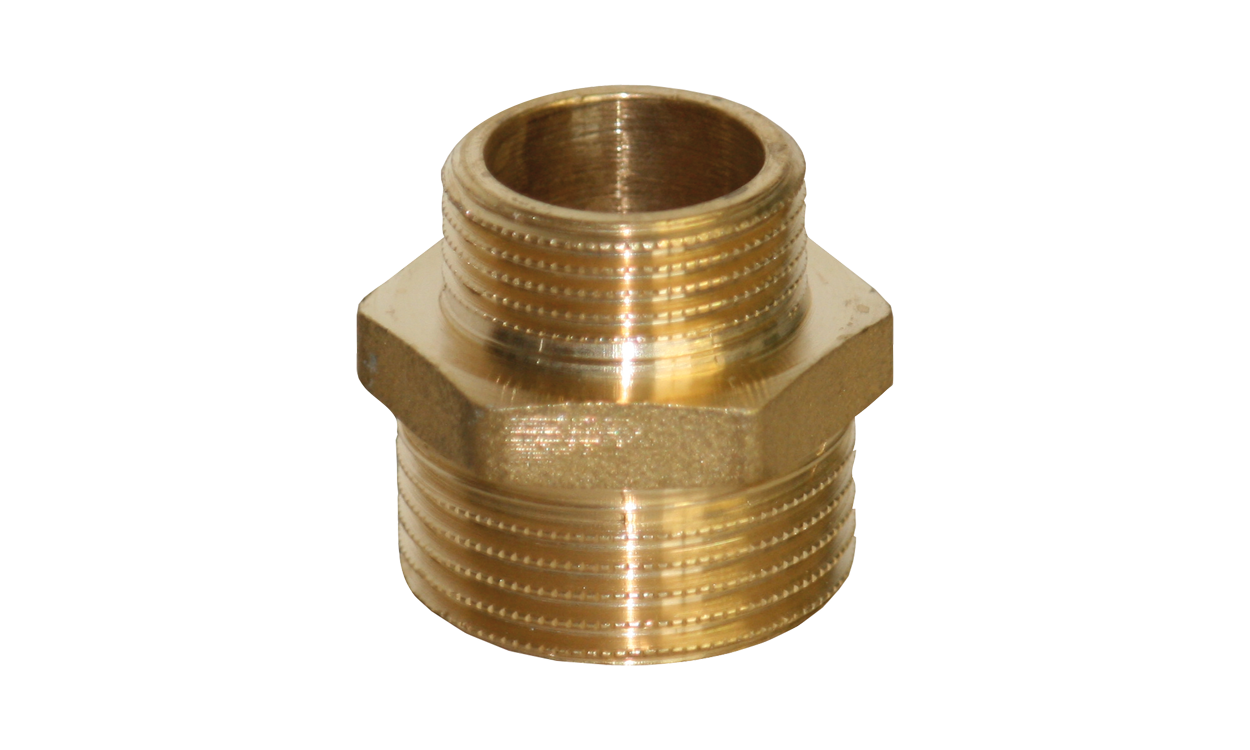

Brass double nipple, reduced
Male thread:
1/2" x 3/8"
both sides male thread, flat sealing
Product number:
3361013010

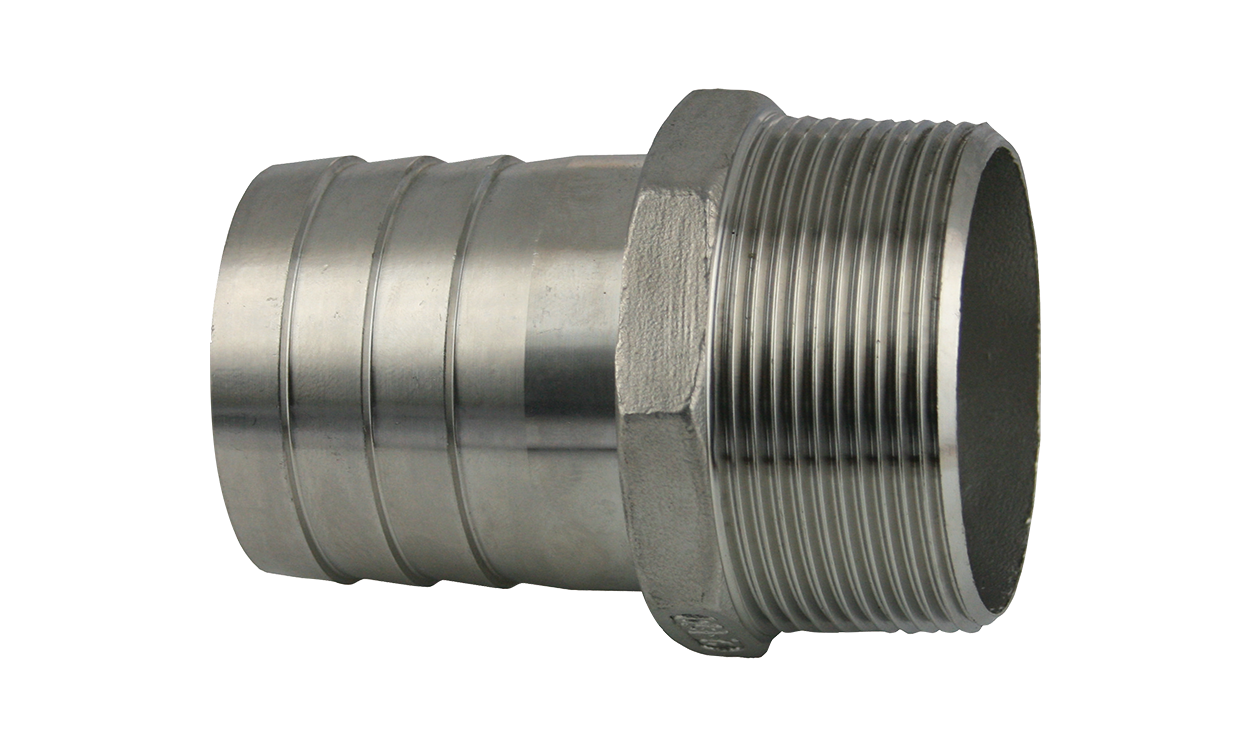

Stainless steel hose nozzle with male thread
for hose (mm) x male thread:
13 x 1/2“ mt
for monting with clamps for, grooved hose nozzle with external thread
Product number:
5090013000

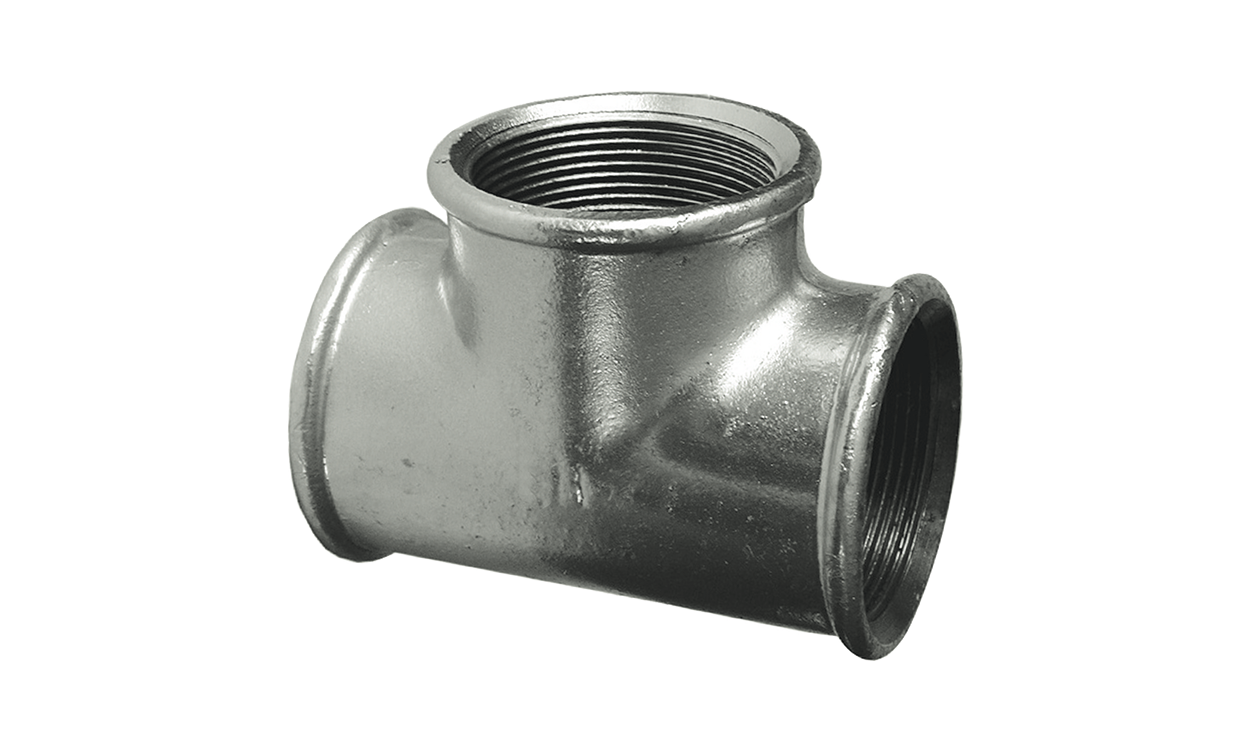

Malleable cast iron T-fitting 90° Nr. 130
