Male coupling with male thread System Bauer
Product information "Male coupling with male thread System Bauer"
with rubber ring
| Material: | steel, galvanized |
|---|
| NW | Male thread | Material | Product Number | Delivery Time | |
|---|---|---|---|---|---|
| 89 | 3" | steel, galvanized | 2609089075 | ||
| 108 | 4" | steel, galvanized | 2609108100 | ||
| 133 | 5" | steel, galvanized | 2609133125 | ||
| 159 | 6" | steel, galvanized | 2609159150 |
Product data sheet
Skip product gallery
Maßtabelle Kupplungensystem Bauer
Das Kupplungensystem Bauer besteht aus einer M-Kupplung (Kugel) und einer V-Kupplung (Becher). Die M-Kupplung hat zusätzlich zu der Kugel einen beweglichen Ring mit aufgesetztem Hebelwerk. Das Hebelwerk greift hinter den Becher der V-Kupplung, um dieses mit der M-Kupplung fest zu verbinden. Das System Bauer ist so konzipiert, dass sich M- und V-Kupplung um bis zu 20° geneigt zusammenkuppeln lassen. Um die exakte Größe der Kupplungen zu bestimmen, wird bei der M-Kupplung der Außendurchmesser und bei der V-Kupplung der Innendurchmesser gemessen.
NW
A (mm)
B (mm)
50 / 2"
70
71
76 / 2 1/2"
98
99
89 / 3"
120
121
108 / 4"
145
148
133 / 5"
158
163
159 / 6"
179
182
194 / 8"
229
231
250 / 10"
305
297
Product number:
Bauer
Skip product gallery
COBIRANO PU AS - PVC/PU suction and pressure hose
Inner-Ø (mm):
90
|
Length (m):
5,1
suitable for grit, stones, sand, grain and other abrasive media. Robust and moveable quality.
Product number:
1334090051
COBIVIN - PVC suction and pressure hose with steel wire spiral
Inner-Ø (mm):
50
|
Length (m):
1,5
for water, waste water, food, alcohol up to 20%, sewage, for groundwater lowering and machine construction also for agriculture and construction suitable. Also useable for hydraulic return lines.
Product number:
1070050015
COBIVIN - PVC suction and pressure hose with steel wire spiral
Inner-Ø (mm):
40
|
Length (m):
50
for water, waste water, food, alcohol up to 20%, sewage, for groundwater lowering and machine construction also for agriculture and construction suitable. Also useable for hydraulic return lines.
Product number:
1070040000
COBICREA - Slurry hose, High-flexible PVC suction and pressure hose
Inner-Ø (mm):
90
|
Length (m):
5,6
suitable for water, sewage and faeces. Ideal for use as a PVC suction hose and extension hose for liquid manure. For irrigation, agriculture, construction and industry. Highly flexible and cold-resistant quality.
Product number:
1082090056
Stainless steel fixed coupling with female thread System Storz
NW:
52-C
|
Female thread:
2"
Product number:
2107052050
COBIVIN - PVC suction and pressure hose with steel wire spiral
Inner-Ø (mm):
22
|
Length (m):
50
for water, waste water, food, alcohol up to 20%, sewage, for groundwater lowering and machine construction also for agriculture and construction suitable. Also useable for hydraulic return lines.
Product number:
1070022000
COBISPIRALPRESS - High-flexible PVC suction and pressure hose with external spiral
Inner-Ø (mm):
152
|
Length (m):
4
suitable for water, sewage and faeces. Specially designed for use with pumps. For irrigation, agriculture, construction and industry. Highly flexible and cold-resistant quality. The external spiral enables easier gliding over the floor.
Product number:
1092152004
Manometer 63 mm housing, connection 1/4" male thread bottom
indicating range (bar):
0/+6
Bourdon tube pressure gauge for liquid and gaseous media, type dry.
Product number:
8125006006
PVC elbow 90°
Female thread:
3/8"
|
d:
16
bonding socket x female thread without reinforcement ring
Product number:
4173016010
Brass sleeve swing check valve
Female thread:
1 1/2"
both sides female thread, metallic sealing
Product number:
3225038000
Stainless steel reducing socket
Female thread:
2" x 1 1/2"
both sides female thread
Product number:
5040050038
COBICREA - Slurry hose, High-flexible PVC suction and pressure hose
Inner-Ø (mm):
76
|
Length (m):
Abschnitt
suitable for water, sewage and faeces. Ideal for use as a PVC suction hose and extension hose for liquid manure. For irrigation, agriculture, construction and industry. Highly flexible and cold-resistant quality.
Product number:
1082076000abs
COBIDRUCK 16 - Rubber spiral suction and pressure hose 16 bar
Inner-Ø (mm):
100
|
Length (m):
Abschnitt
suitable for agriculture, construction trade and industry. Suitable for water, waste water, sewage and low concentrated alkalis and acids. Robust and kink resistant suction and pressure hose.
Product number:
1055100000abs
Brass hose connection with female coupling
for hose (mm) x female thread:
32 x 1 1/4“ ft
for clamp-inclusion, corrugated hose connection with union nut - female thread with gasket
Product number:
2052032032
COBIVIN - PVC suction and pressure hose with steel wire spiral
Inner-Ø (mm):
151
|
Length (m):
Abschnitt
for water, waste water, food, alcohol up to 20%, sewage, for groundwater lowering and machine construction also for agriculture and construction suitable. Also useable for hydraulic return lines.
Product number:
1070152000abs
Stainless steel reducing socket
Female thread:
1 1/2" x 1"
both sides female thread
Product number:
5040038025
Malleable cast iron Reducing sleeve no. 240
Female thread:
2" x 1 1/4"
both sides female thread
Product number:
3723050032
COBIRANO PU AS - PVC/PU suction and pressure hose
Inner-Ø (mm):
90
|
Length (m):
5,9
suitable for grit, stones, sand, grain and other abrasive media. Robust and moveable quality.
Product number:
1334090059
PE flange adaptor SDR 11
DN:
40
|
d:
50
PE 100 SDR 11 / 10 bar gas / 16 bar water, fluted sealing face
Product number:
4731050000
COBIVIN - PVC suction and pressure hose with steel wire spiral
Inner-Ø (mm):
60
|
Length (m):
50
for water, waste water, food, alcohol up to 20%, sewage, for groundwater lowering and machine construction also for agriculture and construction suitable. Also useable for hydraulic return lines.
Product number:
1070060000
PVC Reducing socket, short (Typ COBI)
d:
75 x 63
bonding socket x bonding connection
Product number:
4325075063
Steel round flange
d:
140
for fit of the PVC bending socket on brass slurry flange gate valve
Product number:
8022140000
Pipe double nipple no. 23 black
Male thread:
1/2"
|
length (mm):
40
both sides male thread according to DIN 2982
Product number:
3850013040
COBIGRANU PU FLEX - PVC/PU-suction- and pressure hose for middle heavy applications
Inner-Ø (mm):
38
|
Length (m):
Abschnitt
suitable for GFK, PVC and PE granulates, other abrasive media, food powders like flours, grains, freeze dried foodstuffs. Antistatic thanks to revolving copper braid, high abrasion-proof and very flexible PVC suction and conveying hose with polyurethane internal cover. Resistant to a variety of chemical substances. UV, ozone and weather resistant. Microbial and hydrolysis resistant.
Product number:
1325038000abs
Brass sleeve ball valve type COBI
Male thread:
2"
both sides male thread
with full bore, useable for not aggressive media
Product number:
3039050000
PVC kit for butterfly valve type VDL
d:
110
components: flange adaptor, loose flange galvanized bolts
Product number:
4581110001
PVC butterfly valve type VDL
d:
225
VDL Butterfly valve made of PVC-U with red grid lever
Product number:
4581225000
COBIHOTAIR WHITE + 210° C hot air compressor hose without spiral
Inner-Ø (mm):
51
|
Length (m):
40
for conveying dry hot air from the compressor to the tank
Product number:
1214051000
COBIRANO PU AS - PVC/PU suction and pressure hose
Inner-Ø (mm):
102
|
Length (m):
5,7
suitable for grit, stones, sand, grain and other abrasive media. Robust and moveable quality.
Product number:
1334102057
COBIPUR R - Middle heavy polyurethane exhaust ventilation hose, flame-retardant according to DIN 4102-B1, antistatic
Inner-Ø (mm):
250
|
Length (m):
10
suitable for wood shavings and wood exhaust ventilation. Conform to the safety regulations of the German Wood Trade Association. Not resistant to microbes and hydrolysis.
Product number:
1326250000
PVC butterfly valve type VDL
d:
75
VDL Butterfly valve made of PVC-U with red grid lever
Product number:
4581075000
Male coupling as blind coupling type DP - System Kamlok stainless steel
NW:
1"
Product number:
2179025000
COBITROM - Silo conveying hose
Inner-Ø (mm):
75
|
Length (m):
Abschnitt
suitable for abrasive media, grain, cement, powder. Abrasion-proof rubber conveying hose.
Product number:
1320075009abs
Female coupling with hose connection type C - System Kamlok stainless steel
NW:
1/2"
with stainless steel lever
Product number:
2171013000
COBICREA - Slurry hose, High-flexible PVC suction and pressure hose
Inner-Ø (mm):
120
|
Length (m):
2
suitable for water, sewage and faeces. Ideal for use as a PVC suction hose and extension hose for liquid manure. For irrigation, agriculture, construction and industry. Highly flexible and cold-resistant quality.
Product number:
1082120002
Malleable cast iron Reducing nipple no. 241
male thread / female thread:
1 1/4" x 3/4"
one side male thread, other side female thread
Product number:
3724032019
Female coupling as blind cap type DC - System Kamlok PP
NW:
3"
with stainless steel lever
Product number:
2158075000
Alu fixed coupling with male thread Type I System Storz
NW:
75-B
|
Male thread:
2"
Product number:
2112075050
Skip product gallery

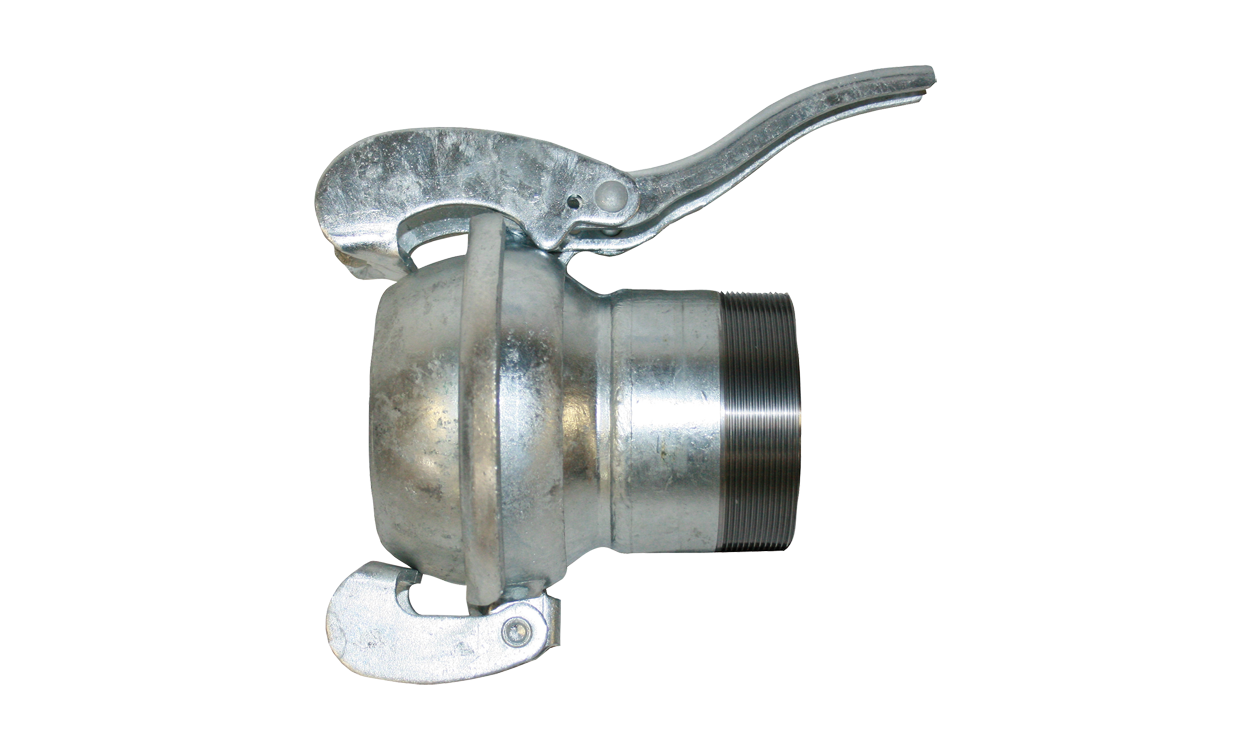

Female coupling with male thread System Bauer
NW:
108
|
Male thread:
4"
with lever arrangement
Product number:
2608108100
Male coupling with hose nozzle System Bauer
NW:
108
|
for hose (mm):
102
with rubber ring
Product number:
2607108100

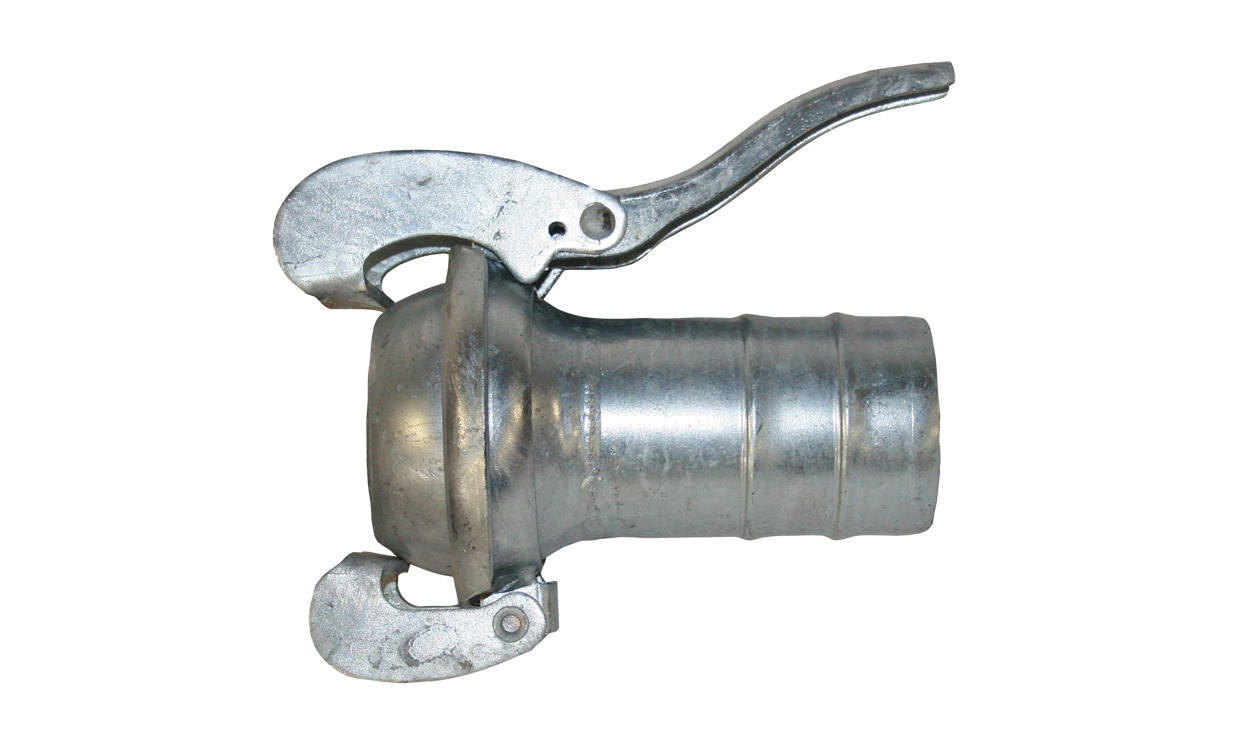

Female coupling with hose nozzle System Bauer
