COBISPIRALPRESS - High-flexible PVC suction and pressure hose with external spiral
Product information "COBISPIRALPRESS - High-flexible PVC suction and pressure hose with external spiral"
suitable for water, sewage and faeces. Specially designed for use with pumps. For irrigation, agriculture, construction and industry. Highly flexible and cold-resistant quality. The external spiral enables easier gliding over the floor.
| Inlays: | with polyester yarn inlay |
|---|---|
| Material: | PVC |
| Structure: | PVC hose, clear transaprent, with reinforced, external orange hard PVC spiral |
| Inner-Ø (mm) | Length (m) | Unit | Vacuum (m WC) | Outer-Ø (mm) | WP (bar) | weight (g) | bending radius (mm) | wall thickness (mm) | Product Number | Delivery Time | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 102 | 30 | meter | 9 | 123 | 6 | 2655 | 300 | 3,5/10,5 | 1092102000 | ||
| 127 | 30 | meter | 9 | 152 | 5 | 3965 | 380 | 5/12,5 | 1092127000 | ||
| 152 | 20 | meter | 8 | 182 | 5 | 5775 | 450 | 5/15 | 1092152000 | ||
| 152 | 2 | piece | 8 | 182 | 5 | 5775 | 450 | 5/15 | 1092152002 | ||
| 152 | 4 | piece | 8 | 182 | 5 | 5775 | 450 | 5/15 | 1092152004 | ||
| 152 | 5 | piece | 8 | 182 | 5 | 5775 | 450 | 5/15 | 1092152005 | ||
| 152 | 6 | piece | 8 | 182 | 5 | 5775 | 450 | 5/15 | 1092152006 | ||
| 203 | 5 | piece | 8 | 235,8 | 4 | 8245 | 600 | 6/16,4 | 1092203005 |
Product data sheet
Skip product gallery
Female coupling with crimped hose nozzle System Perrot
NW:
159
|
for hose (mm):
152
Product number:
2410159152
Alu suction coupling with hose nozzle with sawtooth System Storz
NW:
150-F
|
for hose (mm):
152
Product number:
2103150152
Male coupling with crimped hose nozzle System Perrot
NW:
159
|
for hose (mm):
152
Product number:
2415159152
Skip product gallery
Tangit cleaner
addition2:
tin 125 ml
for cleaning of bondig surfaces, for PVC-U (hard)
Product number:
4098000125
Brass double nipple, reduced
Male thread:
1" x 1/2"
both sides male thread, flat sealing
Product number:
3361025013
Tensioning tool
This tool exerts a drag of over 1000 kp and cuts off the band after fixing the clamp. The loop safes the band end.
Product number:
1591000000
Brass double nipple, reduced
Male thread:
1 1/2" x 1 1/4"
both sides male thread, flat sealing
Product number:
3361038032
Brass double nipple, reduced
Male thread:
1 1/4" x 1"
both sides male thread, flat sealing
Product number:
3361032025
Brass double nipple, reduced
Male thread:
3/4" x 1/2"
both sides male thread, flat sealing
Product number:
3361019013
Brass double nipple, reduced
Male thread:
1" x 3/4"
both sides male thread, flat sealing
Product number:
3361025019
Steel rectangular flange
Male thread:
4"
|
Outer-Ø (mm):
180 x 180
with welded on pipe nipple
Product number:
8023100000
Brass double nipple, reduced
Male thread:
1/2" x 3/8"
both sides male thread, flat sealing
Product number:
3361013010
Brass suction hose connection with male thread
for hose (mm) x male thread:
32 x 1“ mt
useable for clamp-inclusion, corrugated hose connection with male thread, hexagon collar, flat sealing
Product number:
3330025032
Brass suction hose connection with male thread
for hose (mm) x male thread:
25 x 3/4“ mt
useable for clamp-inclusion, corrugated hose connection with male thread, hexagon collar, flat sealing
Product number:
3330019025
Brass suction hose connection with male thread
for hose (mm) x male thread:
30 x 1“ mt
useable for clamp-inclusion, corrugated hose connection with male thread, hexagon collar, flat sealing
Product number:
3330025030
Brass double nipple, reduced
Male thread:
1 1/2" x 1"
both sides male thread, flat sealing
Product number:
3361038025
Brass suction hose connection with male thread
for hose (mm) x male thread:
51 x 2“ mt
useable for clamp-inclusion, corrugated hose connection with male thread, hexagon collar, flat sealing
Product number:
3330050051
Brass suction hose connection with male thread
for hose (mm) x male thread:
19 x 1“ mt
useable for clamp-inclusion, corrugated hose connection with male thread, hexagon collar, flat sealing
Product number:
3330025019
Flange adapter
NW:
8"
both sides rectangular flange lateral connection with 2” male thread
Product number:
8445200000
Steel rectangular flange
Outer-Ø (mm):
150 x 150
|
addition2:
4"
suitable for slurry gate flange valve
Product number:
8021100120
Brass suction hose connection with male thread
for hose (mm) x male thread:
10 x 3/8“ mt
useable for clamp-inclusion, corrugated hose connection with male thread, hexagon collar, flat sealing
Product number:
3330010010
Male coupling with female thread System Perrot
NW:
89
|
Female thread:
3"
Product number:
2423089075
Flange T-fitting
NW:
6"
|
addition2:
outlet 6"
all sides rectangular flange connection
Product number:
8451150000
Flange transition piece
DN:
150
|
addition2:
6"
from DIN round flange to rectangular flange
Product number:
8022150159
Brass double nipple, reduced
Male thread:
3/8" x 1/4"
both sides male thread, flat sealing
Product number:
3361010006
Steel rectangular flange
NW:
100
with pipe connection for PVC pressure pipes
Product number:
8440100110
Steel rectangular flange
Outer-Ø (mm):
230 x 230
|
addition2:
8"
suitable for slurry gate flange valve
Product number:
8021200180
Brass double nipple, reduced
Male thread:
2" x 1 1/2"
both sides male thread, flat sealing
Product number:
3361050038
Flange adapter
NW:
6"
both sides rectangular flange lateral connection with 2” male thread
Product number:
8445150000
Zunhammer Docking bell
NW:
150
elastic with mounting clam, for lateral or rearward docking without coupling necessity
Product number:
8433150000
Adapter for preformed clamps
For the installation the tensioning tool with the fittet adapter has to be fixed in a bench vice.
Product number:
1591000001
Tension jaw clamps W2
Clamping range (mm):
112-121
wide-band clamp with open able bridge piece and with rounded clamp band edges
Product number:
1525112121
Brass sleeve ball valve type COBI
Female thread:
3/4"
both sides female thread
with full bore, useable for not aggressive media
Product number:
3030019000
PP-Bibcock ball valve type 210
Male thread:
1/2"
with hose screw connection
Product number:
3026013000
Brass double nipple
Male thread:
1/4"
both sides male thread, flat sealing
Product number:
3360006000
Aluminium 45° elbow with one side rotatable Storz coupling and the other side fixed Storz coupling
NW:
110-A
Product number:
2150110045
Flange distributor fitting
NW:
159
2 x rectangular flange, 1 x male coupling system Perrot
Product number:
8449159150
Pipe nipple
Male thread:
1 1/4"
|
length (mm):
50
for weld on, with male thread
Product number:
8020032050
Flange transition piece
DN:
200
|
addition2:
8"
from DIN round flange to rectangular flange
Product number:
8022295200
PP-Bibcock ball valve type 210
Male thread:
3/4"
with hose screw connection
Product number:
3026019000
Steel rectangular flange
Outer-Ø (mm):
200 x 200
|
addition2:
6"
suitable for slurry gate flange valve
Product number:
8021170150
Pipe nipple
Male thread:
1 1/2"
|
length (mm):
50
for weld on, with male thread
Product number:
8020038050
Steel rectangular flange
Male thread:
8"
|
Outer-Ø (mm):
230 x 230
with welded on pipe nipple
Product number:
8023200000
PP-Bibcock ball valve type 210
Male thread:
1"
with hose screw connection
Product number:
3026025000
Tangit special cement
addition2:
tin 500 g
for PVC-U (hard). Surfaces must be cleaned with cleaner before bonding!
Product number:
4095000500
COBISINTEC 8 - Synthetic construction and industry hose 8 bar
Inner-Ø (mm):
52-C
|
Length (m):
20
suitable as construction site hose and for water duct. All-weather flat hose, rot-proof, abrasion-resistant and durable. Assembled with aluminium couplings system Storz with long tail.
Product number:
1048052020
Skip product gallery
Female coupling with crimped hose nozzle System Perrot
NW:
159
|
for hose (mm):
152
Product number:
2410159152
Male coupling with crimped hose nozzle System Perrot
NW:
159
|
for hose (mm):
152
Product number:
2415159152
Tension jaw clamps W4
Clamping range (mm):
174-187
wide-band clamp with open able bridge piece and with rounded clamp band edges
Product number:
1531174187

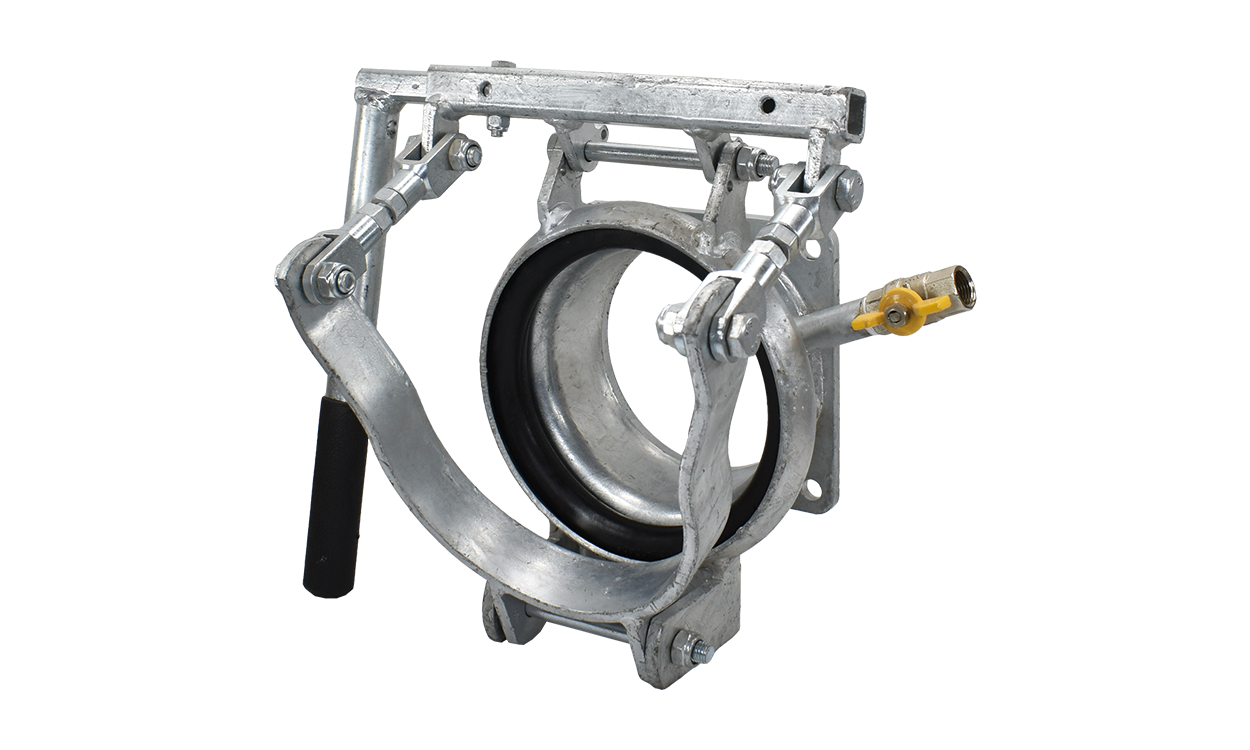

Suction quick coupler
NW:
159
short model, with welded on cardan bucket system Perrot and flange, lever mounted on the left, but can also be mounted on the right, galvanezed threaded spindle M10
Product number:
8463159150
Tangit special cement
addition2:
tin 500 g
for PVC-U (hard). Surfaces must be cleaned with cleaner before bonding!
Product number:
4095000500
Alu suction coupling with hose nozzle System Storz
NW:
52-C
|
for hose (mm):
40
Product number:
2103052040
Tip
COBIRAIN - Robust nitrile flat hose
Inner-Ø (mm):
152
|
Length (m):
Abschnitt
COBIRAIN - Robust nitrile flat hose optimal applicable for irrigation plants, industry and construction. Oil-, fuel resistant and resistant to diluted alkalis and diluted acids. High abrasion resistance due to longitudinal grooves in the outer cover. Universal flat hose with high tear resistance. Aging, UV and ozone resistant.
Product number:
1035152000abs

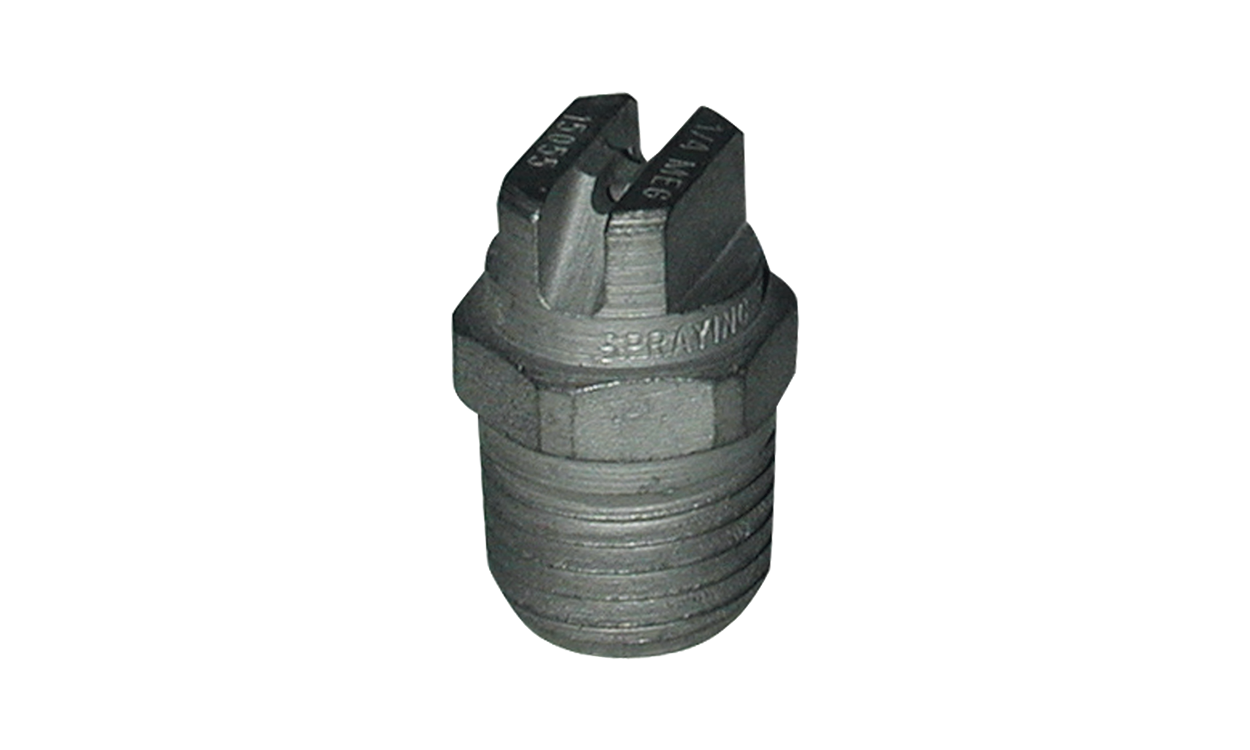

High pressure nozzle
