Manometer 50 mm housing for pressure regulator, connection 1/4" male thread rear
indicating range (bar):
0/+10
Bourdon tube pressure gauge for liquid and gaseous media, type dry.
Product number:
3250006000
Manometer 63 mm housing, connection 1/4" male thread left
indicating range (bar):
-1/+1,5
|
red marking:
-0,5/+0,5
Bourdon tube pressure gauge for liquid and gaseous media, type dry. With 2 red markers in the display area.
Product number:
8110006005
Manometer 63 mm housing, connection 1/4" male thread bottom
indicating range (bar):
-1/+1,5
|
red marking:
-0,5/+0,5
Bourdon tube pressure gauge for liquid and gaseous media, type dry. With 2 red markers in the display area.
Product number:
8112006005
Glycerin-filled manometer 63 mm housing, connection 1/4" male thread bottom
indicating range (bar):
-1/+1,5
|
red marking:
-0,5/+0,5
Bourdon tube pressure gauge for liquid and gaseous media, filled with glycerin. With 2 red markers in the display area.
Product number:
8113006005
Manometer 80 mm housing, connection 1/2" male thread bottom
indicating range (bar):
-1/+1,5
|
red marking:
-0,5/+0,5
Bourdon tube pressure gauge for liquid and gaseous media, type dry. With 2 red markers in the display area.
Product number:
8114013005
Manometer 63 mm housing, connection 1/4" male thread bottom
indicating range (bar):
-1/0
Bourdon tube pressure gauge for liquid and gaseous media, type dry.
Product number:
8115006000
Manometer 100 mm housing, connection 1/2" male thread bottom
indicating range (bar):
-1/0
Bourdon tube pressure gauge for liquid and gaseous media, type dry.
Product number:
8116013000
Glycerin-filled manometer 63 mm housing, connection 1/4" male thread bottom
indicating range (bar):
-1/0
Bourdon tube pressure gauge for liquid and gaseous media, filled with glycerin.
Product number:
8117006000
Glycerin-filled manometer 80 mm housing, connection 1/2" male thread bottom
indicating range (bar):
-1/+1,5
Bourdon tube pressure gauge for liquid and gaseous media, filled with glycerin. With 2 red markers in the display area.
Product number:
8118013005

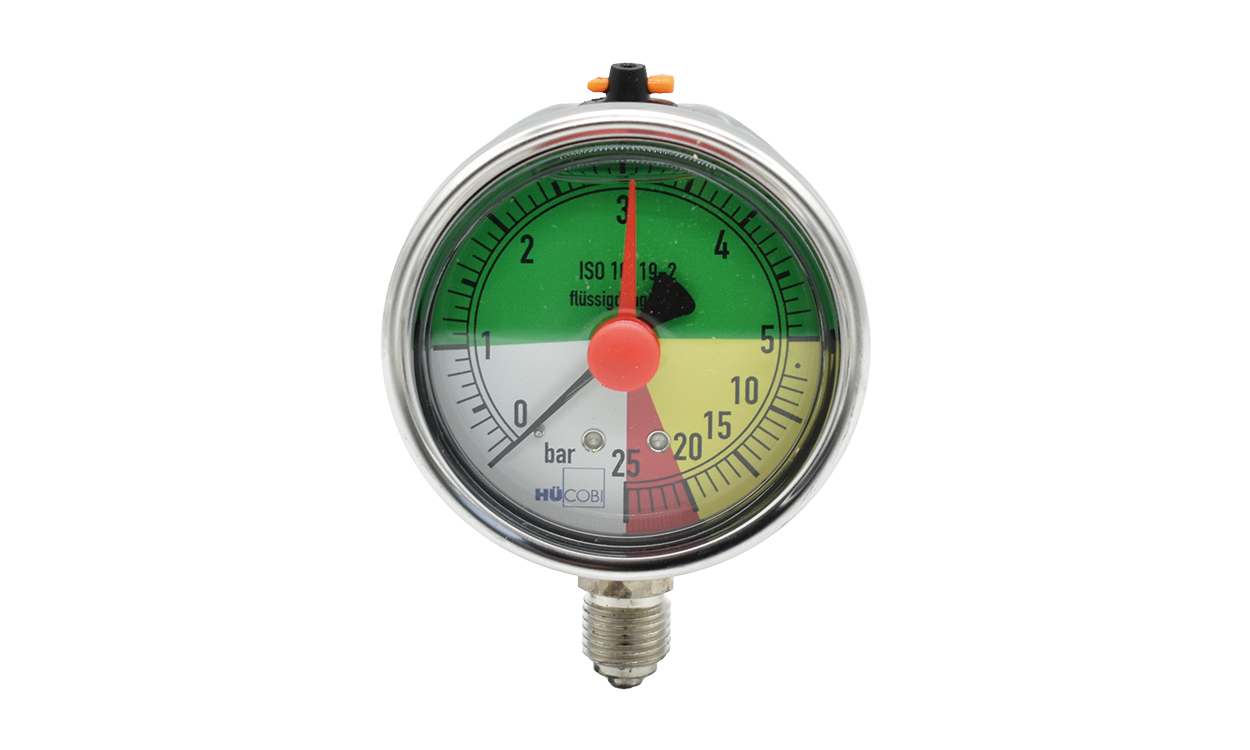

Glycerin-filled manometer 63 mm housing for field sprayers, connection 1/4" male thread bottom
Male thread:
1/4"
|
indicating range (bar):
0/+5/+25
Bourdon tube pressure gauge for liquid and gaseous media, filled with glycerin. With green, yellow, and red sectors.
Product number:
8120006025

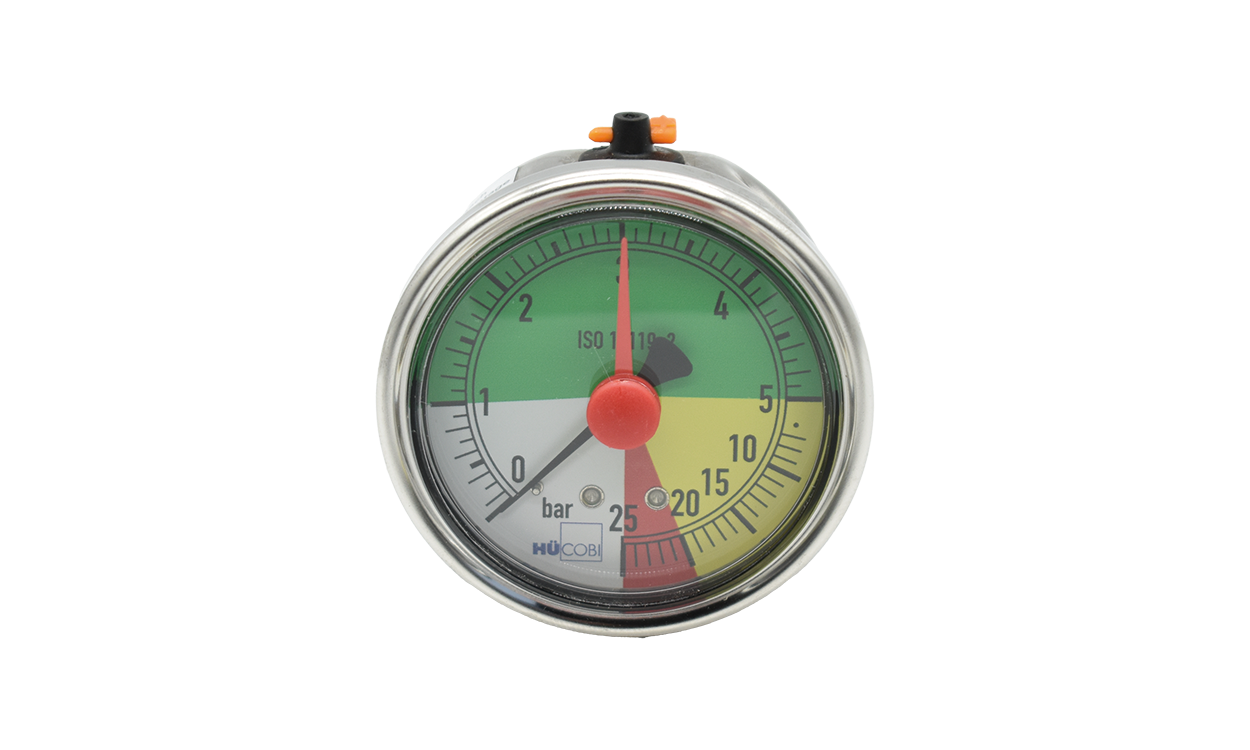

Glycerin-filled manometer 63 mm housing for field sprayers, connection 1/4" male thread rear
Male thread:
1/4"
|
indicating range (bar):
0/+5/+25
Bourdon tube pressure gauge for liquid and gaseous media, filled with glycerin. With green, yellow, and red sectors.
Product number:
8121006025

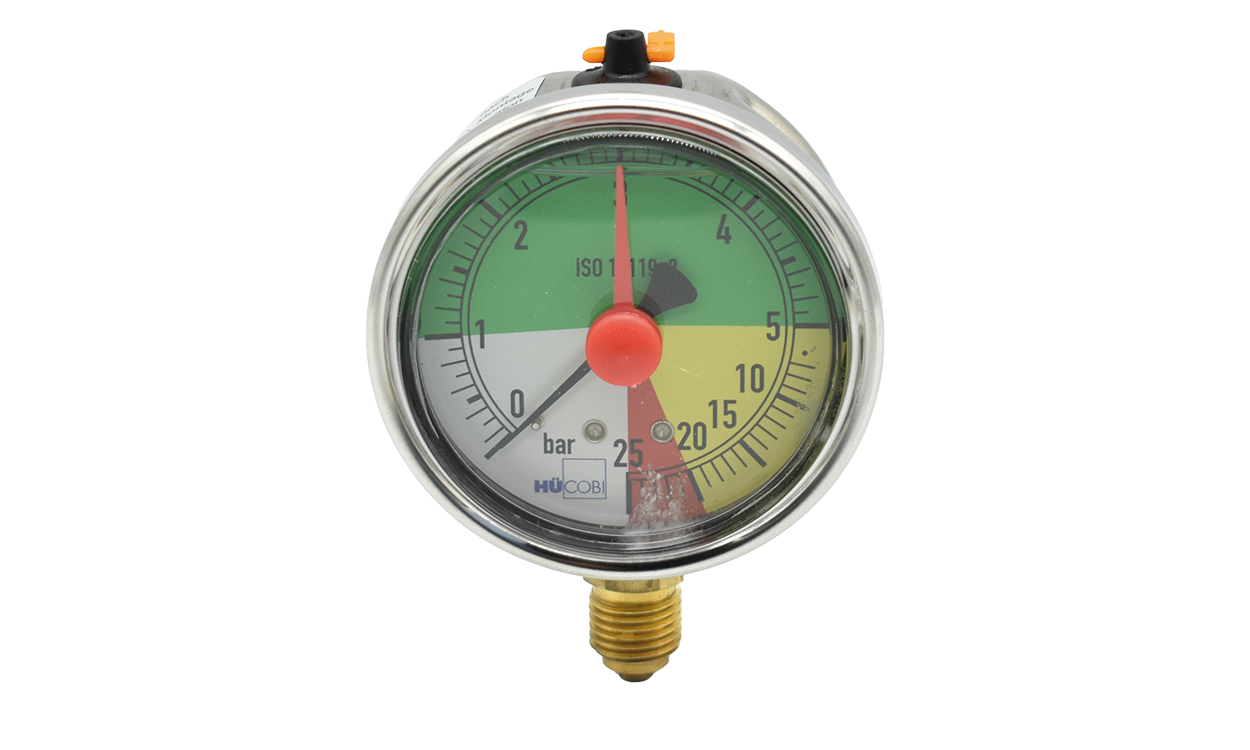

Glycerin-filled manometer 63 mm housing for field sprayers, connection 1/4" male thread bottom
Male thread:
1/4"
|
indicating range (bar):
0/+5/+25
For field sprayers, resistant to liquid fertilizers. Bourdon tube pressure gauge for liquid and gaseous media, filled with glycerin. With green, yellow, and red sectors.
Product number:
8122006025

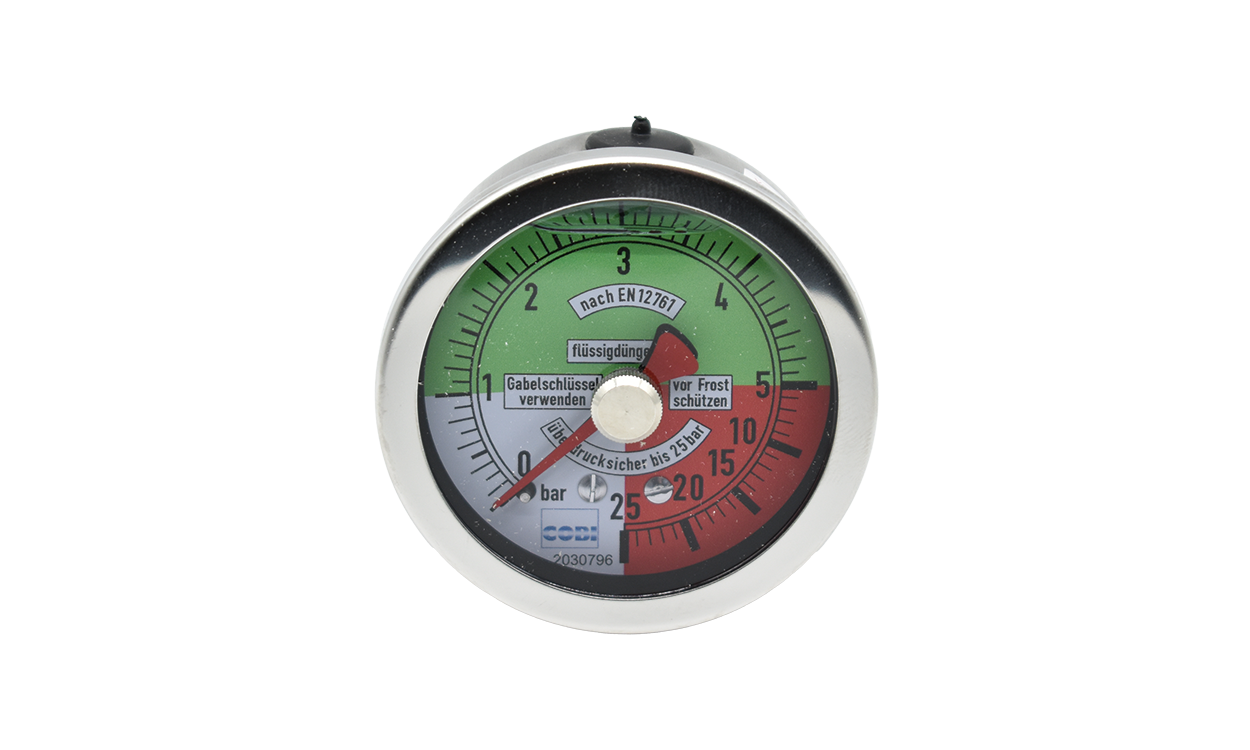

Glycerin-filled manometer 63 mm housing for field sprayers, connection 1/4" male thread rear
Male thread:
1/4"
|
indicating range (bar):
0/+5/+25
For field sprayers, resistant to liquid fertilizers. Bourdon tube pressure gauge for liquid and gaseous media, filled with glycerin. With green and red sectors.
Product number:
8123006025
Manometer 63 mm housing, connection 1/4" male thread rear
indicating range (bar):
-1/0
Bourdon tube pressure gauge for liquid and gaseous media, type dry.
Product number:
8126006000
Glycerin-filled manometer 63 mm housing, connection 1/4" male thread rear
indicating range (bar):
0/+2,5
Bourdon tube pressure gauge for liquid and gaseous media, filled with glycerin.
Product number:
8129006002
Protective cap for manometer 63 mm housing, bottom connection
addition2:
for manometer Ø 63 mm
shock protection for manometer, can be used vertically and horizontally
Product number:
8135063000
