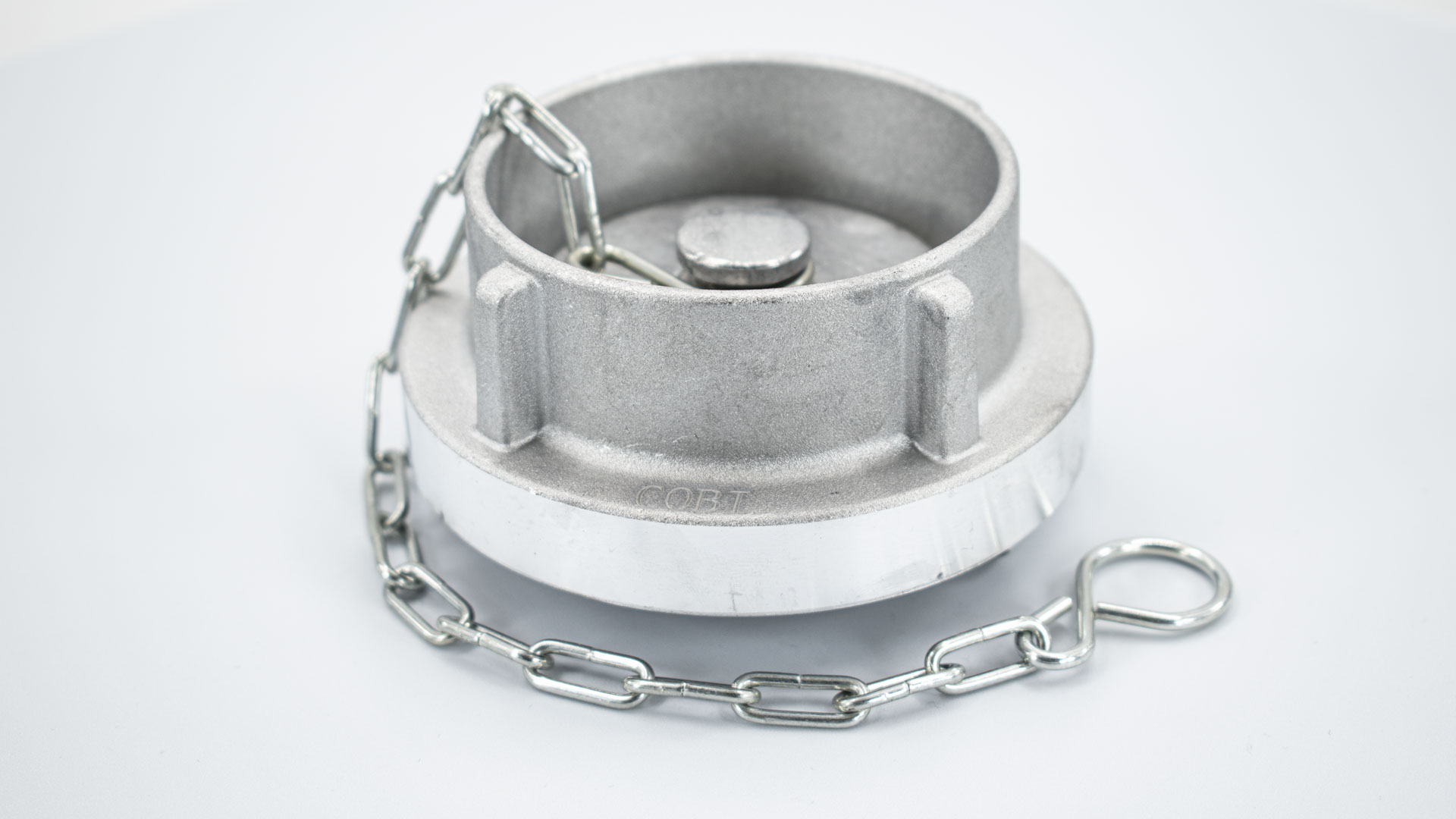

Alu blind coupling Type I System Storz
Product information "Alu blind coupling Type I System Storz"
with chain
| Gasket: | nitrile rubber |
|---|---|
| Material: | aluminium |
| NW | Unit | knag distance (mm) | Product Number | Delivery Time | |
|---|---|---|---|---|---|
| 52-C | piece | 66 | 2114052000 | ||
| 75-B | piece | 89 | 2114075000 | ||
| 110-A | piece | 133 | 2114110000 |
Product data sheet
