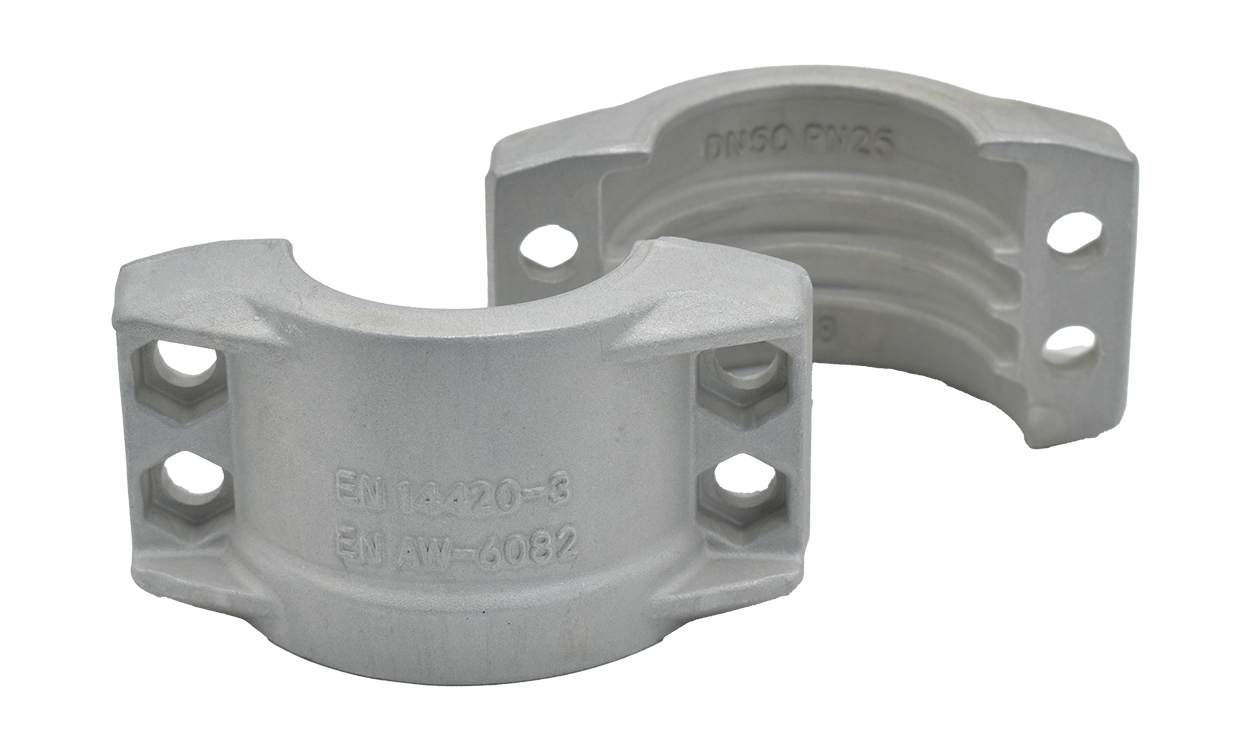

Alu clamping shells EN 14420-3
Product information "Alu clamping shells EN 14420-3"
| Certification: | EN 14420-3 |
|---|---|
| Material: | aluminium |
| for hose x wall thickness (mm) | Clamping range (mm) | Unit | Product Number | Delivery Time | |
|---|---|---|---|---|---|
| 19 x 6 | 30-33 | piece | 2070019006 | ||
| 25 x 6 | 36-39 | piece | 2070025006 | ||
| 32 x 6 | 43-46 | piece | 2070032006 | ||
| 38 x 6 | 50-52 | piece | 2070038006 | ||
| 50 x 5 | 59-61 | piece | 2070050005 | ||
| 50 x 6 | 61-63 | piece | 2070050006 | ||
| 50 x 8 | 64-67 | piece | 2070050008 | ||
| 65 x 7 | 78-82 | piece | 2070063008 | ||
| 75 x 6 | 86-88 | piece | 2070075006 | ||
| 75 x 8 | 89-93 | piece | 2070075008 | ||
| 80 x 8 | 94-97 | piece | 2070080008 | ||
| 100 x 6 | 112-114 | piece | 2070100006 | ||
| 100 x 8 | 114-119 | piece | 2070100008 | ||
| 100 x 10 | 118-122 | piece | 2070100010 | ||
| 100 x 12 | 122-126 | piece | 2070100012 | ||
| 125 x 10 | 143-148 | piece | 2070125010 | ||
| 150 x 10 | 168-174 | piece | 2070150010 |
Product data sheet
