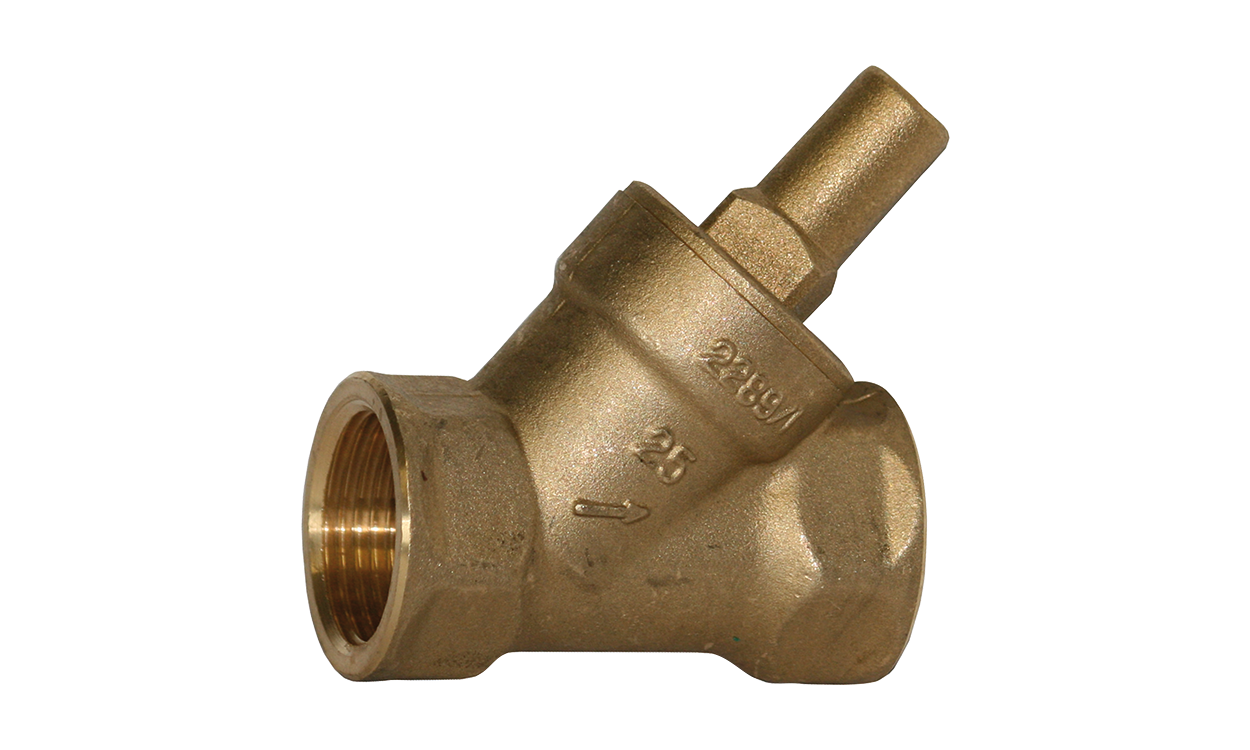

Brass non-return valve
Product information "Brass non-return valve"
both sides female thread, with spring loaded tape up to 1” open pressure 0,1 bar and by 2” open pressure 0,2 bar
| Material: | brass |
|---|
| Female thread | WP (bar) | Product Number | Delivery Time | |
|---|---|---|---|---|
| 1/2" | 10 | 3220013000 | ||
| 3/4" | 10 | 3220019000 | ||
| 1" | 10 | 3220025000 | ||
| 1 1/4" | 10 | 3220032000 | ||
| 1 1/2" | 10 | 3220038000 | ||
| 2" | 10 | 3220050000 |
Product data sheet
