Brass sleeve ball valve for potable water
Product information "Brass sleeve ball valve for potable water"
both sides female thread
with full bore, useable for potable water according to DIN EN 13828 and DVGW-W 570
| Ball: | brass hard chromium-plated |
|---|---|
| Casing: | brass chromium-plated |
| Gasket: | PTFE |
| Handle: | steel, coated, green |
| Temperature range: | -20°C up to +150°C |
| Female thread | overall length (mm) | thread length (mm) | bore (mm) | WP (bar) | Product Number | Delivery Time | |
|---|---|---|---|---|---|---|---|
| 1/4" | 49,5 | 11 | 10 | 50 | 3038006000 | ||
| 3/8" | 52,4 | 11,4 | 10 | 50 | 3038010000 | ||
| 1/2" | 61 | 15 | 15 | 50 | 3038013000 | ||
| 3/4" | 68 | 16,3 | 20 | 40 | 3038019000 | ||
| 1" | 85 | 19,1 | 25 | 40 | 3038025000 | ||
| 1 1/4" | 99,5 | 21,4 | 32 | 30 | 3038032000 | ||
| 1 1/2" | 109 | 21,4 | 40 | 30 | 3038038000 | ||
| 2" | 130 | 25,7 | 50 | 25 | 3038050000 |
Product data sheet
Skip product gallery
COBIAQUA PU FLAT - Potable flat hose with Storz Couplings
High-quality flat drinking water hose, ideally suited for potable water supply applications, e.g. as a drinking water transfer hose or emergency supply hose. The drinking water hose is fully fitted with Storz system couplings. The connectors are made of brass, and the lugs are made of aluminium. Equipped with blue, drinking-water-approved seals and stainless steel wire binding. Features: - Suitable for use in drinking water supply - Resistant to oil, petrol, and chemicals - Ageing, ozone, and UV resistant - Robust design for professional use
Product number:
MASTER-1020
Skip product gallery
Stainless steel clamping shells EN 14420-3
for hose x wall thickness (mm):
80 x 8
for inclusion of couplings with smooth hose connections and safety collar, two-part, complete with hexagon socket screw and nut
Product number:
2072080008
Female coupling with crimped hose nozzle System Perrot
NW:
159
|
for hose (mm):
159
Product number:
2410159159
Male coupling with crimped hose nozzle System Perrot
NW:
159
|
for hose (mm):
110
Product number:
2415159110
Male coupling with crimped hose nozzle System Perrot
NW:
159
|
for hose (mm):
127
Product number:
2415159127
Pipe double nipple no. 23 galvanized
Male thread:
1 1/4"
|
length (mm):
180
both sides male thread according to DIN 2982
Product number:
3750032180
Pipe double nipple no. 23 galvanized
Male thread:
2"
|
length (mm):
40
both sides male thread according to DIN 2982
Product number:
3750050040
Pipe double nipple no. 23 galvanized
Male thread:
1"
|
length (mm):
40
both sides male thread according to DIN 2982
Product number:
3750025040
Pipe double nipple no. 23 galvanized
Male thread:
1"
|
length (mm):
200
both sides male thread according to DIN 2982
Product number:
3750025200
Safety clamp FS System Storz
NW:
110-A / 75-B
to secure hose couplings against independent uncoupling
Product number:
2143110075
Butterfly valve PN 10/16
DN:
50
Cast iron adapter flange valve with raster handle
Product number:
3071050000
Pipe double nipple no. 23 galvanized
Male thread:
1/4"
|
length (mm):
100
both sides male thread according to DIN 2982
Product number:
3750006100
Female coupling with crimped hose nozzle System Perrot
NW:
133
|
for hose (mm):
133
Product number:
2410133133
COBITROM - Silo conveying hose
Inner-Ø (mm):
75
|
Length (m):
Abschnitt
suitable for abrasive media, grain, cement, powder. Abrasion-proof rubber conveying hose.
Product number:
1320075009abs
PP hose nozzle 90° two-part
Female thread:
1 1/4"
|
hose nozzle (mm):
32
bent with female thread and nozzle
Product number:
4968032032
COBIAIR - PVC compressed air hose
Inner-Ø (mm):
13
|
Length (m):
50
fabric hose suitable for air, water and food, conditional oil-and chemical-resistant. Suitable for hydraulic systems with low pressure.
Product number:
1201013000
Pipe double nipple no. 23 black
Male thread:
2"
|
length (mm):
80
both sides male thread according to DIN 2982
Product number:
3850050080
Stainless steel elbow 90°
female thread / male thread:
3/4"
one side female thread, other side male thread
Product number:
5075019000
COBITROM - Silo conveying hose
Inner-Ø (mm):
100
|
Length (m):
20
suitable for abrasive media, grain, cement, powder. Abrasion-proof rubber conveying hose.
Product number:
1320100010
COBITROM - Silo conveying hose
Inner-Ø (mm):
100
|
Length (m):
Abschnitt
suitable for abrasive media, grain, cement, powder. Abrasion-proof rubber conveying hose.
Product number:
1320100010abs
COBITON 10 SP T - Shotcreting hose
Inner-Ø (mm):
38
|
Length (m):
40
jet hose for dry-concrete-shotmachines, water engineering, tunneling, mining and for building. Advantage: extremely wear-resistant, big core, horizontal solid and streamlined, for all conventional fittings.
Product number:
1338038000
Lever set, heavy model
addition2:
8"
for mounting on slurry gate valve. Especially for small spaces.
Product number:
8012200000
Brass sleeve ball valve type COBI
Female thread:
1/4"
both sides female thread
with full bore, useable for not aggressive media
Product number:
3030006000
Brass sleeve ball valve type COBI
Female thread:
3/4"
both sides female thread
with full bore, useable for not aggressive media
Product number:
3030019000
COBI Tension jaw clamps W1
Clamping range (mm):
131-139
wide-band clamp with rounded clamp band edgesScrew with a full bolt
Product number:
1521131139
Male coupling with crimped hose nozzle System Perrot
NW:
159
|
for hose (mm):
50
Product number:
2415159050
Brass sleeve ball valve type COBI
female thread / male thread:
3"
one side female thread, other side male thread
with full bore, useable for not aggressive media
Product number:
3035075000
Reducing piece from female to male coupling System Perrot
NW:
female 108 x male 50
Product number:
2427108050
COBIWATER PLUS - EPDM-waterhose, multipurpose hose 20 bar
Inner-Ø (mm):
19
|
Length (m):
40
highly flexible service water hose for cold and hot water for particularly high requirements. Resistant to chemicals with low aggressiveness. Aging and weather resistant.
Product number:
1006019000
COBI Tension jaw clamps W1
Clamping range (mm):
188-200
wide-band clamp with rounded clamp band edgesScrew with a full bolt
Product number:
1521188200
Male coupling as blind coupling type DP - System Kamlok stainless steel
NW:
2"
Product number:
2179050000
COBI Tension jaw clamps W1
Clamping range (mm):
162-174
wide-band clamp with rounded clamp band edgesScrew with a full bolt
Product number:
1521162174
COBIFLAT M - Middle-heavy PVC flat hose
Inner-Ø (mm):
152
|
Length (m):
Abschnitt
Universally applicable medium-heavy flat hose for construction, industry and agriculture. Ideally suited as a pressure hose for irrigation. As an inlet and outlet hose for water and other media, can be rolled up flat. Robust and durable quality.
Product number:
1031152000abs
Male coupling with hose connection type E - System Kamlok Aluminium
NW:
4"
Product number:
2162100000
COBIKANTEX 250 - Rubber sewer cleaning hose 250 bar
Inner-Ø (mm):
32
|
Length (m):
80
lightweight, high flexible and extremely abrasion-resistant rubber sewer cleaning hose. The light weight and low bending radius allow extremely easy handling. The external cover is smooth and very resistant to abrasion and to oil and weathering effects. Pressed with fittings on the one side AGR (MT) on the other side DKR (FT).
Product number:
1481032080
Male coupling with crimped hose nozzle System Perrot
NW:
133
|
for hose (mm):
133
Product number:
2415133133
Brass sleeve ball valve type COBI
female thread / male thread:
2 1/2"
one side female thread, other side male thread
with full bore, useable for not aggressive media
Product number:
3035063000
Brass sleeve ball valve type COBI
female thread / male thread:
2"
one side female thread, other side male thread
with full bore, useable for not aggressive media
Product number:
3035050000
Brass bibcock ball valve
Male thread:
3/4"
with hose screw connection, useable for not aggressive media
Product number:
3092019000
Concentric welding reducing piece
Outer-Ø (mm):
133,0 x 4,0 / 108,0 x 3,6
Product number:
2335133108
Malleable cast iron Elbow 90° Nr. 90
Female thread:
1 1/2"
both sides female thread
Product number:
3709038000
Male coupling with crimped hose nozzle System Perrot
NW:
108
|
for hose (mm):
76
Product number:
2415108076
Female coupling with hose nozzle italian coupling system
NW:
120
|
for hose (mm):
110
Product number:
8302120110
Male coupling with hose connection type E - System Kamlok stainless steel
NW:
1 1/2"
Product number:
2172038000
COBITROM - Silo conveying hose
Inner-Ø (mm):
80
|
Length (m):
Abschnitt
suitable for abrasive media, grain, cement, powder. Abrasion-proof rubber conveying hose.
Product number:
1320080010abs
Skip product gallery
Brass sleeve ball valve type industry
Female thread:
1 1/4"
both sides female thread
with full bore, useable for not aggressive media
Product number:
3031032000

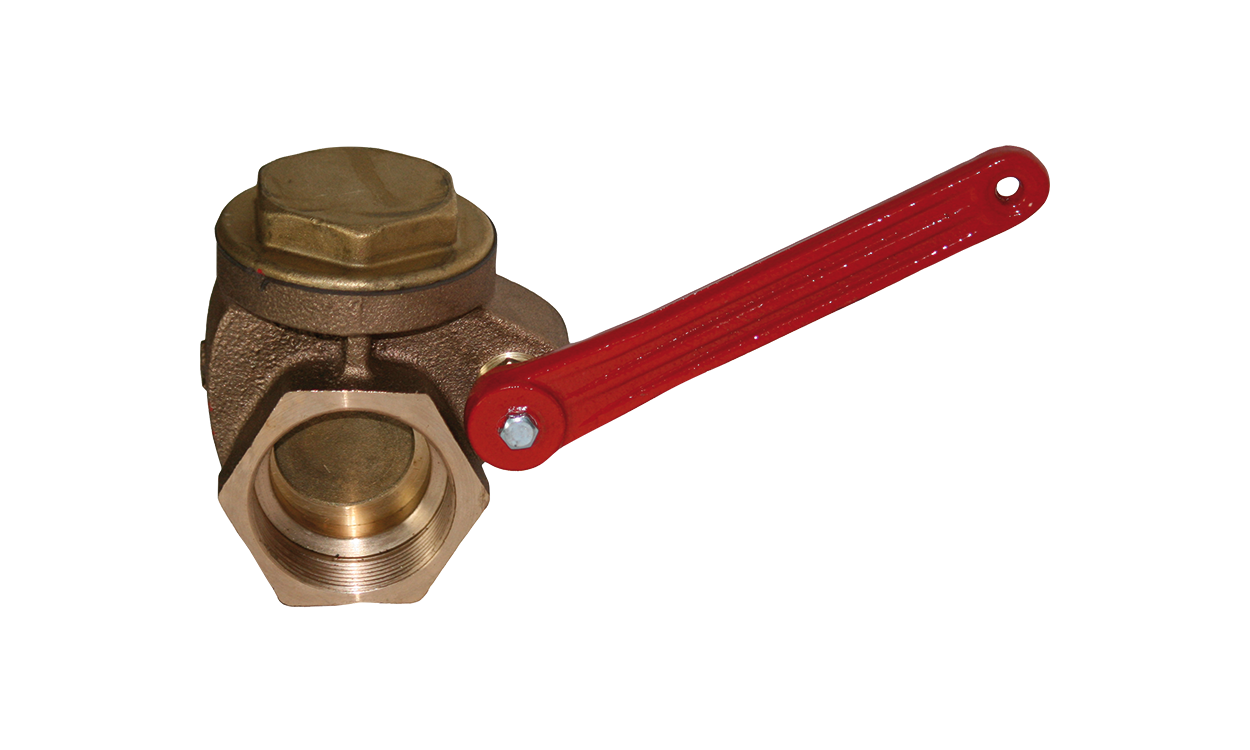

Red cast iron sleeve quick valve
