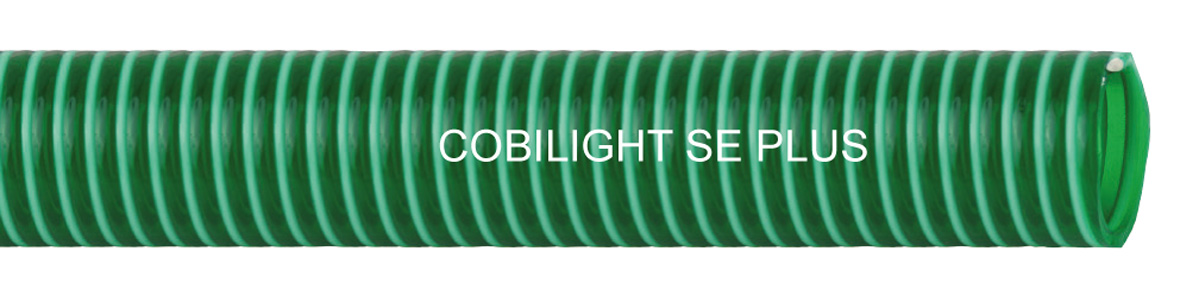

COBILIGHT SE PLUS - High-flexible PVC suction and pressure hose
Product information "COBILIGHT SE PLUS - High-flexible PVC suction and pressure hose"
| Colour: | green transparent |
|---|---|
| Structure: | synthetic spiral hose, green transparent, inside smooth with embedded white hard PVC spiral, outside light corrugated |
| Temperature range: | -25°C up to +60°C |
| Inner-Ø (mm) | Length (m) | Unit | Vacuum (m WC) | weight (g) | wall thickness (mm) | WP (bar) | bending radius (mm) | Outer-Ø (mm) | Product Number | Delivery Time | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 40 | 50 | meter | 7 | 600 | 4,2 | 6 | 200 | 48,4 | 1063040000 | ||
| 45 | 50 | meter | 7 | 700 | 4 | 5,5 | 225 | 53 | 1063045000 | ||
| 50 | 50 | meter | 7 | 850 | 4 | 5 | 250 | 58 | 1063050000 |
Product data sheet
Last Seen
both sides male thread according to DIN 2982
suitable for air containing lubricants and water, for heavy applications
exhaust ventilation and transport of abrasive, granulate figured media. Microbes and hydrolysis resistant.
for the special integration of flat hoses with clamping rings, with short hose nozzle
for water, waste water, food, alcohol up to 20%, sewage, for groundwater lowering and machine construction also for agriculture and construction suitable.
without outlet both sides with flange DIN PN10 and hole distance 150 mm at 6“ and 180 mm at 8“
with rubber ring in the flange surface
