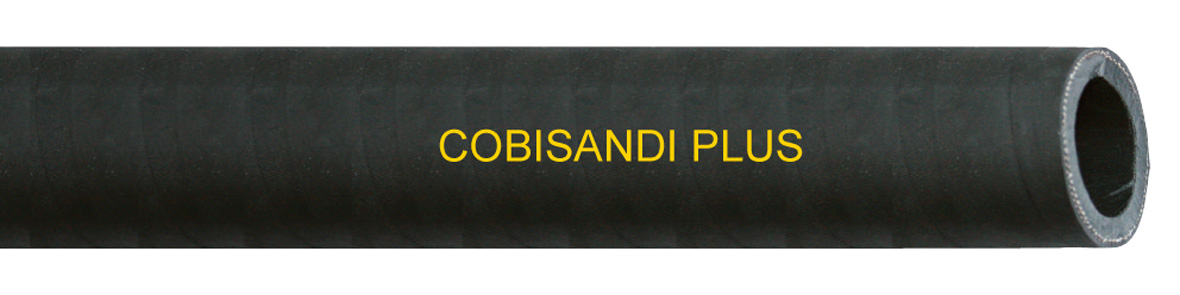

COBISANDI PLUS - Sandblast ventilation hose
Product information "COBISANDI PLUS - Sandblast ventilation hose"
| Colour: | black |
|---|---|
| External cover: | SBR/EPDM, black, smooth, fabric figured |
| Inlays: | textile inlay, copper braid |
| Internal lining: | NR/BR, black, smooth, conductive |
| Ohmic resistance: | internal lining less than 10 high 6 Ω, external cover less than 10 high 8 Ω |
| Safety: | 3:1 |
| Temperature range: | -40°C up to +70°C |
| Inner-Ø (mm) | Length (m) | Unit | WP (bar) | wall thickness (mm) | BP (bar) | bending radius (mm) | Outer-Ø (mm) | weight (g) | Product Number | Delivery Time | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 40 | meter | 12 | 7 | 36 | 150 | 30 | 571 | 1379016000 | ||
| 19 | 40 | meter | 12 | 7 | 36 | 190 | 33 | 647 | 1379019000 | ||
| 25 | 40 | meter | 12 | 7 | 36 | 250 | 39 | 806 | 1379025000 | ||
| 32 | 40 | meter | 12 | 8 | 36 | 320 | 48 | 1150 | 1379032000 | ||
| 38 | 40 | meter | 12 | 9 | 36 | 380 | 56 | 1525 | 1379038000 |
Product data sheet
