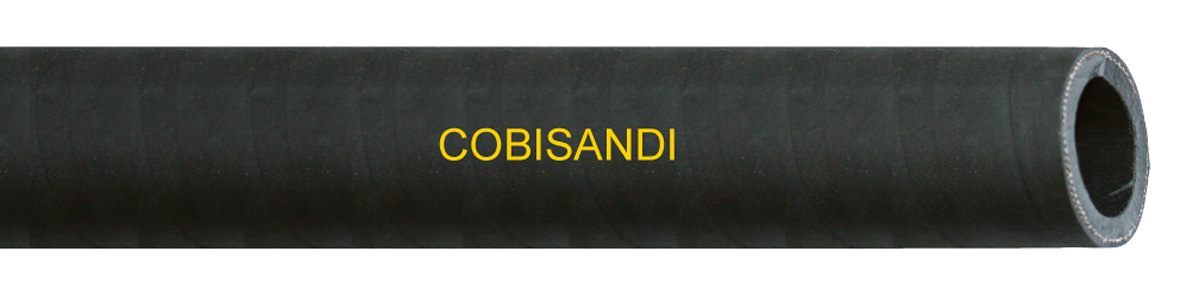

COBISANDI - Sandblast ventilation hose
Product information "COBISANDI - Sandblast ventilation hose"
flexible sandblast ventilation hose for high abrasiv media as quartz sand, steel gravel, corundum, glass etc.
| Colour: | black |
|---|---|
| External cover: | SBR, black, smooth, fabric figured |
| Inlays: | textile inlay |
| Internal lining: | NR/SBR, black, smooth |
| Ohmic resistance: | less than 10 high 6 Ω |
| Safety: | 3:1 |
| Temperature range: | -30°C up to +85°C |
| Inner-Ø (mm) | Length (m) | Unit | WP (bar) | BP (bar) | weight (g) | wall thickness (mm) | Outer-Ø (mm) | bending radius (mm) | Product Number | Delivery Time | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 25 | 40 | meter | 12 | 36 | 800 | 7 | 39 | 250 | 1339025000 | ||
| 32 | 40 | meter | 12 | 36 | 1100 | 8 | 48 | 320 | 1339032000 | ||
| 38 | 40 | meter | 12 | 36 | 1500 | 10 | 58 | 380 | 1339038000 | ||
| 63 | 40 | meter | 12 | 36 | 3050 | 12 | 87 | 504 | 1339063000 |
Product data sheet
