COBISUPERFLEX TOP - High flexible rubber spiral suction and conveying hose with spiral free cuffs
Product information "COBISUPERFLEX TOP - High flexible rubber spiral suction and conveying hose with spiral free cuffs"
with high abrasion-proof internal lining, suitable for abrasive media such as sand, grit, stones, fly ash, blasting agents. Both sides spiral free cuffs.
| Colour: | black |
|---|---|
| External cover: | NR/SBR, black, cord ribbed, electrical conductive, fabric figured |
| Inlays: | steel wire spiral, copper braid, textile inlay |
| Internal lining: | NR, black, smooth, electrical conductive |
| Ohmic resistance: | less than 10 high 6 Ω |
| Safety: | 3:1 |
| Temperature range: | -30°C up to +85°C |
| Inner-Ø (mm) | Length (m) | Unit | Vacuum (m WC) | weight (g) | WP (bar) | bending radius (mm) | Outer-Ø (mm) | wall thickness (mm) | Product Number | Delivery Time | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 40 | meter | 9 | 1430 | 4 | 150 | 64 | 7 | 1301050000 | ||
| 60 | 40 | meter | 9 | 1590 | 3 | 180 | 74 | 7 | 1301060000 | ||
| 76 | 40 | meter | 9 | 2380 | 3 | 230 | 92 | 8 | 1301076000 | ||
| 80 | 40 | meter | 9 | 2410 | 3 | 240 | 96 | 8 | 1301080000 | ||
| 80 | 5 | piece | 9 | 2410 | 3 | 240 | 96 | 8 | 1301080005 | ||
| 102 | 20 | meter | 9 | 3970 | 2 | 310 | 120 | 9 | 1301102000 | ||
| 102 | 5 | piece | 9 | 3970 | 2 | 310 | 120 | 9 | 1301102005 | ||
| 127 | 20 | meter | 9 | 4810 | 2 | 380 | 145 | 9 | 1301127000 | ||
| 127 | 5 | piece | 9 | 4810 | 2 | 380 | 145 | 9 | 1301127005 | ||
| 152 | 20 | meter | 9 | 6080 | 2 | 460 | 170 | 9 | 1301152000 | ||
| 152 | 5 | piece | 9 | 6080 | 2 | 460 | 170 | 9 | 1301152005 | ||
| 203 | 5 | piece | 9 | 9950 | 2 | 820 | 225 | 11 | 1301203005 |
Product data sheet
Skip product gallery
COBI Tension jaw clamps W1
Clamping range (mm):
140-148
wide-band clamp with rounded clamp band edgesScrew with a full bolt
Product number:
1521140148
COBIQUICK Clamping flange with rotated hose nozzle
NW:
5"
|
for hose (mm):
127
with rubber ring in the flange surface
Product number:
2551125000

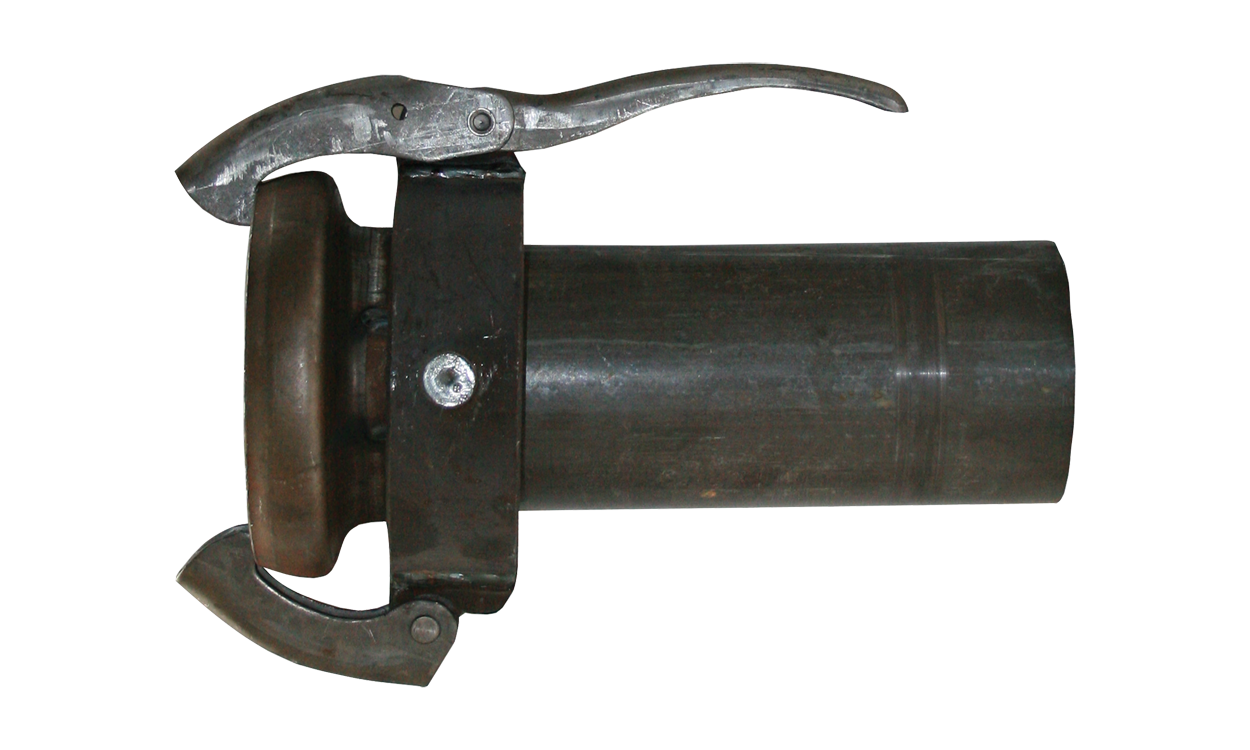

Male coupling with crimped hose nozzle System Perrot
