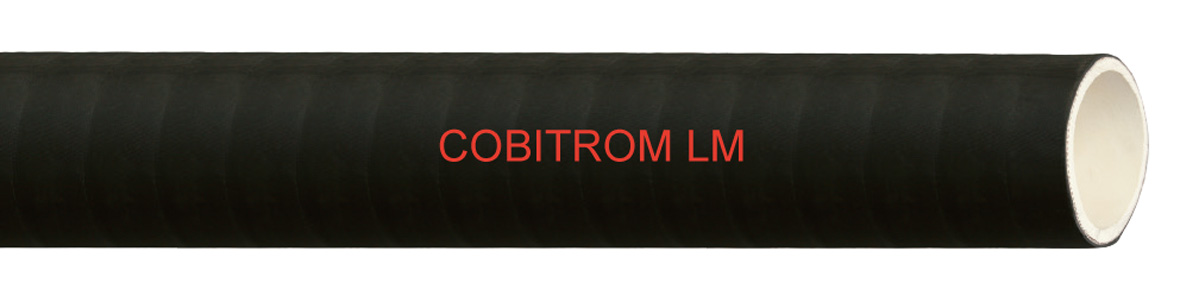

COBITROM LM - Food conveying hose for dry media
Product information "COBITROM LM - Food conveying hose for dry media"
suitable for grain, powder, animal feed, PVC granulates. High-grade and high abrasion-proof rubber conveying hose.
| Abrasion of lining: | ca. 90/100 mm³ |
|---|---|
| Certification: | FDA qualitiy, EU-regulation no. 1935/2004 |
| Colour: | black |
| External cover: | SBR, black, fabric figured |
| Inlays: | textile inlay, copper braid |
| Internal lining: | NR/SBR, white, smooth |
| Safety: | 3:1 |
| Temperature range: | -30°C up to +85°C, for short time sterilizable with steam up to max.+110 °C |
| Inner-Ø (mm) | Length (m) | weight (g) | Unit | Outer-Ø (mm) | wall thickness (mm) | bending radius (mm) | WP (bar) | Product Number | Delivery Time | |
|---|---|---|---|---|---|---|---|---|---|---|
| 75 | 40 | 2800 | meter | 93 | 9 | 600 | 7 | 1155075000 |
Product data sheet
Skip product gallery
Food coupling with union nut
NW coupling x for hose (mm):
DN80 x 75 mm
for shell-inclusion with safety collar
Product number:
2710075000
Food coupling with male thread
NW coupling x for hose (mm):
DN80 x 75 mm
for shell-inclusion with safety collar
Product number:
2715075000

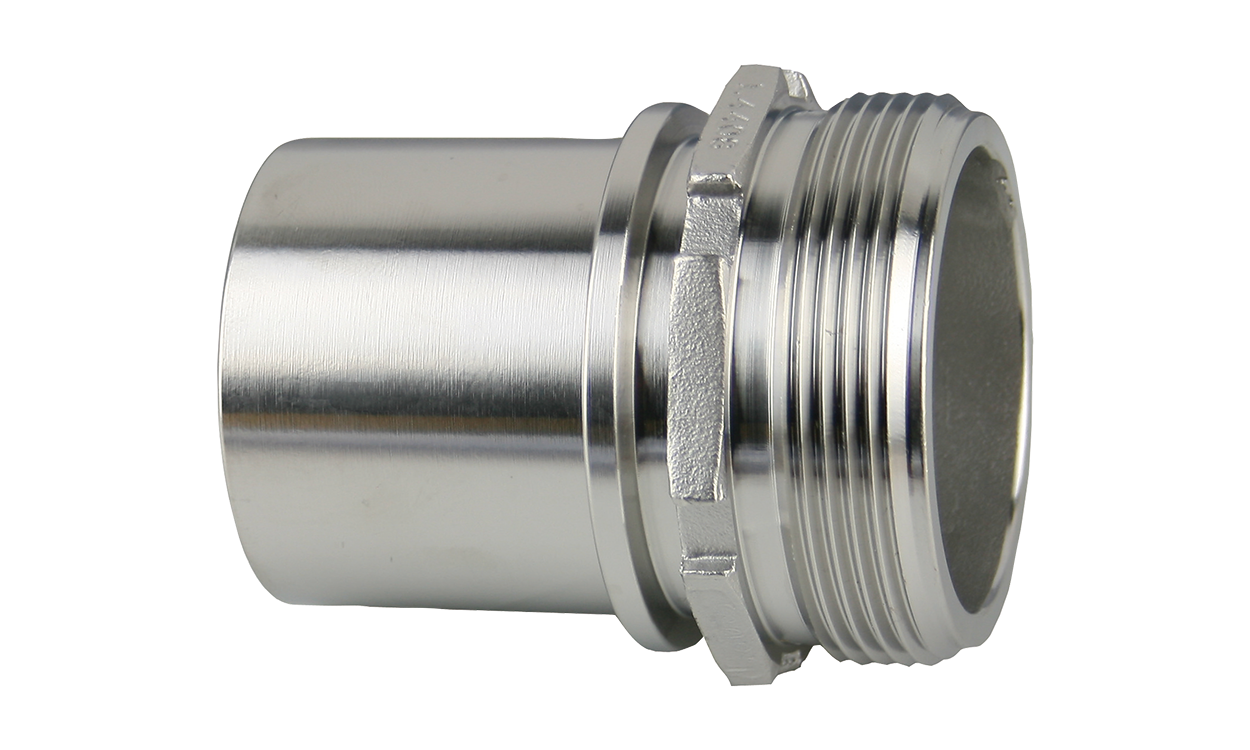

Stainless steel hose connection with male coupling
for hose (mm) x male thread:
75 x 3“ mt
for shell-inclusion, smooth hose connection with safety collar and male thread
Product number:
2057075075
Alu clamping shells EN 14420-3
for hose x wall thickness (mm):
75 x 8
for inclusion of couplings with smooth hose connections and safety collar, two-part, complete with hexagon socket screw and nut
Product number:
2070075008
Stainless steel press ferrule
for hose x wall thickness (mm):
75 x 8
for pressing the rubber hose with the coupling
Product number:
2082075000
Skip product gallery

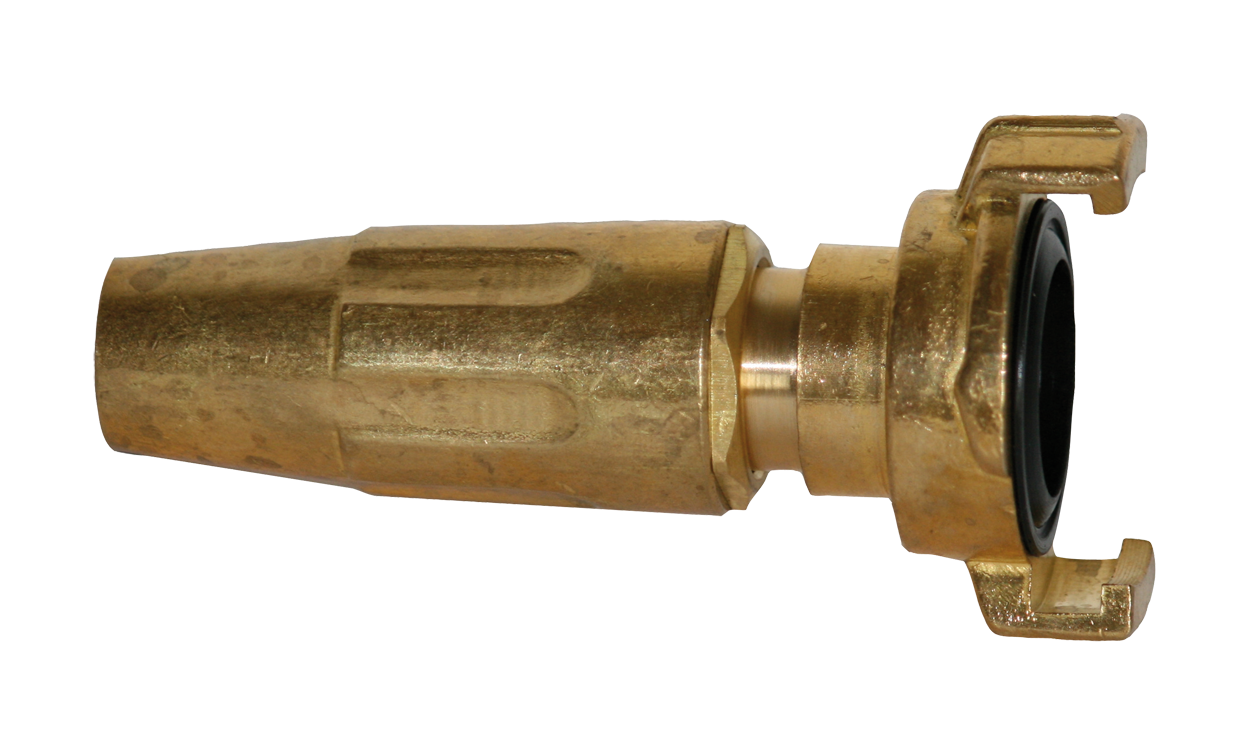

Brass spray nozzle with quick coupling System Geka
