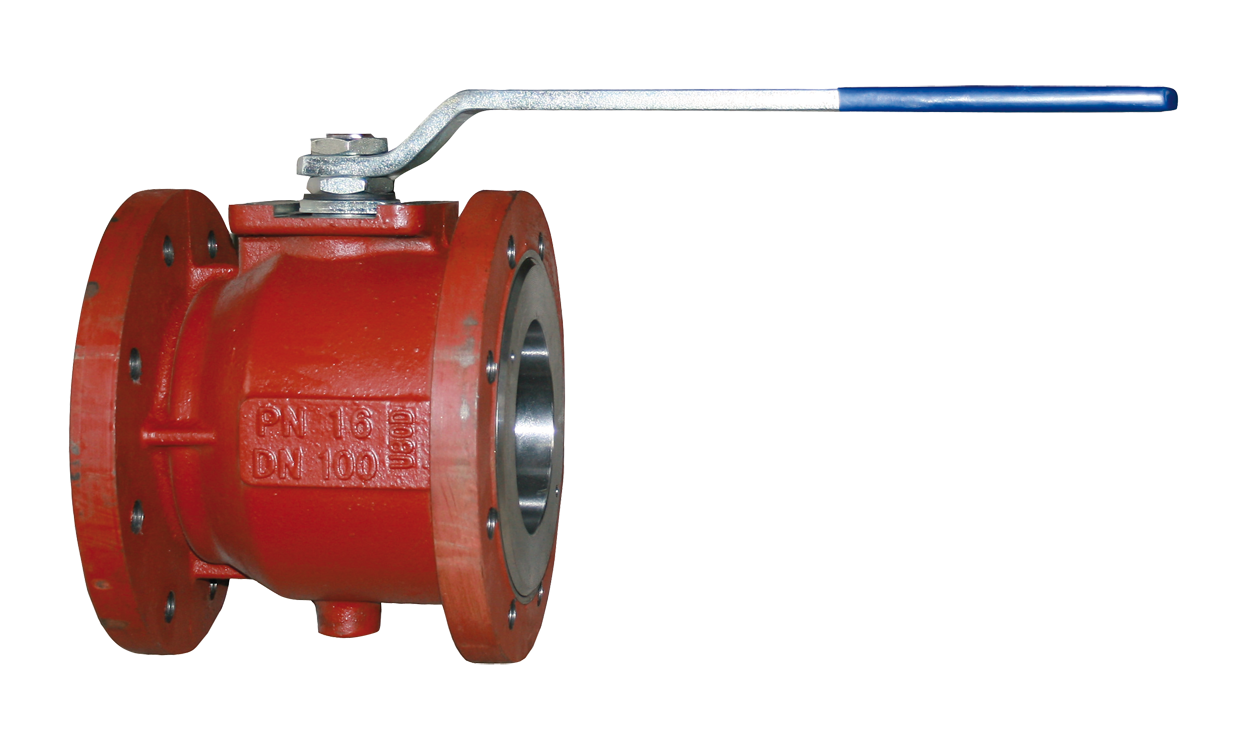

Flange ball valve
Product information "Flange ball valve"
| Ball: | stainless steel |
|---|---|
| Ballgasket: | teflon |
| Gasket: | perbunan |
| Handle: | steel, coated |
| Material: | grey cast iron |
| Nut: | brass MS 58 |
| Spindle: | brass MS 58 |
| Temperature range: | -10°C up to +120°C |
| DN | WP (bar) | DN | overall length (mm) | weight (kg) | Product Number | Delivery Time | |
|---|---|---|---|---|---|---|---|
| 80 | 16 | 80 | 180 | 14,1 | 3063080000 | ||
| 100 | 16 | 100 | 190 | 20 | 3063100000 | ||
| 125 | 16 | 125 | 200 | 30,4 | 3063125000 | ||
| 150 | 16 | 150 | 210 | 44,5 | 3063150000 |
Product data sheet
