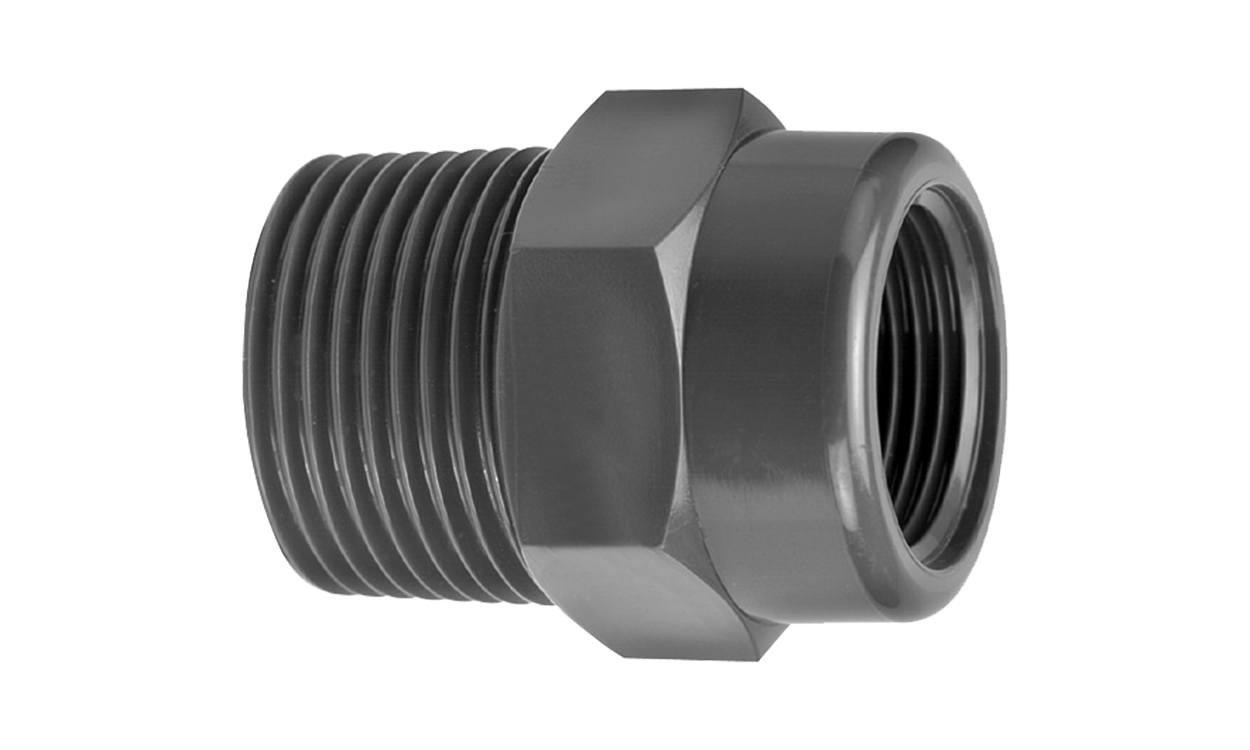

PVC adaptor socket
Product information "PVC adaptor socket"
| Material: | PVC-U |
|---|
| male thread / female thread | Packing unit (piece) | WP (bar) | Product Number | Delivery Time | |
|---|---|---|---|---|---|
| 1/4" x 3/8" | 100 | 10 | 4306006010 | ||
| 3/8" x 1/4" | 100 | 16 | 4306010006 | ||
| 3/8" x 1/2" | 100 | 10 | 4306010013 | ||
| 1/2" x 3/8" | 100 | 10 | 4306013010 | ||
| 1/2" x 1/2" | 50 | 10 | 4306013013 | ||
| 1/2" x 3/4" | 100 | 10 | 4306013019 | ||
| 3/4" x 1/2" | 100 | 10 | 4306019013 | ||
| 3/4" x 3/4" | 50 | 10 | 4306019019 | ||
| 3/4" x 1" | 100 | 10 | 4306019025 | ||
| 1" x 3/4" | 100 | 10 | 4306025019 | ||
| 1" x 1" | 90 | 10 | 4306025025 | ||
| 1" x 1 1/4" | 150 | 10 | 4306025032 | ||
| 1 1/4" x 1" | 150 | 10 | 4306032025 | ||
| 1 1/4" x 1 1/4" | 150 | 10 | 4306032032 | ||
| 1 1/4" x 1 1/2" | 100 | 10 | 4306032038 | ||
| 1 1/2" x 1 1/4" | 150 | 10 | 4306038032 | ||
| 1 1/2" x 1 1/2" | 100 | 10 | 4306038038 | ||
| 1 1/2" x 2" | 50 | 10 | 4306038050 | ||
| 2" x 2" | 50 | 10 | 4306050050 |
