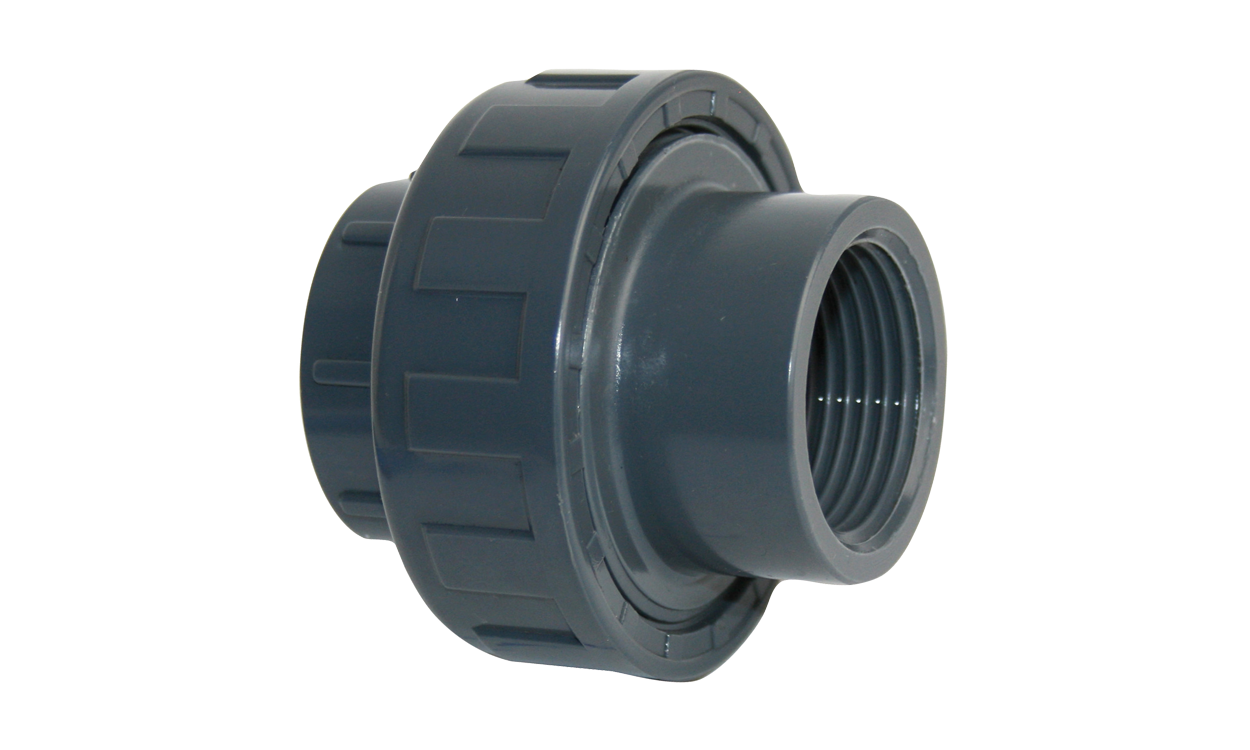

PVC adaptor union
Product information "PVC adaptor union"
| Material: | PVC-U |
|---|
| d | WP (bar) | Female thread | Packing unit (piece) | overall length (mm) | Product Number | Delivery Time | |
|---|---|---|---|---|---|---|---|
| 16 | 10 | 3/8" | 100 | 47 | 4545016010 | ||
| 20 | 10 | 1/2" | 100 | 47 | 4545020013 | ||
| 25 | 10 | 3/4" | 100 | 51 | 4545025019 | ||
| 32 | 10 | 1" | 100 | 60 | 4545032025 | ||
| 40 | 10 | 1 1/4" | 100 | 65 | 4545040032 | ||
| 50 | 10 | 1 1/2" | 72 | 82 | 4545050038 | ||
| 63 | 10 | 2" | 60 | 90 | 4545063050 | ||
| 75 | 10 | 2 1/2" | 12 | 122 | 4545075063 | ||
| 90 | 10 | 3" | 12 | 130 | 4545090075 | ||
| 110 | 10 | 4" | 12 | 142 | 4545110100 |
