PVC butterfly valve type VDL
Product information "PVC butterfly valve type VDL"

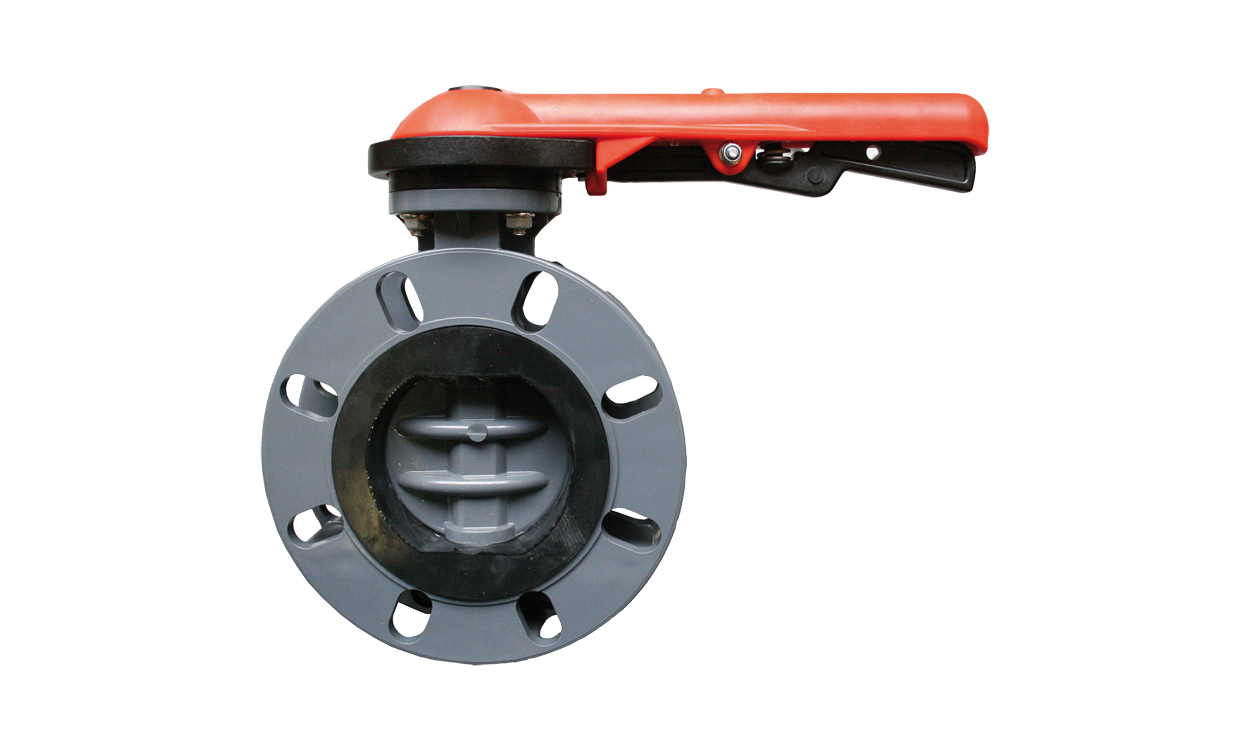

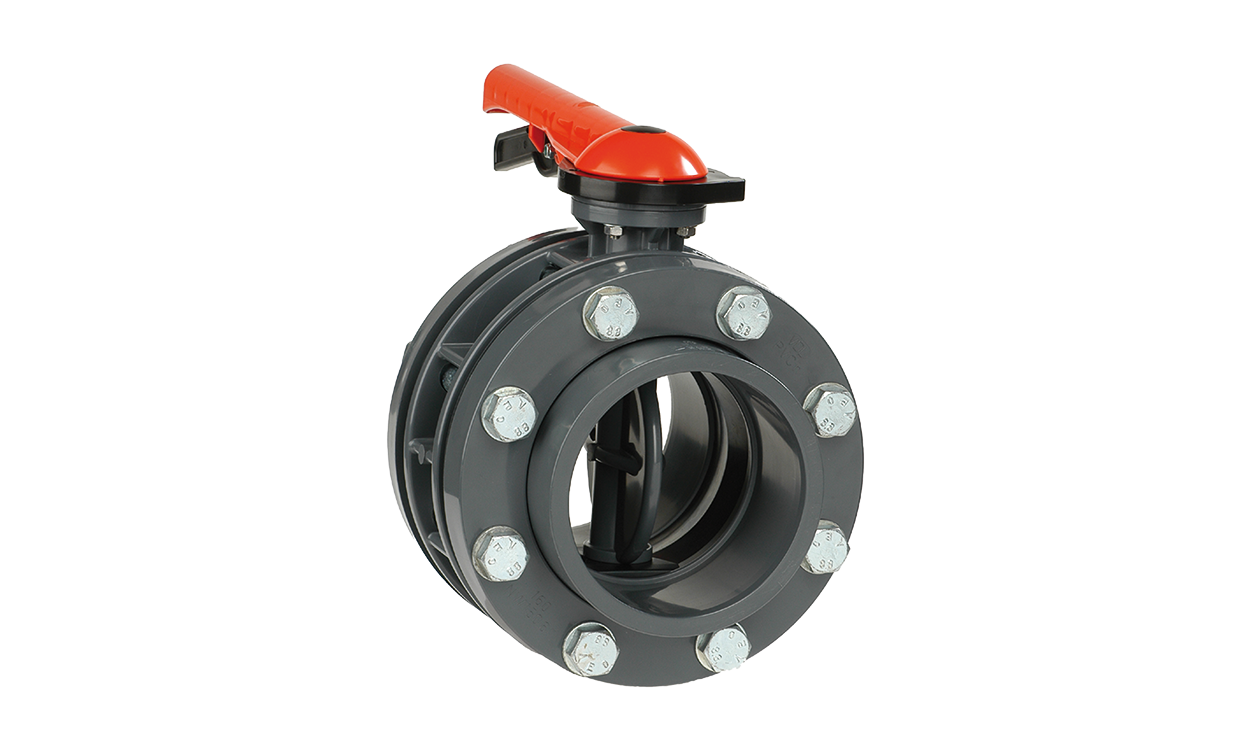

VDL Butterfly valve made of PVC-U with red grid lever
| Certification: | DIN 8063, ISO 727, KIWA Nr. BRL-K 504 |
|---|---|
| Gasket: | EPDM |
| Gate: | PVC |
| Material: | PVC-U |
| Spindle: | stainless steel |
| Temperature range: | 0°C up to +60 |
| d | Packing unit (piece) | WP (bar) | overall length (mm) | DN | hole circle (mm) | Product Number | Delivery Time | |
|---|---|---|---|---|---|---|---|---|
| 75 | 1 | 10 | 53 | 65 | 144 | 4581075000 | ||
| 90 | 1 | 10 | 53 | 80 | 160 | 4581090000 | ||
| 110 | 1 | 10 | 63 | 100 | 190 | 4581110000 | ||
| 140 | 1 | 10 | 71 | 125 | 215 | 4581140000 | ||
| 160 | 1 | 6 | 78 | 150 | 242 | 4581160000 | ||
| 225 | 1 | 6 | 81 | 200 | 298 | 4581225000 |
Product data sheet
Skip product gallery

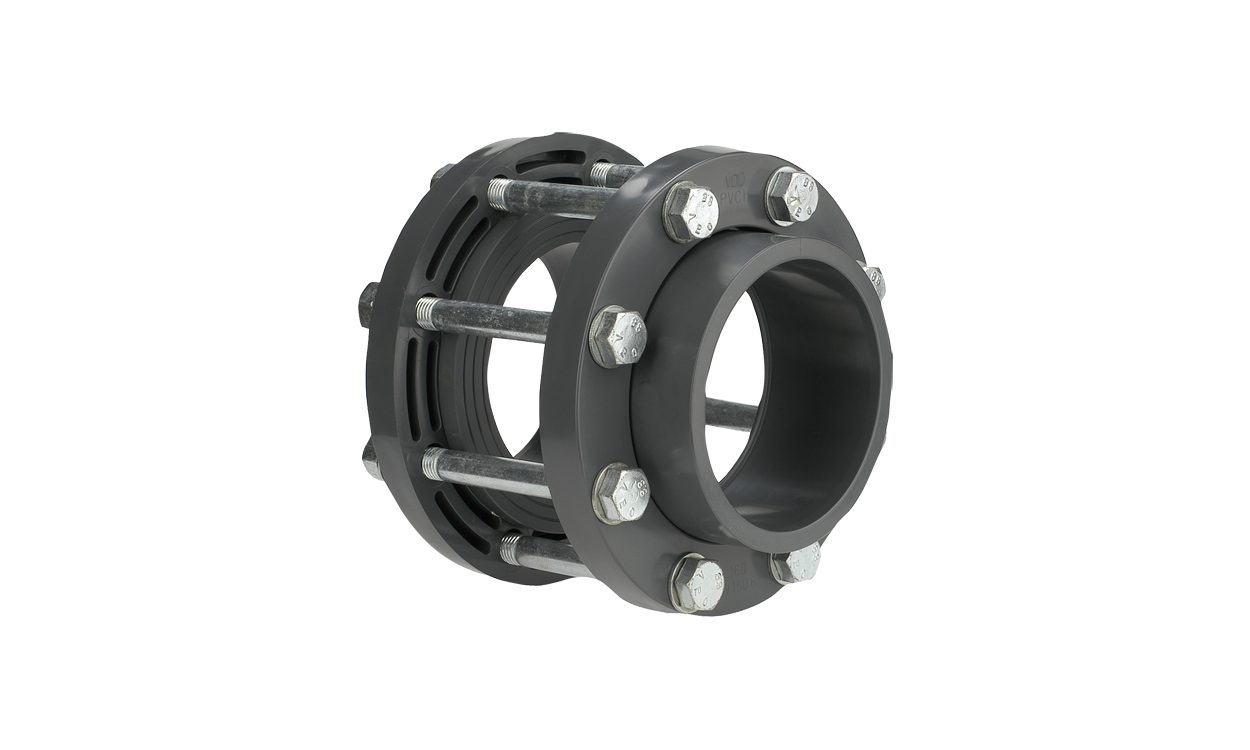

PVC kit for butterfly valve type VDL
d:
110
components: flange adaptor, loose flange galvanized bolts
Product number:
4581110001
