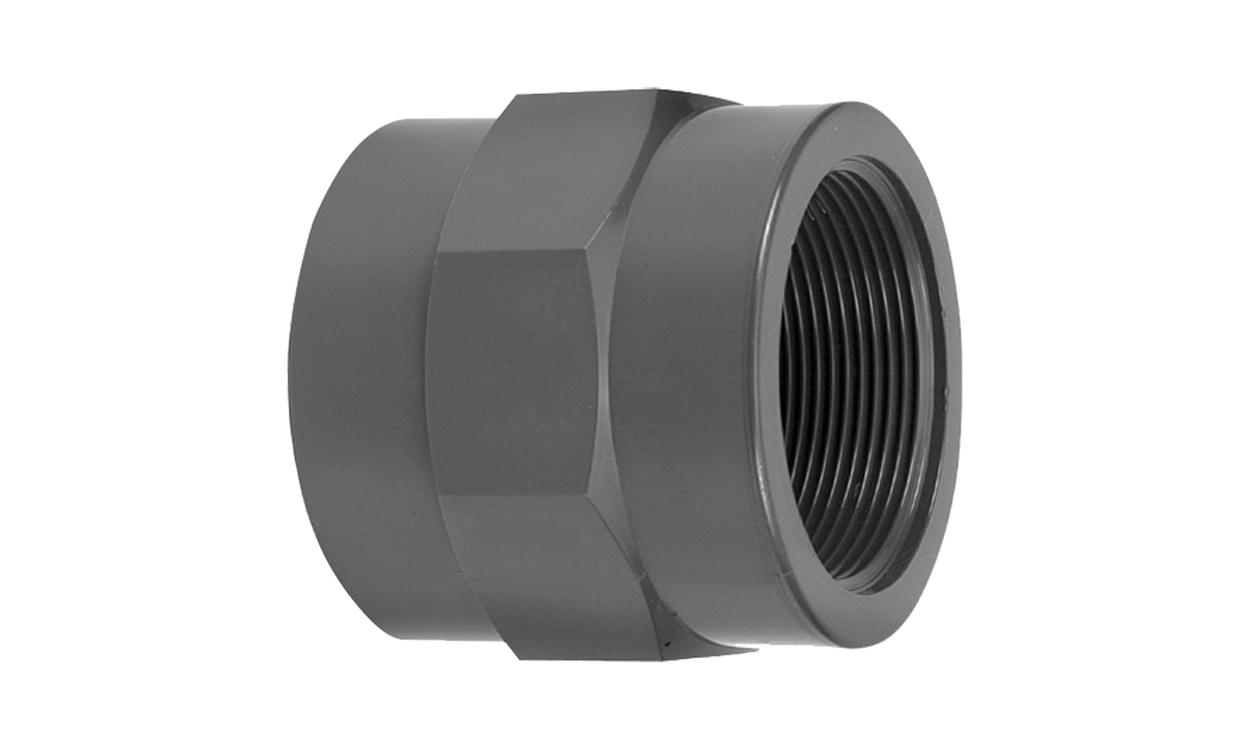

PVC threaded socket
Product information "PVC threaded socket"
2 x female thread without reinforcement ring
| Material: | PVC-U |
|---|
| Female thread | Packing unit (piece) | WP (bar) | Product Number | Delivery Time | |
|---|---|---|---|---|---|
| 1/4" x 1/4" | 100 | 16 | 4301006000 | ||
| 1/4" x 3/8" | 100 | 10 | 4301006010 | ||
| 1/4" x 1/2" | 50 | 10 | 4301006013 | ||
| 3/8" x 3/8" | 100 | 10 | 4301010000 | ||
| 3/8" x 1/2" | 100 | 10 | 4301010013 | ||
| 3/8" x 3/4" | 50 | 10 | 4301010019 | ||
| 1/2" x 1/2" | 100 | 10 | 4301013000 | ||
| 1/2" x 3/4" | 100 | 10 | 4301013019 | ||
| 1/2" x 1" | 100 | 10 | 4301013025 | ||
| 3/4" x 3/4" | 100 | 10 | 4301019000 | ||
| 3/4" x 1" | 100 | 10 | 4301019025 | ||
| 3/4" x 1 1/4" | 150 | 10 | 4301019032 | ||
| 1" x 1" | 100 | 10 | 4301025000 | ||
| 1" x 1 1/4" | 150 | 10 | 4301025032 | ||
| 1" x 1 1/2" | 100 | 10 | 4301025038 | ||
| 1 1/4" x 1 1/4" | 100 | 10 | 4301032000 | ||
| 1 1/4" x 1 1/2" | 100 | 10 | 4301032038 | ||
| 1 1/4" x 2" | 60 | 10 | 4301032050 | ||
| 1 1/2" x 1 1/2" | 100 | 10 | 4301038000 | ||
| 1 1/2" x 2" | 50 | 10 | 4301038050 | ||
| 2" x 2" | 25 | 10 | 4301050000 |
Product data sheet
