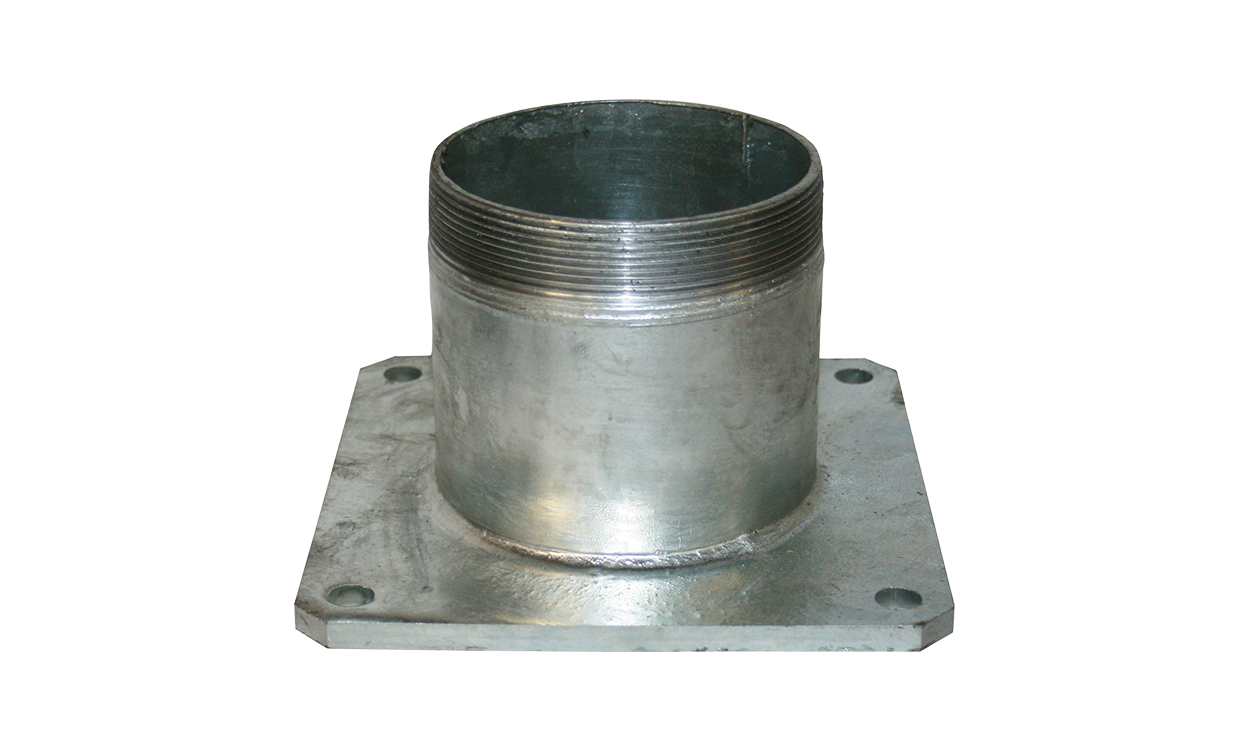

Steel rectangular flange
Product information "Steel rectangular flange"
| Material: | steel, galvanized |
|---|
| Male thread | Outer-Ø (mm) | holse distance (mm) | holes | Outer-Ø (mm) | Product Number | Delivery Time | |
|---|---|---|---|---|---|---|---|
| 4" | 180 x 180 | 150 | 4 | 180 x 180 | 8023100000 | ||
| 5" | 180 x 180 | 150 | 4 | 180 x 180 | 8023125000 | ||
| 6" | 180 x 180 | 150 | 4 | 180 x 180 | 8023150000 | ||
| 8" | 230 x 230 | 180 | 4 | 230 x 230 | 8023200000 |
