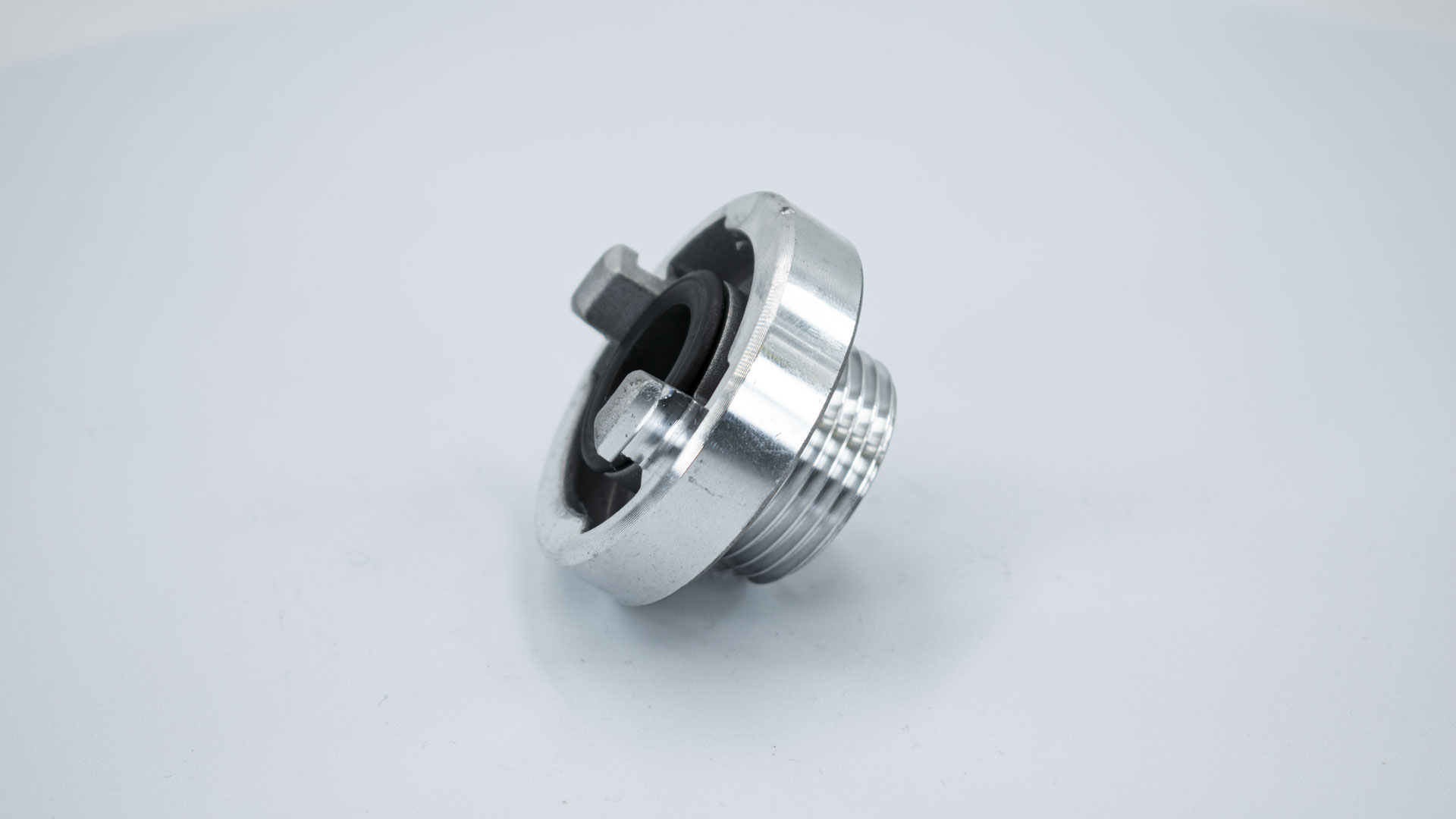

Alu fixed coupling with male thread Type I System Storz
Product information "Alu fixed coupling with male thread Type I System Storz"
| Gasket: | nitrile rubber |
|---|---|
| Material: | aluminium |
| NW | Male thread | Unit | knag distance (mm) | Product Number | Delivery Time | |
|---|---|---|---|---|---|---|
| 25-D | 1" | piece | 31 | 2112025025 | ||
| 52-C | 1" | piece | 66 | 2112052025 | ||
| 52-C | 1 1/4" | piece | 66 | 2112052032 | ||
| 52-C | 1 1/2" | piece | 66 | 2112052038 | ||
| 52-C | 2" | piece | 66 | 2112052050 | ||
| 75-B | 2" | piece | 89 | 2112075050 | ||
| 75-B | 2 1/2" | piece | 89 | 2112075063 | ||
| 75-B | 3" | piece | 89 | 2112075075 | ||
| 110-A | 4" | piece | 133 | 2112110100 |
Product data sheet
