Alu pressure coupling for clamping rings with short hose nozzle System Storz
Product information "Alu pressure coupling for clamping rings with short hose nozzle System Storz"
for the special integration of flat hoses with clamping rings, with short hose nozzle
| Gasket: | nitrile rubber |
|---|---|
| Material: | aluminium |
| NW | for hose (mm) | knag distance (mm) | Product Number | Delivery Time | |
|---|---|---|---|---|---|
| 52-C | 52 | 66 | 2140052000 | ||
| 65 | 65 | 81 | 2140065000 | ||
| 65 | 75 | 81 | 2140065075 | ||
| 75-B | 75 | 89 | 2140075000 | ||
| 90 | 90 | 105 | 2140090000 | ||
| 100 | 101,5 | 115 | 2140100000 | ||
| 110-A | 101,5 | 133 | 2140110000 | ||
| 110-A | 110 | 133 | 2140110100 | ||
| 110-A | 114 | 133 | 2140110114 | ||
| 110-A | 127 | 133 | 2140110127 | ||
| 125 | 127 | 148 | 2140125000 | ||
| 150 | 150 | 160 | 2140150000 |
Product data sheet
Skip product gallery
Coupling key für couplings System Storz 150-125
NW:
150 / 125
with cold protection lever
Product number:
2121150000
Coupling key für couplings System Storz B-C
NW:
75-B / 52-C
with cold protection lever
Product number:
2121075000
Coupling key für couplings System Storz A-B-C
NW:
110-A / 75-B / 52-C
with cold protection lever
Product number:
2121110001
Clamping rings for alu pressure coupling System Storz and System Perrot for clamping rings
three-part with screw and nut
Product number:
MASTER-2141
Skip product gallery
Female coupling as blind cap type DC - System Kamlok PP
NW:
4"
with stainless steel lever
Product number:
2158100000
PP T-fitting 90°
Male thread:
2"
|
d:
50
both sides screw connection, with male thread at middle connection
Product number:
4660050050
PVC Socket with male thread (Typ COBI)
Male thread:
1/2"
|
d:
25 x 32
bonding socket x male thread
Product number:
4315025013
PVC adaptor nipple
Male thread:
1 1/4"
|
d:
40
injection moulding with hexagonal/octagonal connection x male thread
Product number:
4312040032
Tip
COBITANK EN - Oil- and petrol-resistant suction and pressure hose according to EN 12115
Inner-Ø (mm):
25
|
Length (m):
40
suitable for loading and unloading tankers and railway tank wagons. Suitable for mineral oil products with max. 50% aromatic content. Suitable for various technical oils.
Product number:
1409025000
PE reduction SDR 11
d:
200 x 160
PE 100 SDR 11 / 10 bar gas / 16 bar water
Product number:
4739200160
Brass sleeve ball valve type COBI
Female thread:
1 1/4"
both sides female thread
with full bore, useable for not aggressive media
Product number:
3030032000
Food coupling with union nut
NW coupling x for hose (mm):
DN40 x 38 mm
for shell-inclusion with safety collar
Product number:
2710038000
COBITANK 10 SL - Oil- and petrol-resistant suction and pressure hose 10 bar
Inner-Ø (mm):
51
|
Length (m):
Abschnitt
suitable for loading and unloading of tankers and railway tank wagons. For mineral oil products with max. 50% aromatic content.
Product number:
1431051000abs
Brass sleeve ball valve type COBI
Female thread:
2 1/2"
both sides female thread
with full bore, useable for not aggressive media
Product number:
3040063000
COBISINTEC RO - Synthetic construction and industry hose
Inner-Ø (mm):
75
|
Length (m):
Abschnitt
suitable as construction site hose and for water duct. All-weather flat hose without couplings. Rot-proof, abrasion-resistant and durable.
Product number:
1042075000abs
Hose connection fitting with male thread
for hose (mm):
90
mounting on hose outside
Product number:
2475108100
PP T-fitting 90° reduced
d:
50 x 40 x 50
all sides screw connection reduced
Product number:
4658050040
Drinking water sealing ring for pressure and suction operation (DS), Storz System
NW:
52-C
Replacement gasket for suction and pressure coupling, Storz system. Specifically suitable for drinking water applications.
Product number:
2136052001
Brass hose connection with male coupling
for hose (mm) x male thread:
80 x 3“ mt
for shell-inclusion, smooth hose connection with safety collar and male thread
Product number:
2053075080
Air outlet with hose nozzle
DN:
7,2
|
hose nozzle (mm):
6
single shut-off
Product number:
7143006000
WEY knife gate valve type VNC with double-acting pneumatic drive
DN:
250
with pneumatic power, double-acting, for installation as an intermediate flange slider. Pipe passage tightness due to sealing on the narrow side of the plate. An adjustable transverse seal prevents the medium from escaping to the outside. Solid objects are sheared off by the cutting edge of the plate.
Product number:
3180250000
COBITROM FLAT - Silo conveying hose, flat rollable
Inner-Ø (mm):
102
|
Length (m):
Abschnitt
suitable for abrasive media, cement, powder, animal feed. Abrasion-proof, flat rollable rubber conveying hose.
Product number:
1323102000abs
Tension jaw clamps W2
Clamping range (mm):
97-104
wide-band clamp with open able bridge piece and with rounded clamp band edges
Product number:
1525097104
PVC reducer
male thread / female thread:
1 1/2" x 1"
one side male thread, other side female thread
Product number:
4318038025
COBISINTEC 13 - Synthetic construction and industry hose 13 bar
Inner-Ø (mm):
102-A
|
Length (m):
25
suitable as construction site hose and for water duct. All-weather flat hose, rot-proof, abrasion-resistant and durable. Assembled with aluminium couplings system Storz with long tail.
Product number:
1040102025
Tension jaw clamps W2
Clamping range (mm):
37-40
wide-band clamp with open able bridge piece and with rounded clamp band edges
Product number:
1525037040
COBITANK 10 PLUS SL - Oil- and petrol-resistant suction and pressure hose according to EN 12115, very flexible
Inner-Ø (mm):
75
|
Length (m):
Abschnitt
suitable for loading and unloading tankers and railway tank wagons. For mineral oil products with max. 50% aromatic content. Suitable for various technical oils.
Product number:
1413075000abs
COBIFIELD 80 - PVC pest control hose 80 bar
Inner-Ø (mm):
19
|
Length (m):
50
for sprayers, resistant to pesticides and fertilizers. UV-, weather- and oil-resistant.
Product number:
1233019000
PVC Reducer, short (Typ COBI)
male thread / female thread:
1 1/2" x 1 1/4"
male thread x female thread
Product number:
4317038032
COBIOILRUBBER - Fuel hose with a smooth cover
Inner-Ø (mm):
7,5
|
Length (m):
15
resistant to fuel, oil, diesel, petroleum, lubricants and mineral oil based fluids as well as biodiesel (RME) of up to 20%.
Product number:
1432075000
PVC slide valve
d:
200
|
extention (mm):
1000
with stainless steel slide wedge extension, both sides bonding socket. The valve can be buried and operated under water.
Product number:
4570200010
Suction lance for COBIHIVAC with brass ball valve type COBI
NW:
2"
for suction of faecal from portable toilets suitable for COBIHIVAC. Suction lance made of brass ball vave type COBI with PP male coupling 2“ system Kamlok, PP-compression fitting and PVC-pipe 1 m length
Product number:
65503
COBICOOL - EPDM-radiator hose
Inner-Ø (mm):
85
|
Length (m):
40
suitable for passing water in the cooling circuit. Resistant to a variety of antifreeze.
Product number:
1015085000
Alu fixed coupling with female thread Type I System Storz
NW:
52-C
|
Female thread:
2"
Product number:
2111052050
Compressed air full screw-connection with safety collar
Female thread:
Rd 32 x 1/8"
|
for hose (mm):
19
for inclusion with hose clapms with safety collar. For compressed air and water
Product number:
2210032019
COBIPUR R - Middle heavy polyurethane exhaust ventilation hose, flame-retardant according to DIN 4102-B1, antistatic
Inner-Ø (mm):
60
|
Length (m):
10
suitable for wood shavings and wood exhaust ventilation. Conform to the safety regulations of the German Wood Trade Association. Not resistant to microbes and hydrolysis.
Product number:
1326060000
Tension jaw clamps W2
Clamping range (mm):
27-29
wide-band clamp with open able bridge piece and with rounded clamp band edges
Product number:
1525027029
Brass sleeve ball valve type industry
Female thread:
2 1/2"
both sides female thread
with full bore, useable for not aggressive media
Product number:
3031063000
COBICOOL - EPDM-radiator hose
Inner-Ø (mm):
32
|
Length (m):
Abschnitt
suitable for passing water in the cooling circuit. Resistant to a variety of antifreeze.
Product number:
1015032000abs
DVGW-PP coupling, reduced
d:
90 x 63
one side screw connection, other side reduced screw connection
Product number:
4603090063
COBISUPERFLEX - High-flexible PVC suction and pressure hose
Inner-Ø (mm):
152
|
Length (m):
20
suitable for municipal vehicles, irrigation and agriculture. High-flexible and cold-resistant quality.
Product number:
1083152000
PVC threaded socket
d:
16 x 25
bonding connection/bonding socket x female thread, with reinforcement ring
Product number:
4303025013
COBITANK TW D - Oil-and petrol-resistant pressure hose according to EN 12115
Inner-Ø (mm):
25
|
Length (m):
40
Highly flexible pressure hose according to EN 12115, ideal for loading and unloading tanks, tank vehicles with unleaded fuels (EN228:2017) with an oxygen limit according to EEC 85/536 and an aromatic content of up to 50%. Suitable as a reel hose for tank vehicles. Can be used for technical oils, diesel oils (EN 590:2017), heating oils (DIN 51 603 parts 1 - 5) and mineral oil-based hydraulic oils.
Product number:
1405025000
COBIPUR S - Heavy polyurethane suction and conveying hose, antistatic
Inner-Ø (mm):
152
|
Length (m):
10
suitable for sharp-edged media, granulates, gravel, sand, glass. Especially suitable for suction dredgers. Very flexible special model for heavy applications. Not resistant to microbes and hydrolysis. Good resistance to oil, gasoline and chemicals.
Product number:
1330152000
Skip product gallery

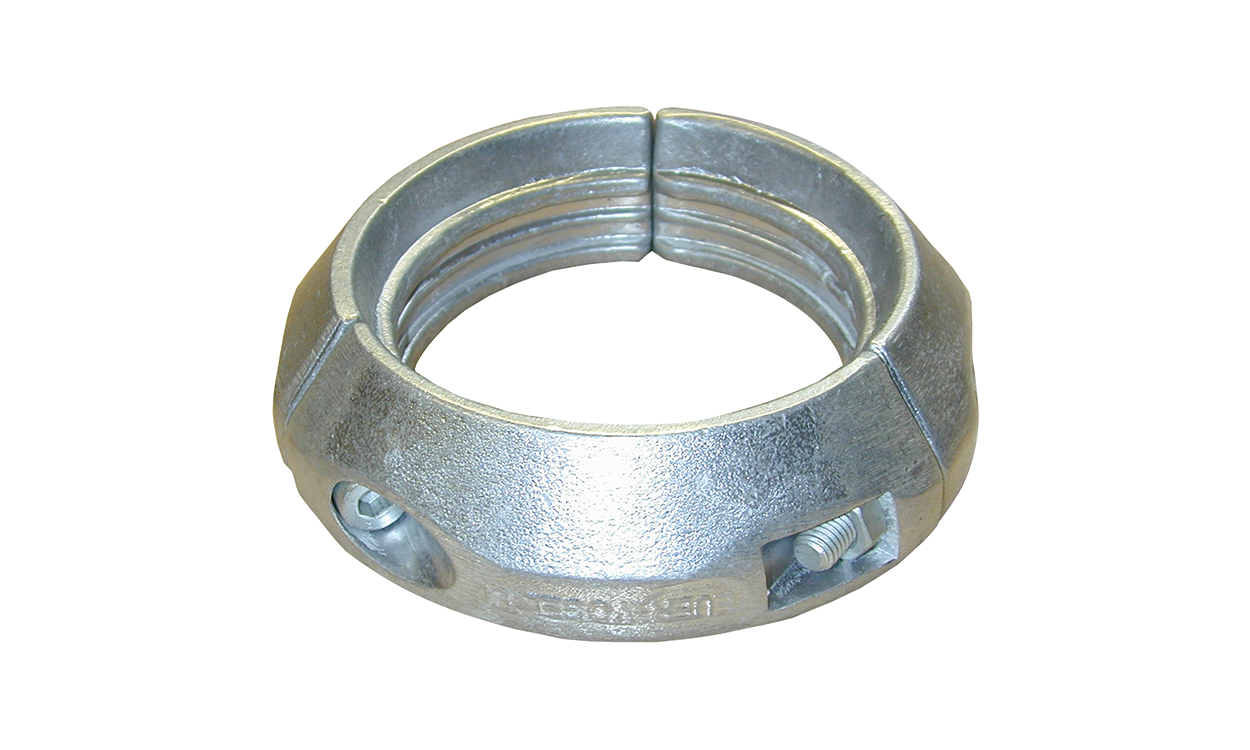

Clamping rings for alu pressure coupling System Storz and System Perrot for clamping rings
wall thickness (mm):
2,8 - 3,2
|
for hose (mm):
101,5
three-part with screw and nut
Product number:
2141100000
Clamping rings for alu pressure coupling System Storz and System Perrot for clamping rings
wall thickness (mm):
4,5
|
for hose (mm):
101,5
three-part with screw and nut
Product number:
2141100045

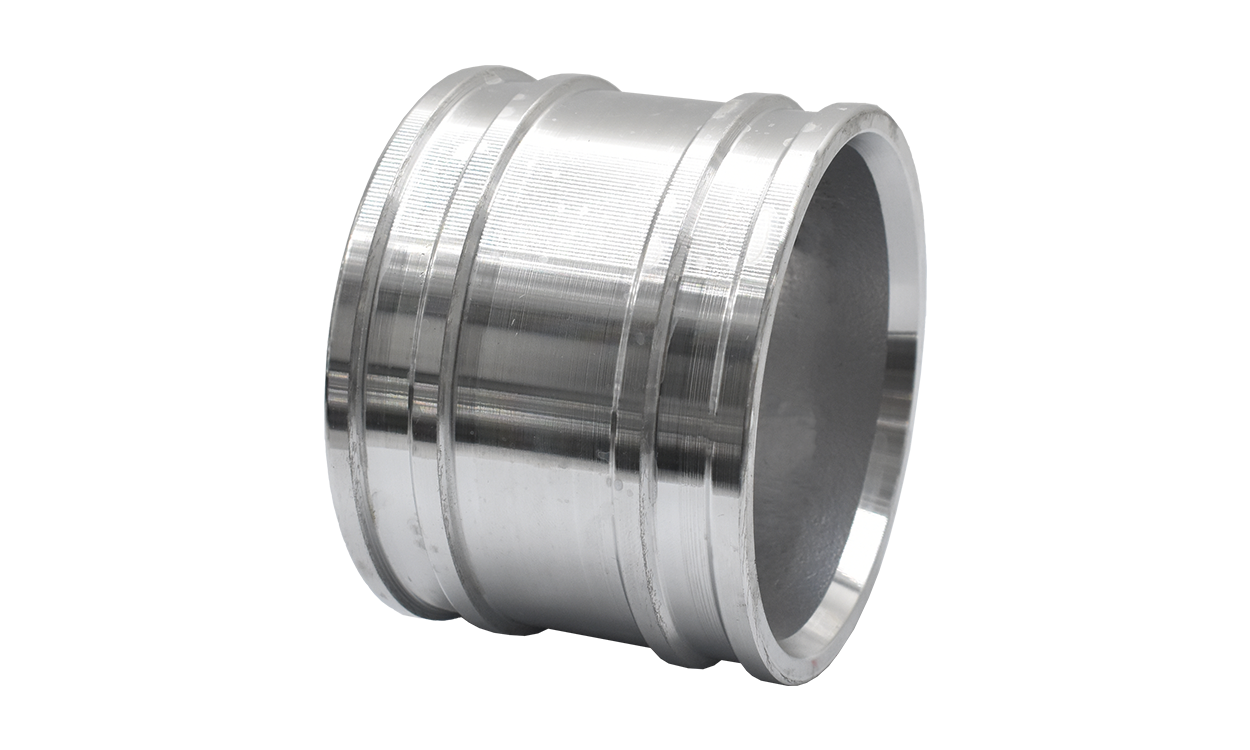

Alu double hose nozzle for clamping rings System Storz
