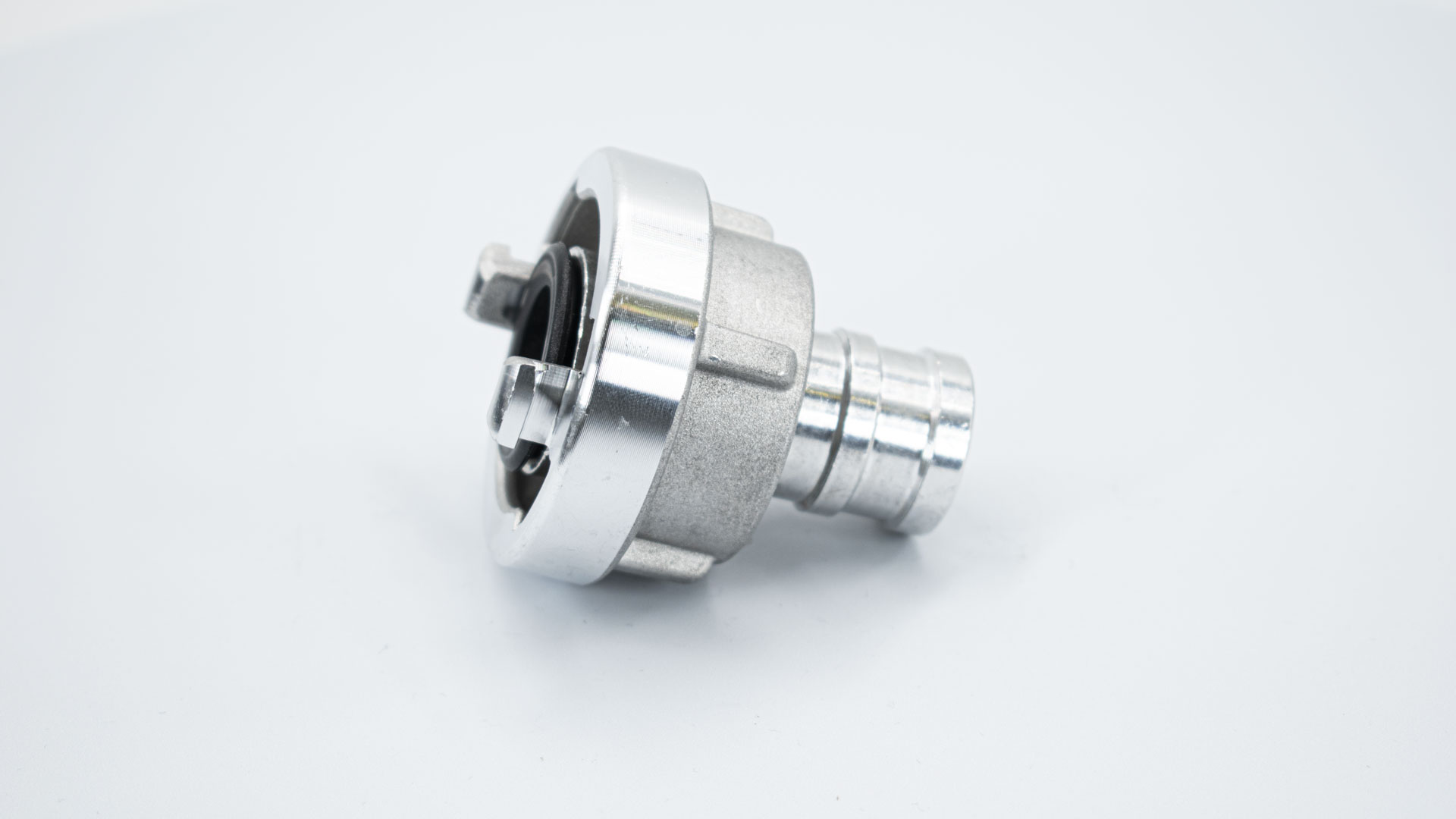

Alu suction coupling with hose nozzle System Storz
Product information "Alu suction coupling with hose nozzle System Storz"
| Gasket: | nitrile rubber |
|---|---|
| Material: | aluminium |
| NW | for hose (mm) | knag distance (mm) | addition2 | Product Number | Delivery Time | |
|---|---|---|---|---|---|---|
| 25-D | 25 | 31 | DIN 14 301 | 2103025025 | ||
| 38 | 38 | 52 | 2103038038 | |||
| 52-C | 25 | 66 | 2103052025 | |||
| 52-C | 32 | 66 | 2103052032 | |||
| 52-C | 38 | 66 | 2103052038 | |||
| 52-C | 40 | 66 | 2103052040 | |||
| 52-C | 42 | 66 | 2103052042 | |||
| 52-C | 50 | 66 | 2103052050 | |||
| 52-C | 52 | 66 | DIN 14 321 | 2103052052 | ||
| 52-C | 60 | 66 | 2103052060 | |||
| 65 | 52 | 81 | 2103065052 | |||
| 65 | 63 | 81 | 2103065063 | |||
| 65 | 75 | 81 | 2103065075 | |||
| 75-B | 52 | 89 | 2103075052 | |||
| 75-B | 65 | 89 | 2103075065 | |||
| 75-B | 75 | 89 | DIN 14 322 | 2103075075 | ||
| 75-B | 80 | 89 | 2103075080 | |||
| 90 | 90 | 105 | 2103090090 | |||
| 100 | 100 | 115 | 2103100100 | |||
| 110-A | 90 | 133 | 2103110090 | |||
| 110-A | 100 | 133 | 2103110100 | |||
| 110-A | 110 | 133 | DIN 14 323 | 2103110110 | ||
| 125 | 125 | 148 | 2103125125 | |||
| 150-F | 150 | 160 | 2103150150 |
Product data sheet
Skip product gallery
Coupling key für couplings System Storz 150-125
NW:
150 / 125
with cold protection lever
Product number:
2121150000
Coupling key für couplings System Storz B-C
NW:
75-B / 52-C
with cold protection lever
Product number:
2121075000
Tension jaw clamps W4
wide-band clamp with open able bridge piece and with rounded clamp band edges
Product number:
MASTER-1531
Coupling key für couplings System Storz A-B-C
NW:
110-A / 75-B / 52-C
with cold protection lever
Product number:
2121110001
COBI Tension jaw clamps W1
wide-band clamp with rounded clamp band edgesScrew with a full bolt
Product number:
MASTER-1521
Skip product gallery

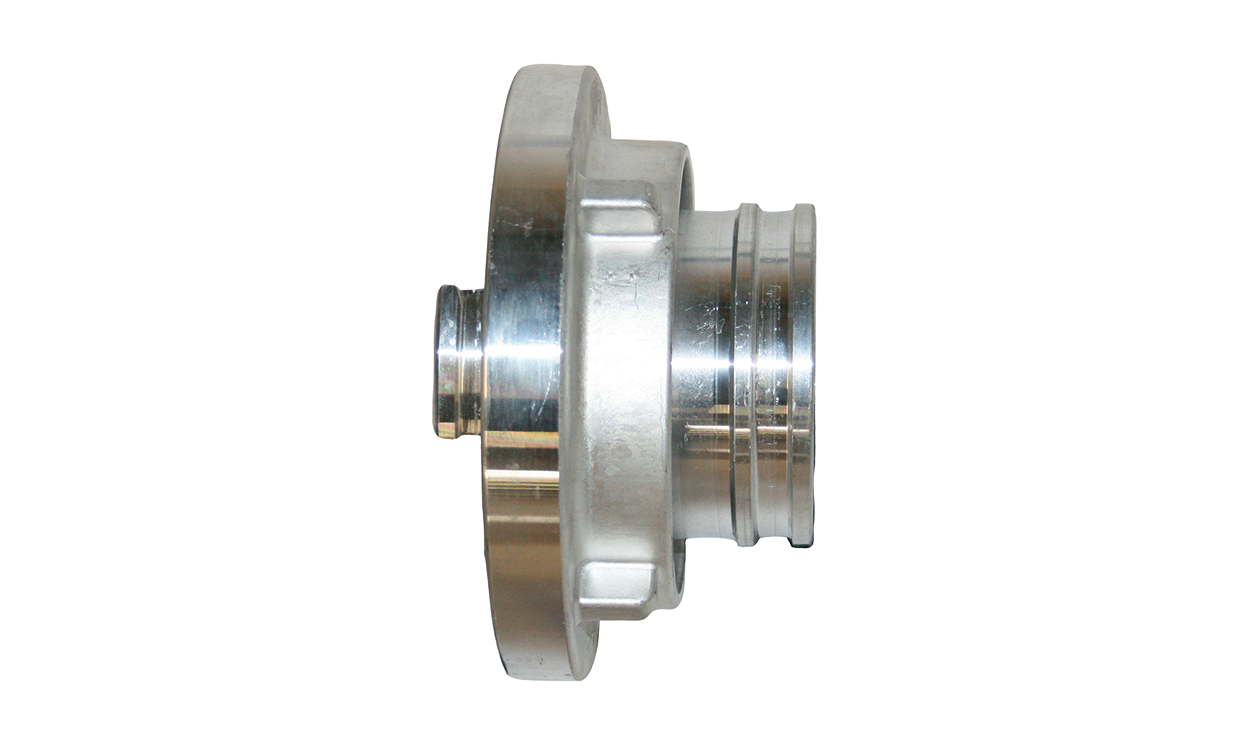

Alu pressure coupling for clamping rings with short hose nozzle System Storz
for the special integration of flat hoses with clamping rings, with short hose nozzle
Product number:
MASTER-2140

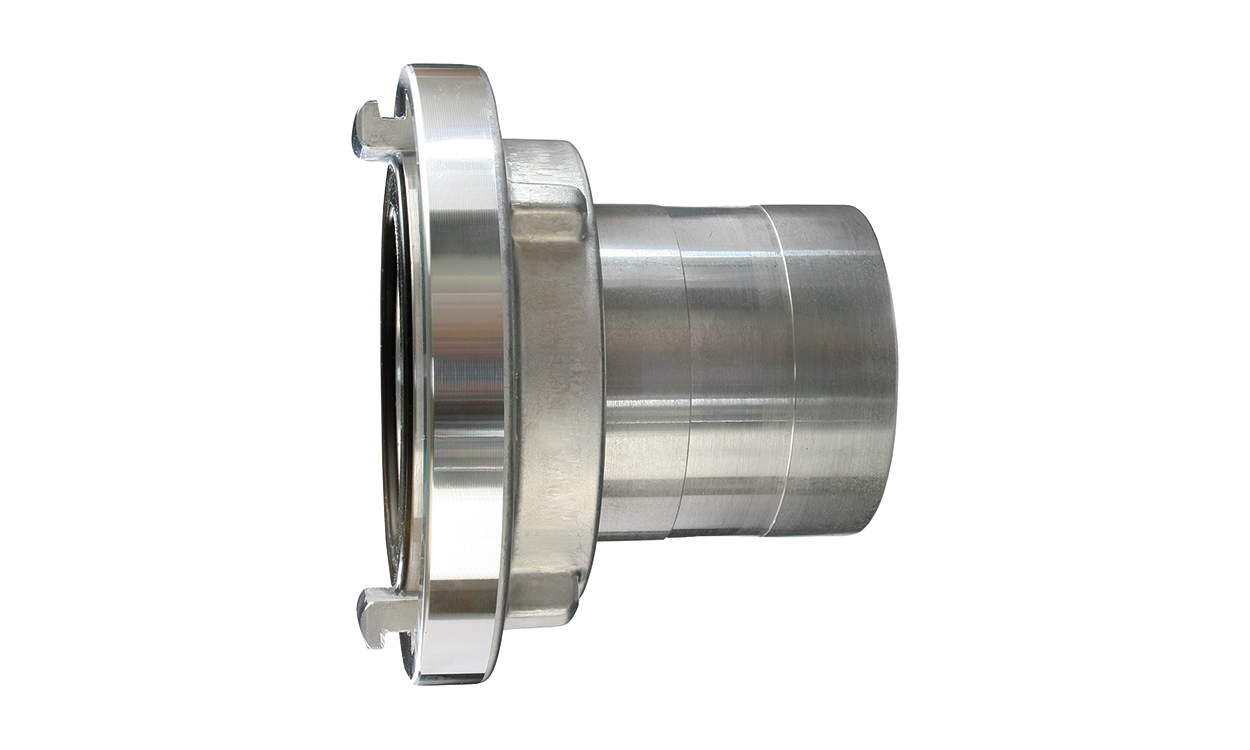

Alu-coupling with smooth passage System Storz
Especially for pellet hoses. This coupling allows a smoother passage in the hose.
Product number:
MASTER-2119

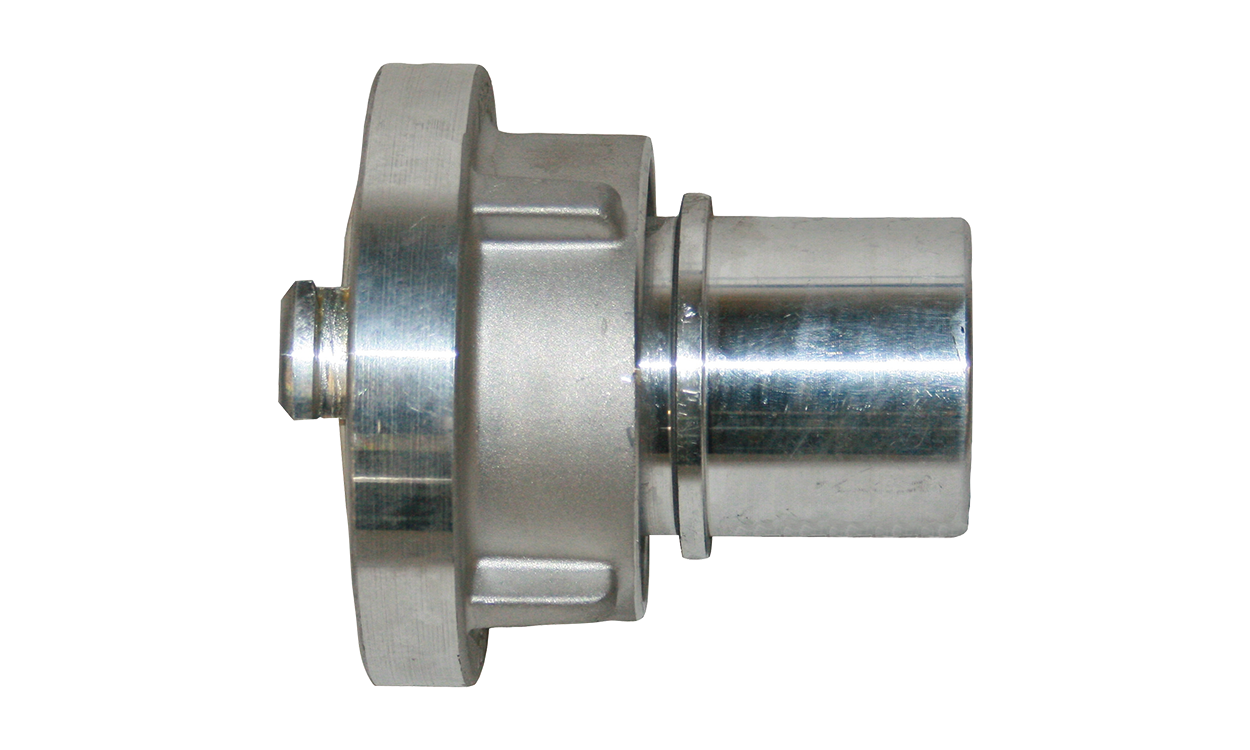

Alu suction coupling with smooth hose connection System Storz
for shell-inclusion, with smooth hose connection and safety collar
Product number:
MASTER-2117

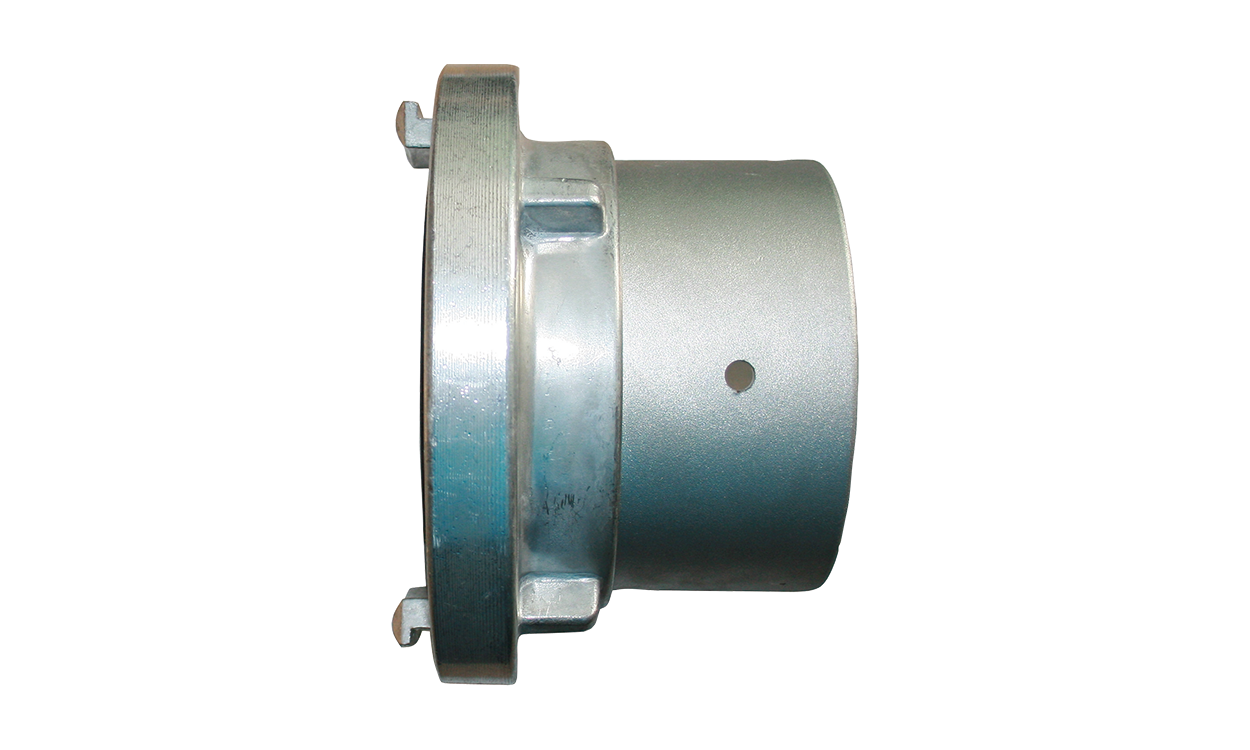

Alu-coupling with hose connection System Storz
