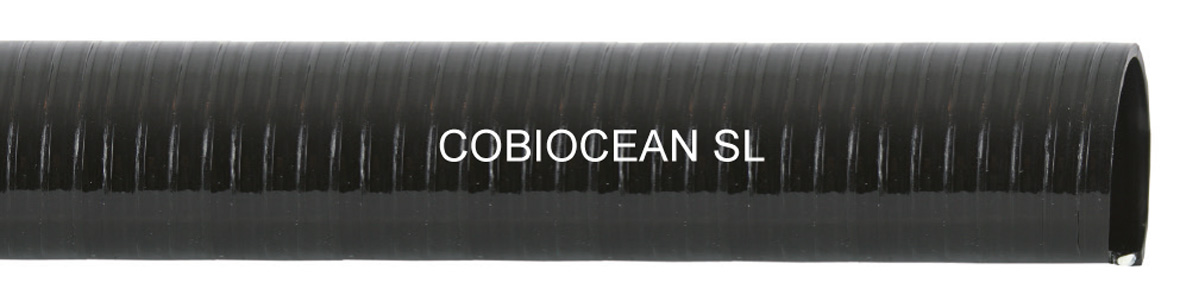

COBIOCEAN SL - PVC suction and pressure hose for light applications
Product information "COBIOCEAN SL - PVC suction and pressure hose for light applications"
lightweight version for pond construction, horticulture, irrigation and drainage. Due to its dark color, the hose does not stand out in the pond. Flexible, UV-resistant and opaque.
| Colour: | black |
|---|---|
| Structure: | synthetic spiral hose, black, inside smooth with embedded white hard PVC spiral, outside light corrugated |
| Temperature range: | -15°C up to +60°C |
| Inner-Ø (mm) | Length (m) | Unit | Vacuum (m WC) | wall thickness (mm) | weight (g) | Outer-Ø (mm) | WP (bar) | bending radius (mm) | Product Number | Delivery Time | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 25 | meter | 7 | 2,4 | 220 | 24,8 | 7 | 85 | 1078020000 | ||
| 25 | 25 | meter | 7 | 2,4 | 250 | 29,8 | 6 | 105 | 1078025000 | ||
| 32 | 25 | meter | 7 | 2,6 | 345 | 37,2 | 6 | 130 | 1078032000 | ||
| 38 | 25 | meter | 7 | 3 | 470 | 44 | 6 | 155 | 1078038000 | ||
| 40 | 25 | meter | 7 | 3 | 500 | 46 | 5 | 165 | 1078040000 | ||
| 40 | 50 | meter | 7 | 3 | 500 | 46 | 5 | 165 | 1078040050 | ||
| 50 | 25 | meter | 7 | 3,6 | 680 | 57,2 | 5 | 205 | 1078050000 |
Product data sheet
Skip product gallery
COBI Tension jaw clamps W1
Clamping range (mm):
36-39
wide-band clamp with rounded clamp band edgesScrew with a full bolt
Product number:
1521036039
Alu suction coupling with hose nozzle System Storz
NW:
52-C
|
for hose (mm):
32
Product number:
2103052032
Tension jaw clamps W4
Clamping range (mm):
37-40
wide-band clamp with open able bridge piece and with rounded clamp band edges
Product number:
1531037040
Alu suction coupling with hose nozzle Type I System Storz
NW:
52-C
|
for hose (mm):
32
Product number:
2113052032
Skip product gallery
COBITROM LM - Food conveying hose for dry media
Inner-Ø (mm):
75
|
Length (m):
40
suitable for grain, powder, animal feed, PVC granulates. High-grade and high abrasion-proof rubber conveying hose.
Product number:
1155075000
Brass spray nozzle with quick coupling System Geka
NW:
1"
heavy weight model
Product number:
3314025000
COBISUPERFLEX TOP - High flexible rubber spiral suction and conveying hose with spiral free cuffs
Inner-Ø (mm):
127
|
Length (m):
5
with high abrasion-proof internal lining, suitable for abrasive media such as sand, grit, stones, fly ash, blasting agents. Both sides spiral free cuffs.
Product number:
1301127005
COBISUPERFLEX TOP - High flexible rubber spiral suction and conveying hose with spiral free cuffs
Inner-Ø (mm):
76
|
Length (m):
40
with high abrasion-proof internal lining, suitable for abrasive media such as sand, grit, stones, fly ash, blasting agents. Both sides spiral free cuffs.
Product number:
1301076000
COBIOCEAN SL - PVC suction and pressure hose for light applications
Inner-Ø (mm):
40
|
Length (m):
25
lightweight version for pond construction, horticulture, irrigation and drainage. Due to its dark color, the hose does not stand out in the pond. Flexible, UV-resistant and opaque.
Product number:
1078040000
Hose clamp two part M 2
Clamping range (mm):
115-125
two part wide-band clamp to clamping range 60-70 mm screw M6 x 45 from clamping range 65-75 mm screw M8 x 60
Product number:
1540115125
COBIOCEAN SL - PVC suction and pressure hose for light applications
Inner-Ø (mm):
50
|
Length (m):
25
lightweight version for pond construction, horticulture, irrigation and drainage. Due to its dark color, the hose does not stand out in the pond. Flexible, UV-resistant and opaque.
Product number:
1078050000
COBISUPER PU - PVC/PU suction and pressure hose for middle heavy applications
Inner-Ø (mm):
102
|
Length (m):
30
suitable for grain, powder, grinding and mixing plants. Very flexible and abrasion-proof PVC suction and pressure hose with internal polyurethane coat and internal copper braid.
Product number:
1324102000
COBITROM - Silo conveying hose
Inner-Ø (mm):
100
|
Length (m):
20
suitable for abrasive media, grain, cement, powder. Abrasion-proof rubber conveying hose.
Product number:
1320100010
Quick coupling pipes System Perrot
NW:
159
|
Length (m):
4
one side female coupling, other side male coupling
Product number:
2443159004
COBISUPERFLEX TOP - High flexible rubber spiral suction and conveying hose with spiral free cuffs
Inner-Ø (mm):
203
|
Length (m):
5
with high abrasion-proof internal lining, suitable for abrasive media such as sand, grit, stones, fly ash, blasting agents. Both sides spiral free cuffs.
Product number:
1301203005
COBISUPER PU - PVC/PU suction and pressure hose for middle heavy applications
Inner-Ø (mm):
90
|
Length (m):
5,1
suitable for grain, powder, grinding and mixing plants. Very flexible and abrasion-proof PVC suction and pressure hose with internal polyurethane coat and internal copper braid.
Product number:
1324090051
COBILIGHT - PVC suction and pressure hose for light applications
Inner-Ø (mm):
63
|
Length (m):
50
suitable for conveying of water, waste water and feces in the agriculture and industry, irrigation and draining. Light and flexible quality. Resistant to many chemicals, UV and weather resistant.
Product number:
1060063000
Y-coupling female coupling with 2 outlets male couplings System Perrot
NW:
female 159 x lateral outlet male/male 108
Product number:
2438159108
COBISUPERFLEX TOP - High flexible rubber spiral suction and conveying hose with spiral free cuffs
Inner-Ø (mm):
152
|
Length (m):
5
with high abrasion-proof internal lining, suitable for abrasive media such as sand, grit, stones, fly ash, blasting agents. Both sides spiral free cuffs.
Product number:
1301152005
Brass suction hose connection with male thread
for hose (mm) x male thread:
25 x 3/4“ mt
useable for clamp-inclusion, corrugated hose connection with male thread, hexagon collar, flat sealing
Product number:
3330019025
COBIOCEAN SL - PVC suction and pressure hose for light applications
Inner-Ø (mm):
40
|
Length (m):
50
lightweight version for pond construction, horticulture, irrigation and drainage. Due to its dark color, the hose does not stand out in the pond. Flexible, UV-resistant and opaque.
Product number:
1078040050
Hose clamp two part M 2
Clamping range (mm):
105-115
two part wide-band clamp to clamping range 60-70 mm screw M6 x 45 from clamping range 65-75 mm screw M8 x 60
Product number:
1540105115
PVC Reducing socket, short (Typ COBI)
d:
90 x 75
bonding socket x bonding connection
Product number:
4325090075
Y-coupling female coupling with 2 outlets male couplings System Perrot
NW:
female 108 x lateral outlet male/male 108
Product number:
2438108108
COBISUPER PU - PVC/PU suction and pressure hose for middle heavy applications
Inner-Ø (mm):
90
|
Length (m):
5,9
suitable for grain, powder, grinding and mixing plants. Very flexible and abrasion-proof PVC suction and pressure hose with internal polyurethane coat and internal copper braid.
Product number:
1324090059
Female coupling as blind cap type DC - System Kamlok stainless steel
NW:
1 1/4"
with stainless steel lever
Product number:
2178032000
COBISUPER PU - PVC/PU suction and pressure hose for middle heavy applications
Inner-Ø (mm):
90
|
Length (m):
5,6
suitable for grain, powder, grinding and mixing plants. Very flexible and abrasion-proof PVC suction and pressure hose with internal polyurethane coat and internal copper braid.
Product number:
1324090056
Brass suction hose connection with male thread
for hose (mm) x male thread:
30 x 1“ mt
useable for clamp-inclusion, corrugated hose connection with male thread, hexagon collar, flat sealing
Product number:
3330025030
COBISUPER PU - PVC/PU suction and pressure hose for middle heavy applications
Inner-Ø (mm):
90
|
Length (m):
4,9
suitable for grain, powder, grinding and mixing plants. Very flexible and abrasion-proof PVC suction and pressure hose with internal polyurethane coat and internal copper braid.
Product number:
1324090049
COBISUPERFLEX TOP - High flexible rubber spiral suction and conveying hose with spiral free cuffs
Inner-Ø (mm):
152
|
Length (m):
20
with high abrasion-proof internal lining, suitable for abrasive media such as sand, grit, stones, fly ash, blasting agents. Both sides spiral free cuffs.
Product number:
1301152000
Female coupling as blind cap type DC - System Kamlok stainless steel
NW:
3/4"
with stainless steel lever
Product number:
2178019000
COBISUPERFLEX TOP - High flexible rubber spiral suction and conveying hose with spiral free cuffs
Inner-Ø (mm):
80
|
Length (m):
5
with high abrasion-proof internal lining, suitable for abrasive media such as sand, grit, stones, fly ash, blasting agents. Both sides spiral free cuffs.
Product number:
1301080005
COBILIGHT FIX - PVC suction and pressure hose for drag hose distributor
Inner-Ø (mm):
40
|
Length (m):
0,6
especially as a rigid fixed length (hose end piece) for liquid manure towline distributors. Resistant to many chemicals, UV and weather resistant.
Product number:
1061040060
Steel rectangular flange
Male thread:
4"
|
Outer-Ø (mm):
180 x 180
with welded on pipe nipple
Product number:
8023100000
Y-coupling female coupling with 2 outlets male couplings System Perrot
NW:
female 133 x lateral outlet male/male 108
Product number:
2438133108
COBITROM - Silo conveying hose
Inner-Ø (mm):
100
|
Length (m):
Abschnitt
suitable for abrasive media, grain, cement, powder. Abrasion-proof rubber conveying hose.
Product number:
1320100010abs
Alu clamping shells EN 14420-3
for hose x wall thickness (mm):
65 x 7
for inclusion of couplings with smooth hose connections and safety collar, two-part, complete with hexagon socket screw and nut
Product number:
2070063008
COBISUPER PU - PVC/PU suction and pressure hose for middle heavy applications
Inner-Ø (mm):
102
|
Length (m):
4
suitable for grain, powder, grinding and mixing plants. Very flexible and abrasion-proof PVC suction and pressure hose with internal polyurethane coat and internal copper braid.
Product number:
1324102040
Alu clamping shells EN 14420-3
for hose x wall thickness (mm):
100 x 12
for inclusion of couplings with smooth hose connections and safety collar, two-part, complete with hexagon socket screw and nut
Product number:
2070100012
WEY knife gate valve type VNA with handwheel
DN:
250
with hand wheel, for installation as an intermediate flange slider. Pipe passage tightness due to sealing on the narrow side of the plate. An adjustable transverse seal prevents the medium from escaping to the outside. Solid objects are sheared off by the cutting edge of the plate.
Product number:
3184250000
Y-coupling female coupling with 2 outlets male couplings System Perrot
NW:
female 159 x lateral outlet male/male 159
Product number:
2438159159
Mortar male coupling with female thread
for hose (mm):
35
zur hydraulischen Einpressung
Product number:
2199009035
COBISUPER PU - PVC/PU suction and pressure hose for middle heavy applications
Inner-Ø (mm):
90
|
Length (m):
3,6
suitable for grain, powder, grinding and mixing plants. Very flexible and abrasion-proof PVC suction and pressure hose with internal polyurethane coat and internal copper braid.
Product number:
1324090036
Skip product gallery
COBIOCEAN SL - PVC suction and pressure hose for light applications
Inner-Ø (mm):
25
|
Length (m):
25
lightweight version for pond construction, horticulture, irrigation and drainage. Due to its dark color, the hose does not stand out in the pond. Flexible, UV-resistant and opaque.
Product number:
1078025000
COBIAIR - PVC compressed air hose
Inner-Ø (mm):
13
|
Length (m):
50
fabric hose suitable for air, water and food, conditional oil-and chemical-resistant. Suitable for hydraulic systems with low pressure.
Product number:
1201013000

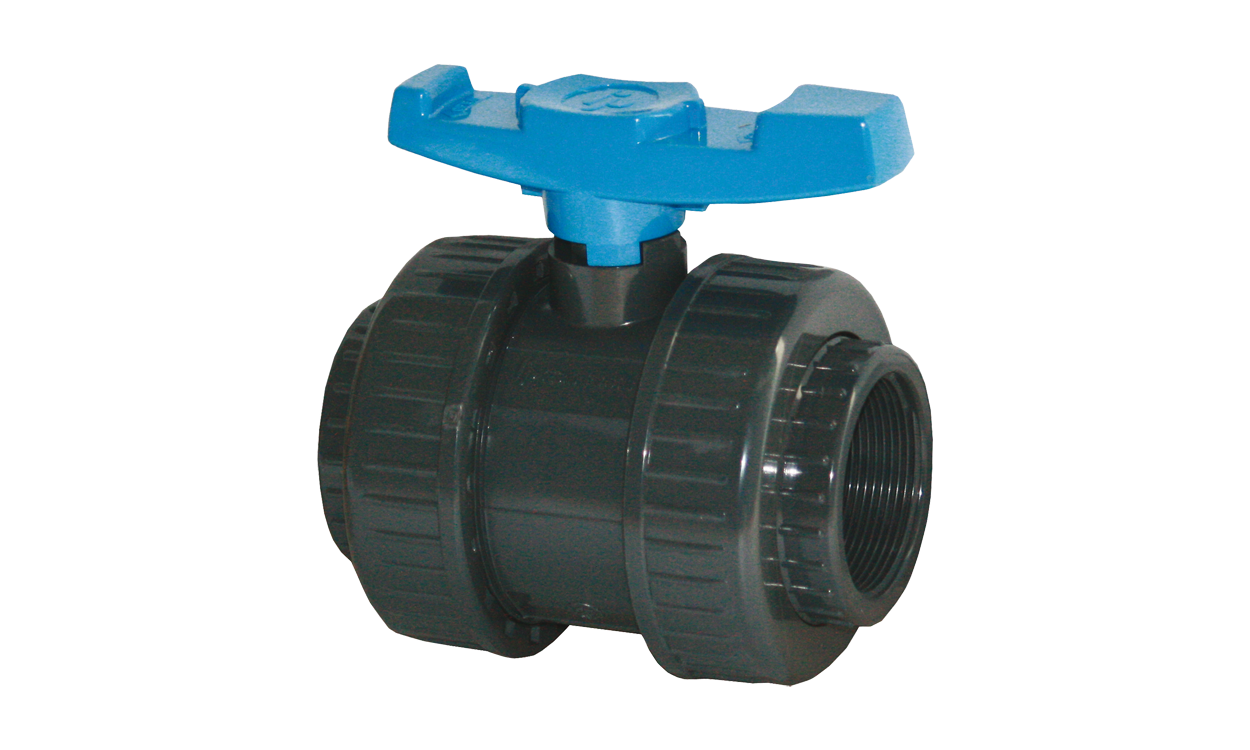

PVC ball valve
