COBIRANO PU AS - PVC/PU suction and pressure hose
Product information "COBIRANO PU AS - PVC/PU suction and pressure hose"
suitable for grit, stones, sand, grain and other abrasive media. Robust and moveable quality.
| Colour: | grey |
|---|---|
| External cover: | PVC, grey, with embedded white hard PVC spiral, outside light corrugated |
| Inlays: | copper braid |
| Internal lining: | polyurethane, red, mirror-smooth |
| Temperature range: | -25°C up to +60°C |
| Inner-Ø (mm) | Length (m) | WP (bar) | Unit | Vacuum (m WC) | wall thickness (mm) | weight (g) | Outer-Ø (mm) | bending radius (mm) | Product Number | Delivery Time | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 80 | 30 | 3 | meter | 9 | 6 | 1850 | 92 | 320 | 1334080000 | ||
| 90 | 30 | 3 | meter | 9 | 6,2 | 2150 | 102,4 | 360 | 1334090000 | ||
| 90 | 3,7 | 3 | piece | 9 | 6,2 | 2150 | 102,4 | 360 | 1334090037 | ||
| 90 | 5,1 | 3 | piece | 9 | 6,2 | 2150 | 102,4 | 360 | 1334090051 | ||
| 90 | 5,9 | 3 | piece | 9 | 6,2 | 2150 | 102,4 | 360 | 1334090059 | ||
| 102 | 30 | 3 | meter | 8,5 | 7 | 2700 | 116 | 410 | 1334102000 | ||
| 102 | 4,9 | 3 | piece | 8,5 | 7 | 2700 | 116 | 410 | 1334102049 | ||
| 102 | 5,7 | 3 | piece | 8,5 | 7 | 2700 | 116 | 410 | 1334102057 | ||
| 102 | 7 | 3 | piece | 8,5 | 7 | 2700 | 116 | 410 | 1334102070 |
Product data sheet
Skip product gallery
COBISUPER PU - PVC/PU suction and pressure hose for middle heavy applications
suitable for grain, powder, grinding and mixing plants. Very flexible and abrasion-proof PVC suction and pressure hose with internal polyurethane coat and internal copper braid.
Product number:
MASTER-1324
Skip product gallery
Female coupling with female thread type D - System Kamlok Aluminium
with stainless steel lever
Product number:
MASTER-2163
COBI Tension jaw clamps W1
wide-band clamp with rounded clamp band edgesScrew with a full bolt
Product number:
MASTER-1521
Skip product gallery
Pipe double nipple no. 23 galvanized
Male thread:
3/4"
|
length (mm):
60
both sides male thread according to DIN 2982
Product number:
3750019060
Y-coupling female coupling with 2 outlets male couplings System Perrot
NW:
female 108 x lateral outlet male/male 108
Product number:
2438108108
COBIRAIN L - Robust nitrile flat hose, lighter version
Inner-Ø (mm):
90
|
Length (m):
Abschnitt
optimal applicable for irrigation plants, industry and construction, oil-, fuel-resistant and resistant to diluted alkalis and diluted acids. High abrasion resistance due to longitudinal grooves in the outer cover. Universal flat hose with high tear resistance. Aging, UV and ozone resistant.
Product number:
1033090000abs
COBIFLAT M2 - Middle-heavy PVC flat hose, double layer
Inner-Ø (mm):
90
|
Length (m):
100
Universally applicable two-layer medium-heavy flat hose for construction, industry and agriculture. Ideally suited as a pressure hose for irrigation. As an inlet and outlet hose for water and other media, can be rolled up flat. Robust and durable quality.
Product number:
1036090000
Compressed air full screw-connection with safety collar
Female thread:
3/4"
|
for hose (mm):
19
for inclusion with hose clapms with safety collar. For compressed air and water
Product number:
2210019019
COBIOIL K - Oil- and petrol-resistant PVC suction and pressure hose
Inner-Ø (mm):
80
|
Length (m):
30
suitable for loading and unloading tank trucks, for passing gasoline, petroleum, heating oil and mineral oils.
Product number:
1419080000
COBIDUST KK - PVC suction and blast hose
Inner-Ø (mm):
38
|
Length (m):
Abschnitt
suitable for suction of air, fumes, gas, powders, sawing, dust. For aerating and conditioning plants, wood working plants, for agriculture as drill machine hose, for conveying of gaseous media. Very light and flexible quality. Resistant to atmospheric influences and chemical substances.
Product number:
1263038000abs
PP clamp saddle
Female thread:
1"
|
d:
110
with reinforcement ring and female thread, anti-rotation system for PE pipes, flat gasket
Product number:
4456110025
Half screw fitting assortment for COBIKANTEX
NW:
19
Screw socket and cone packing with union nut
Product number:
2986019000
Reversal piece both sides female coupling System Perrot
NW:
female 159 x female 108
Product number:
2430159108
COBIRANO PU AS - PVC/PU suction and pressure hose
Inner-Ø (mm):
80
|
Length (m):
30
suitable for grit, stones, sand, grain and other abrasive media. Robust and moveable quality.
Product number:
1334080000
Adapter nipple for hand screw coupling with male thread
Male thread:
1/4"
M22 x 1,5 male thread
Product number:
6115006001
COBIWATER PLUS - EPDM-waterhose, multipurpose hose 20 bar
Inner-Ø (mm):
13
|
Length (m):
40
highly flexible service water hose for cold and hot water for particularly high requirements. Resistant to chemicals with low aggressiveness. Aging and weather resistant.
Product number:
1006013000
COBIOIL 20 - Oil- and petrol resistant pressure hose 20 bar
Inner-Ø (mm):
8
|
Length (m):
40
suitable for mineral oil products with a max. aromatic content of 50%, biodiesel (RME) up to 100%, LPG and natural gas. Heat, oil, weather and aging resistant.
Product number:
1429008000
PP clamp saddle
Female thread:
1 1/4"
|
d:
160
with reinforcement ring and female thread, anti-rotation system for PE pipes, flat gasket
Product number:
4456160032
Alu suction coupling with hose nozzle with sawtooth Typ I System Storz
NW:
110-A
|
for hose (mm):
102
Product number:
2113110102
COBIORPU ME AS - Polyurethane exhaust ventilation hose for middle heavy applications
Inner-Ø (mm):
102
|
Length (m):
30
for abrasive media such as pellets, granulates and dust. Finds optimal application in the plastic and ceramic Industry. Can be used in woodworking under severe conditions. Antistatic thanks to revolving copper braid. Resistant to a variety of chemical substances. UV, ozone and weather resistant. Not resistant to microbes and hydrolysis.
Product number:
1343102000
COBIFOOD SP - Food suction and pressure hose
Inner-Ø (mm):
19
|
Length (m):
Abschnitt
suitable for delivery of milk, beer and wine and other beverages and foods with a pH-value > 5, animal and vegetable fat-and oil-resistant.
Product number:
1151019000abs
COBIFLAT M2 - Middle-heavy PVC flat hose, double layer
Inner-Ø (mm):
76
|
Length (m):
100
Universally applicable two-layer medium-heavy flat hose for construction, industry and agriculture. Ideally suited as a pressure hose for irrigation. As an inlet and outlet hose for water and other media, can be rolled up flat. Robust and durable quality.
Product number:
1036076000
Female coupling with flaked hose nozzle System Perrot stainless steel
NW:
70
|
for hose (mm):
60
type Optima
Product number:
2516070060
Brass sleeve ball valve for potable water
Female thread:
1/2"
both sides female thread
with full bore, useable for potable water according to DIN EN 13828 and DVGW-W 570
Product number:
3038013000
Slide flat valve soft sealing
DN:
250
both sides flanges PN 10, with hand wheel and not rising spindle, overall length according to F4
Product number:
8475250000
PVC T-fitting 90°
Female thread:
1 1/4"
|
d:
40
bonding socket x female thread x bonding socket with reinforcement ring
Product number:
4220040032
Half press fitting assortment for COBIPOLYKAN 200
NW:
13
Press dowel and cone packing with union nut
Product number:
2975013000
COBIDUST STEAM - High temperature exhaust ventilation hose
Inner-Ø (mm):
90
|
Length (m):
20
suitable for suction of hot air and fumes, good resistance against chemicals. Very light, flexible and abrasion proof quality.
Product number:
1278090000
Alu fixed coupling with female thread, moveable System Storz
NW:
110-A
|
Female thread:
4"
Product number:
2116110100
PP clamp saddle
Female thread:
1"
|
d:
75
with reinforcement ring and female thread, anti-rotation system for PE pipes, flat gasket
Product number:
4456075025
Brass sleeve ball valve type COBI with butterfly handle
female thread / male thread:
1/2"
one side female thread, other side male thread
with full bore, useable for not aggressive media
Product number:
3055013000
Pipe double nipple no. 23 black
Male thread:
1"
|
length (mm):
180
both sides male thread according to DIN 2982
Product number:
3850025180
COBISTEAM EN - High-pressure hot steam hose 18 bar
Inner-Ø (mm):
51
|
Length (m):
Abschnitt
for conveying saturated steam and hot water in closed systems within the chemical, petrochemical and construction industries. Good chemical resistance.
Caution: Use only suitable fittings according to EN 14423.
Product number:
1108051000abs
Male coupling with flaked hose nozzle System Perrot stainless steel
NW:
70
|
for hose (mm):
60
type Optima
Product number:
2515070060
COBIFOOD STAR SP - Milk handling hose
Inner-Ø (mm):
50
|
Length (m):
40
for liquid, fatty and non-fatty foods such as wine, beer, milk, juice, alcohol up to 96%. Equipment of unloading stations, stationary processing and filling plants, silo vehicles and as a milk collection hose.
Product number:
1120050000
COBIBLACK STAR - High-flexible PVC suction and pressure hose
Inner-Ø (mm):
152
|
Length (m):
4
suitable for water, sewage and feces. Suitable as PVC suction hose and extension hose for manure. For irrigation, agriculture, construction and industry. Highly flexible and cold-resistant quality.
Product number:
1098152004
COBIPUR S - Heavy polyurethane suction and conveying hose, antistatic
Inner-Ø (mm):
100
|
Length (m):
10
suitable for sharp-edged media, granulates, gravel, sand, glass. Especially suitable for suction dredgers. Special model for heavy applications. Not resistant to microbes and hydrolysis. Good resistance to oil, gasoline and chemicals. Absolutely seamless and smooth inner wall, optimal flow characteristics.
Product number:
1330100000
PVC table duct for polyester tank
d:
25
|
female thread / male thread:
1" / 1"
bonding socket x male thread x male thread
Product number:
4429025025
Compressed air full screw-connection with safety collar
Female thread:
1"
|
for hose (mm):
13
for inclusion with hose clapms with safety collar. For compressed air and water
Product number:
2210025013
COBIKANTEX 250 - Rubber sewer cleaning hose 250 bar
Inner-Ø (mm):
13
|
Length (m):
120
lightweight, high flexible and extremely abrasion-resistant rubber sewer cleaning hose. The light weight and low bending radius allow extremely easy handling. The external cover is smooth and very resistant to abrasion and to oil and weathering effects. Pressed with fittings on the one side AGR (MT) on the other side DKR (FT).
Product number:
1481013120
Pipe double nipple no. 23 black
Male thread:
1 1/4"
|
length (mm):
120
both sides male thread according to DIN 2982
Product number:
3850032120
COBIPUR S - Heavy polyurethane suction and conveying hose, antistatic
Inner-Ø (mm):
90
|
Length (m):
10
suitable for sharp-edged media, granulates, gravel, sand, glass. Especially suitable for suction dredgers. Special model for heavy applications. Not resistant to microbes and hydrolysis. Good resistance to oil, gasoline and chemicals. Absolutely seamless and smooth inner wall, optimal flow characteristics.
Product number:
1330090000
Half screw fitting assortment for COBIKANTEX
NW:
25
Screw socket and cone packing with male thread
Product number:
2981025000
COBIDUST KK - PVC suction and blast hose
Inner-Ø (mm):
25
|
Length (m):
50
suitable for suction of air, fumes, gas, powders, sawing, dust. For aerating and conditioning plants, wood working plants, for agriculture as drill machine hose, for conveying of gaseous media. Very light and flexible quality. Resistant to atmospheric influences and chemical substances.
Product number:
1263025000
PVC table duct for polyester tank
d:
75 x 90
|
female thread / male thread:
3"
bonding socket x connection x male thread
Product number:
4438075075
Malleable cast iron Reducing double nipple no. 245
Male thread:
2" x 1 1/2"
both sides male thread
Product number:
3725050038
Skip product gallery

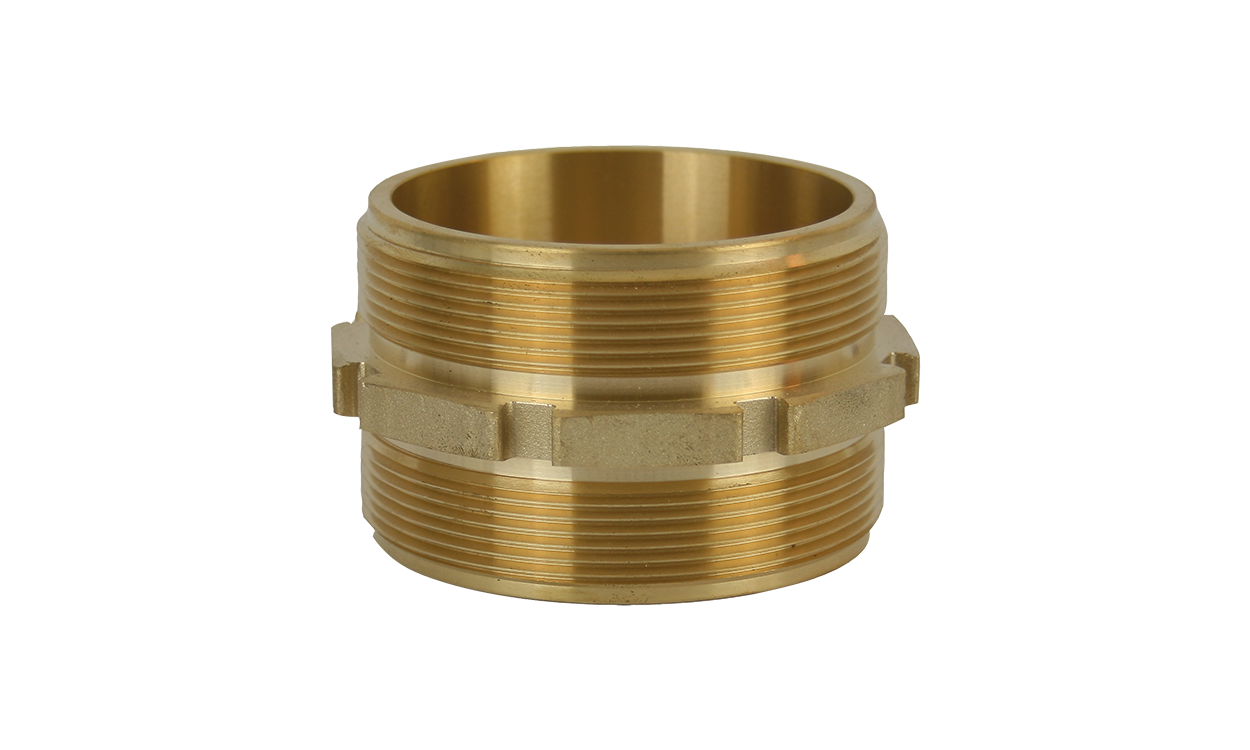

Brass double nipple TW
