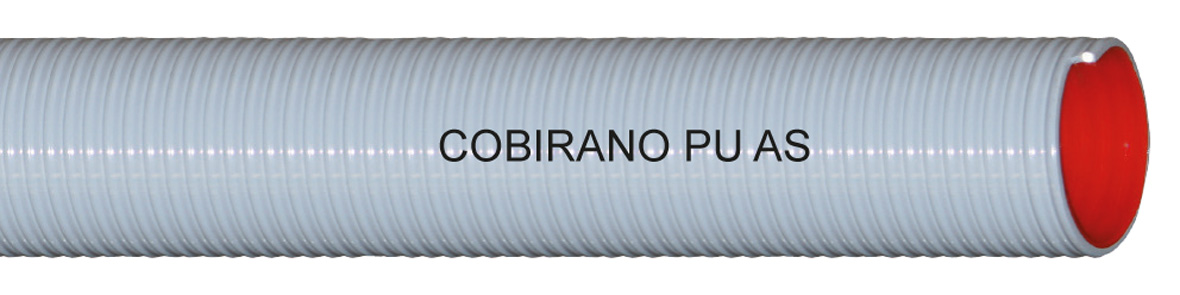

COBIRANO PU AS - PVC/PU suction and pressure hose
Product information "COBIRANO PU AS - PVC/PU suction and pressure hose"
suitable for grit, stones, sand, grain and other abrasive media. Robust and moveable quality.
| Colour: | grey |
|---|---|
| External cover: | PVC, grey, with embedded white hard PVC spiral, outside light corrugated |
| Inlays: | copper braid |
| Internal lining: | polyurethane, red, mirror-smooth |
| Temperature range: | -25°C up to +60°C |
| Inner-Ø (mm) | Length (m) | WP (bar) | Unit | Vacuum (m WC) | wall thickness (mm) | weight (g) | Outer-Ø (mm) | bending radius (mm) | Product Number | Delivery Time | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 80 | 30 | 3 | meter | 9 | 6 | 1850 | 92 | 320 | 1334080000 | ||
| 90 | 30 | 3 | meter | 9 | 6,2 | 2150 | 102,4 | 360 | 1334090000 | ||
| 90 | 3,7 | 3 | piece | 9 | 6,2 | 2150 | 102,4 | 360 | 1334090037 | ||
| 90 | 5,1 | 3 | piece | 9 | 6,2 | 2150 | 102,4 | 360 | 1334090051 | ||
| 90 | 5,9 | 3 | piece | 9 | 6,2 | 2150 | 102,4 | 360 | 1334090059 | ||
| 102 | 30 | 3 | meter | 8,5 | 7 | 2700 | 116 | 410 | 1334102000 | ||
| 102 | 4,9 | 3 | piece | 8,5 | 7 | 2700 | 116 | 410 | 1334102049 | ||
| 102 | 5,7 | 3 | piece | 8,5 | 7 | 2700 | 116 | 410 | 1334102057 | ||
| 102 | 7 | 3 | piece | 8,5 | 7 | 2700 | 116 | 410 | 1334102070 |
Product data sheet
Skip product gallery
Female coupling with female thread type D - System Kamlok Aluminium
with stainless steel lever
Product number:
MASTER-2163
COBI Tension jaw clamps W1
wide-band clamp with rounded clamp band edgesScrew with a full bolt
Product number:
MASTER-1521
Skip product gallery

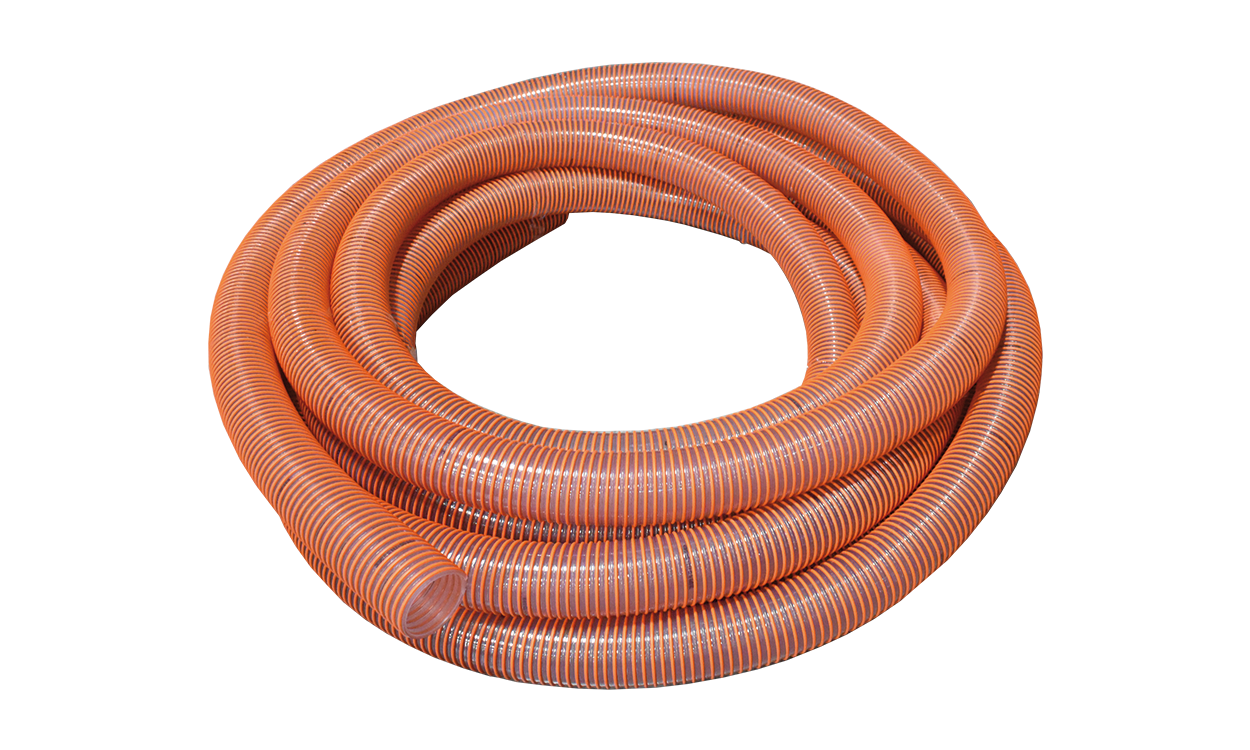

COBISUPER PU - PVC/PU suction and pressure hose for middle heavy applications
