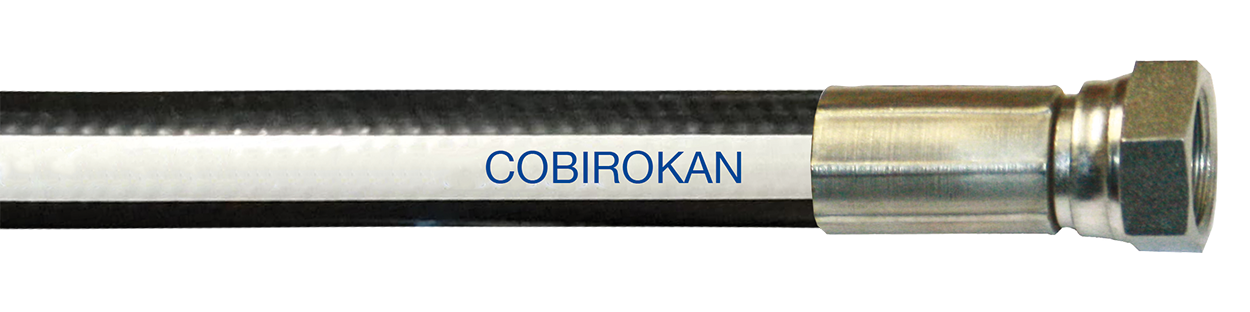

COBIROKAN - Rubber tube cleaning hose 200 bar
Product information "COBIROKAN - Rubber tube cleaning hose 200 bar"
light, abrasion-resistant and highly flexible rubber pipe cleaning hose ideal for cleaning narrow house connections. Also used as an inlet hose for camera TV inspection. Pressed with fittings on the one side AGR (MT) on the other side DKR (FT).
| Colour: | black |
|---|---|
| External cover: | rubber, smooth, high abrasion-proof, black |
| Inlays: | steel fabric |
| Internal lining: | synthetic rubber, black |
| Safety: | 2,5:1 |
| Temperature range: | -40°C up to +70°C |
| Inner-Ø (mm) | Length (m) | Unit | WP (bar) | wall thickness (mm) | weight (g) | bending radius (mm) | Outer-Ø (mm) | BP (bar) | Product Number | Delivery Time | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 12,7 | 40 | piece | 200 | 3,15 | 430 | 65 | 19 | 500 | 1484012040 | ||
| 12,7 | 50 | piece | 200 | 3,15 | 430 | 65 | 19 | 500 | 1484012050 | ||
| 12,7 | 60 | piece | 200 | 3,15 | 430 | 65 | 19 | 500 | 1484012060 | ||
| 12,7 | 80 | piece | 200 | 3,15 | 430 | 65 | 19 | 500 | 1484012080 | ||
| 12,7 | 100 | piece | 200 | 3,15 | 430 | 65 | 19 | 500 | 1484012100 | ||
| 12,7 | 120 | piece | 200 | 3,15 | 430 | 65 | 19 | 500 | 1484012120 | ||
| 16 | 80 | piece | 200 | 3,2 | 450 | 80 | 22,4 | 500 | 1484016080 | ||
| 16 | 120 | piece | 200 | 3,2 | 450 | 80 | 22,4 | 500 | 1484016120 |
Product data sheet
