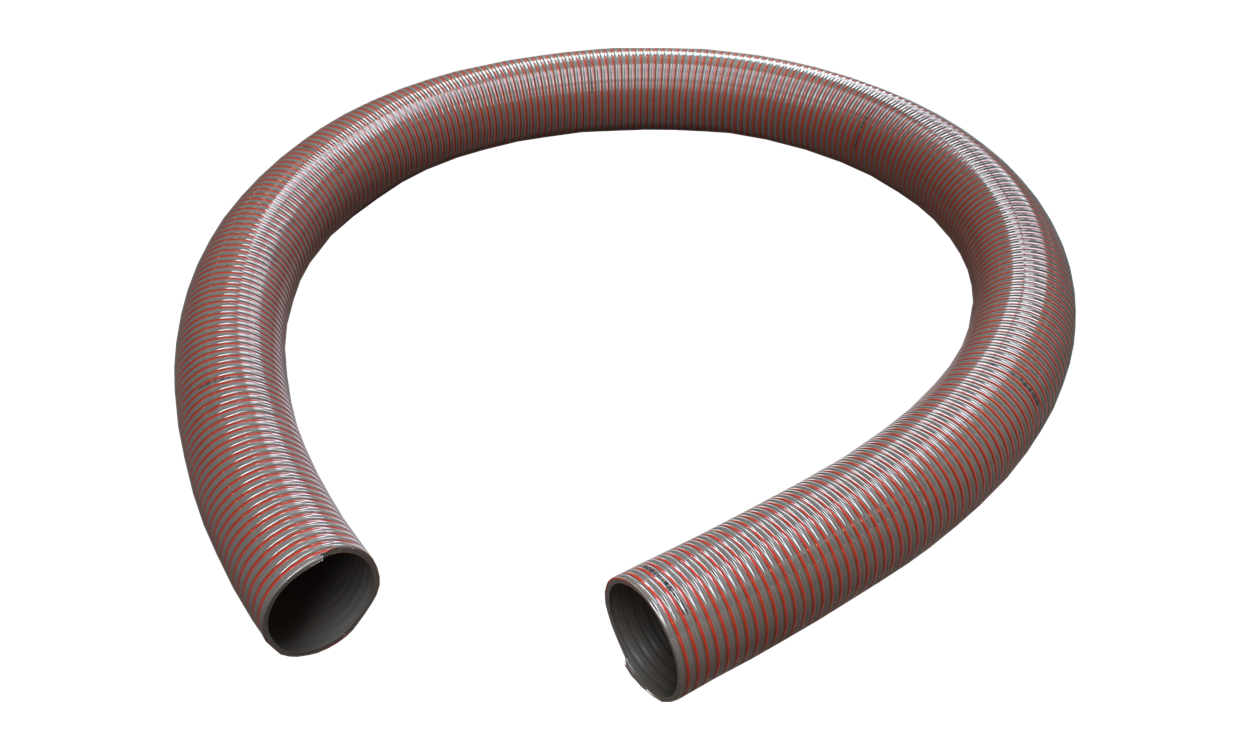

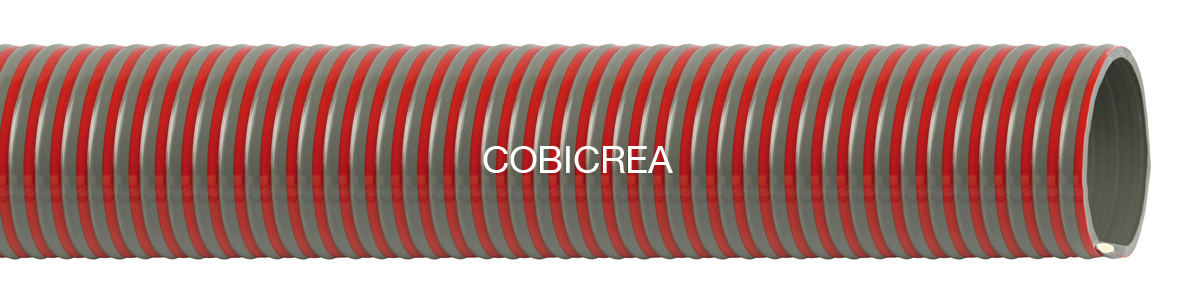

COBICREA - Slurry hose, High-flexible PVC suction and pressure hose
Product information "COBICREA - Slurry hose, High-flexible PVC suction and pressure hose"
suitable for water, sewage and faeces. Ideal for use as a PVC suction hose and extension hose for liquid manure. For irrigation, agriculture, construction and industry. Highly flexible and cold-resistant quality.
| Colour: | grey/red |
|---|---|
| Safety: | 3:1 |
| Structure: | synthetic spiral hose, grey with red strips, with hard PVC spiral, inside smooth, outside light corrugated |
| Temperature range: | -25°C up to +60°C |
| Inner-Ø (mm) | Length (m) | Unit | Vacuum (m WC) | WP (bar) | Outer-Ø (mm) | weight (g) | wall thickness (mm) | bending radius (mm) | Product Number | Delivery Time | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 25 | 50 | meter | 10 | 6 | 32,6 | 410 | 3,8 | 100 | 1082025000 | ||
| 32 | 50 | meter | 10 | 6 | 40,6 | 590 | 4,3 | 130 | 1082032000 | ||
| 38 | 50 | meter | 10 | 5 | 46,8 | 690 | 4,4 | 155 | 1082038000 | ||
| 51 | 50 | meter | 10 | 4 | 60,8 | 990 | 4,9 | 200 | 1082051000 | ||
| 60 | 50 | meter | 9 | 4 | 70,4 | 1230 | 5,2 | 240 | 1082060000 | ||
| 63 | 50 | meter | 9 | 4 | 74 | 1390 | 5,5 | 260 | 1082063000 | ||
| 76 | 30 | meter | 9 | 3 | 87,4 | 1730 | 5,7 | 310 | 1082076000 | ||
| 76 | 50 | meter | 9 | 3 | 87,4 | 1730 | 5,7 | 310 | 1082076050 | ||
| 80 | 30 | meter | 9 | 3 | 92 | 1890 | 6 | 320 | 1082080000 | ||
| 90 | 30 | meter | 9 | 3 | 102,6 | 2200 | 6,3 | 360 | 1082090000 | ||
| 90 | 3,6 | piece | 9 | 3 | 102,6 | 2200 | 6,3 | 360 | 1082090036 | ||
| 90 | 4 | piece | 9 | 3 | 102,6 | 2200 | 6,3 | 360 | 1082090042 | ||
| 90 | 4,9 | piece | 9 | 3 | 102,6 | 2200 | 6,3 | 360 | 1082090049 | ||
| 90 | 5,6 | piece | 9 | 3 | 102,6 | 2200 | 6,3 | 360 | 1082090056 | ||
| 102 | 30 | meter | 8,5 | 3 | 116,4 | 2890 | 7,2 | 410 | 1082102000 | ||
| 102 | 2 | piece | 8,5 | 3 | 116,4 | 2890 | 7,2 | 410 | 1082102002 | ||
| 102 | 3 | piece | 8,5 | 3 | 116,4 | 2890 | 7,2 | 410 | 1082102003 | ||
| 102 | 4,9 | piece | 8,5 | 3 | 116,4 | 2890 | 7,2 | 410 | 1082102049 | ||
| 102 | 6 | piece | 8,5 | 3 | 116,4 | 2890 | 7,2 | 410 | 1082102060 | ||
| 110 | 30 | meter | 8,5 | 3 | 124,4 | 3040 | 7,2 | 450 | 1082110000 | ||
| 110 | 2 | piece | 8,5 | 3 | 124,4 | 3040 | 7,2 | 450 | 1082110002 | ||
| 110 | 3 | piece | 8,5 | 3 | 124,4 | 3040 | 7,2 | 450 | 1082110003 | ||
| 120 | 30 | meter | 8 | 2,5 | 134,8 | 3410 | 7,4 | 480 | 1082120000 | ||
| 120 | 2 | piece | 8 | 2,5 | 134,8 | 3410 | 7,4 | 480 | 1082120002 | ||
| 120 | 3 | piece | 8 | 2,5 | 134,8 | 3410 | 7,4 | 480 | 1082120003 | ||
| 127 | 30 | meter | 8 | 2,5 | 142 | 3670 | 7,5 | 510 | 1082127000 | ||
| 127 | 2 | piece | 8 | 2,5 | 142 | 3670 | 7,5 | 510 | 1082127002 | ||
| 127 | 3 | piece | 8 | 2,5 | 142 | 3670 | 7,5 | 510 | 1082127003 | ||
| 133 | 20 | meter | 9 | 2,5 | 149,4 | 4400 | 8,2 | 520 | 1082133000 | ||
| 133 | 2 | piece | 9 | 2,5 | 149,4 | 4400 | 8,2 | 520 | 1082133002 | ||
| 133 | 3 | piece | 9 | 2,5 | 149,4 | 4400 | 8,2 | 520 | 1082133003 | ||
| 152 | 20 | meter | 8 | 2 | 169,8 | 5280 | 8,9 | 610 | 1082152000 | ||
| 152 | 2 | piece | 8 | 2 | 169,8 | 5280 | 8,9 | 610 | 1082152002 | ||
| 152 | 3 | piece | 8 | 2 | 169,8 | 5280 | 8,9 | 610 | 1082152003 | ||
| 152 | 4 | piece | 8 | 2 | 169,8 | 5280 | 8,9 | 610 | 1082152004 | ||
| 152 | 5 | piece | 8 | 2 | 169,8 | 5280 | 8,9 | 610 | 1082152005 | ||
| 152 | 6 | piece | 8 | 2 | 169,8 | 5280 | 8,9 | 610 | 1082152006 | ||
| 160 | 20 | meter | 7 | 2 | 178,6 | 5670 | 9,3 | 660 | 1082160000 | ||
| 160 | 2 | piece | 7 | 2 | 178,6 | 5670 | 9,3 | 660 | 1082160002 | ||
| 160 | 3 | piece | 7 | 2 | 178,6 | 5670 | 9,3 | 660 | 1082160003 | ||
| 203 | 10 | meter | 7 | 1,5 | 227,2 | 9900 | 12,1 | 850 | 1082203000 | ||
| 203 | 2 | piece | 7 | 1,5 | 227,2 | 9900 | 12,1 | 850 | 1082203002 | ||
| 203 | 3 | piece | 7 | 1,5 | 227,2 | 9900 | 12,1 | 850 | 1082203003 | ||
| 203 | 4 | piece | 7 | 1,5 | 227,2 | 9900 | 12,1 | 850 | 1082203004 | ||
| 203 | 5 | piece | 7 | 1,5 | 227,2 | 9900 | 12,1 | 850 | 1082203005 | ||
| 203 | 6 | piece | 7 | 1,5 | 227,2 | 9900 | 12,1 | 850 | 1082203006 | ||
| 250 | 10 | meter | 7 | 1,2 | 276,2 | 12270 | 13,1 | 1500 | 1082250000 |
Product data sheet
Skip product gallery
Female coupling with crimped hose nozzle System Perrot
NW:
216
|
for hose (mm):
200
Product number:
2410216200
Male coupling with crimped hose nozzle System Perrot
NW:
216
|
for hose (mm):
200
Product number:
2415216200
Skip product gallery
Half press fitting assortment for COBIKANTEX
NW:
13
Screw socket and cone packing with union nut
Product number:
2993013000
COBIFLEX PRO - High-grade, crease resistant PVC water hose, twist free
Inner-Ø (mm):
12,5
|
Length (m):
25
suitable as standard waterhose for irrigation, gardening, agriculture, industry and construction
Product number:
1010012025
Malleable cast iron Reducing nipple no. 241
male thread / female thread:
3/4" x 1/2"
one side male thread, other side female thread
Product number:
3724019013
Pipe double nipple no. 23 galvanized
Male thread:
3/4"
|
length (mm):
80
both sides male thread according to DIN 2982
Product number:
3750019080
COBISINTEC 13 - Synthetic construction and industry hose 13 bar
Inner-Ø (mm):
52-C
|
Length (m):
20
suitable as construction site hose and for water duct. All-weather flat hose, rot-proof, abrasion-resistant and durable. Assembled with aluminium couplings system Storz with long tail.
Product number:
1040052020
PVC adapter nipple
Male thread:
1"
|
d:
25 x 32
made of pipe, bonding socket/bonding connection x male thread
Product number:
4314025025
Tip
COBICHEM PLUS UPE - Chemical suction and pressure hose UP-E inlay according to EN 12115
Inner-Ø (mm):
25
|
Length (m):
Abschnitt
suitable for discharge of many chemicals, acids and alkalis. For loading and unloading of tankers and railway wagons and the chemical industry.
Product number:
1455025000abs
Food coupling with male thread
NW coupling x for hose (mm):
DN40 x 38 mm
for shell-inclusion with safety collar
Product number:
2715038000

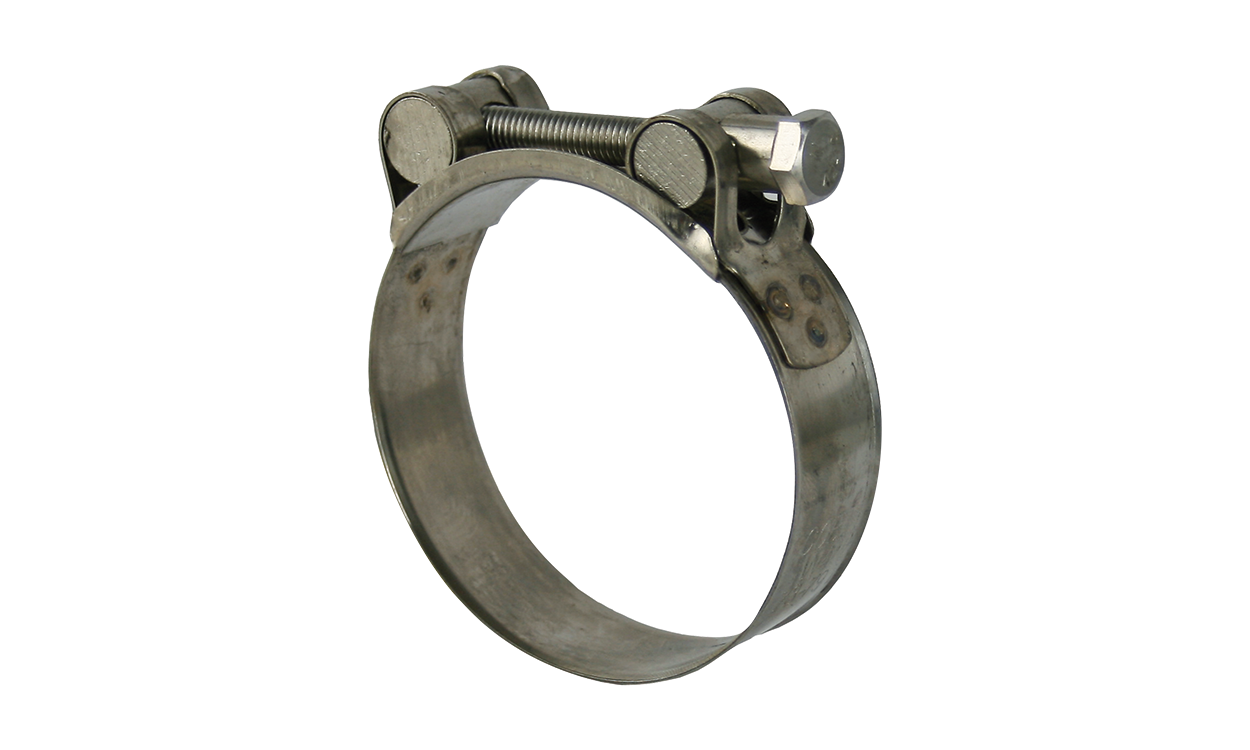

Tension jaw clamps W2
Clamping range (mm):
104-112
wide-band clamp with open able bridge piece and with rounded clamp band edges
Product number:
1525104112
DVGW-PP screw connection
Male thread:
2"
|
d:
50
one side screw connection, other side male thread
Product number:
4601050050
Tension jaw clamps W2
Clamping range (mm):
73-79
wide-band clamp with open able bridge piece and with rounded clamp band edges
Product number:
1525073079
COBIDUST L - Super lightweight polyurethane suction and blast hose, antistatic
Inner-Ø (mm):
90
|
Length (m):
10
for vapours, small industrial cleaning and suction plants. Can be used as protection sleeve. Suitable for suction of smoke and deciduous gases, dust suction of dry food according to EU 10/2011. Very light, flexible and abrasion-proof quality. Resistant to mineral oils, ageing, ozone and atmospherical agents, axially compressible about 5:1. Antistatic in accordance with TRBS 2153 by grounding the spiral. Not resistant to microbes and hydrolysis.
Product number:
1270090000
DVGW-PP elbow 90°
Female thread:
1/2"
|
d:
32
one side screw connection, other side female thread
Product number:
4605032013
Brass suction hose connection with male thread
for hose (mm) x male thread:
25 x 1“ mt
useable for clamp-inclusion, corrugated hose connection with male thread, hexagon collar, flat sealing
Product number:
3330025025
COBIORPU - Light weight Polyurethane exhaust ventilation hose
Inner-Ø (mm):
100
|
Length (m):
20
suitable for powder, grain mixture, wood shaving, dust, isolating materials, grass and deciduous exhaust ventilation, food and chemicals. Very moveable and abrasion-proof PU hose for light applications. Microbes and hydrolysis resistant.
Product number:
1333100000
Pipe double nipple no. 23 galvanized
Male thread:
1 1/2"
|
length (mm):
40
both sides male thread according to DIN 2982
Product number:
3750038040
Malleable cast iron Reducing nipple no. 241
male thread / female thread:
1 1/4" x 1"
one side male thread, other side female thread
Product number:
3724032025
PVC Threaded socket (Typ COBI)
Female thread:
4"
|
d:
110
without reinforcement ring bonding socket x female thread
Product number:
4295110100
Air outlet with female thread
DN:
7,2
|
Female thread:
1/2"
single shut-off
Product number:
7145013000
Stainless steel hexagon double nipple
Male thread:
1/4"
both sides male thread
Product number:
5025006000
COBISUPERFLEX - High-flexible PVC suction and pressure hose
Inner-Ø (mm):
152
|
Length (m):
20
suitable for municipal vehicles, irrigation and agriculture. High-flexible and cold-resistant quality.
Product number:
1083152000
PVC adaptor union
d:
16
injection moulding, bonding socket x female thread
Product number:
4436016010
COBIDUST L - Super lightweight polyurethane suction and blast hose, antistatic
Inner-Ø (mm):
130
|
Length (m):
10
for vapours, small industrial cleaning and suction plants. Can be used as protection sleeve. Suitable for suction of smoke and deciduous gases, dust suction of dry food according to EU 10/2011. Very light, flexible and abrasion-proof quality. Resistant to mineral oils, ageing, ozone and atmospherical agents, axially compressible about 5:1. Antistatic in accordance with TRBS 2153 by grounding the spiral. Not resistant to microbes and hydrolysis.
Product number:
1270130000
PVC table duct for polyester tank
d:
40
|
female thread / male thread:
1 1/2" / 1 3/4"
bonding socket x male thread x male thread
Product number:
4429040044
Malleable cast iron Reducing double nipple no. 245
Male thread:
3/4" x 3/8"
both sides male thread
Product number:
3725019010
PVC butterfly valve type VDL
d:
160
VDL Butterfly valve made of PVC-U with red grid lever
Product number:
4581160000
COBIORPU - Light weight Polyurethane exhaust ventilation hose
Inner-Ø (mm):
25
|
Length (m):
Abschnitt
suitable for powder, grain mixture, wood shaving, dust, isolating materials, grass and deciduous exhaust ventilation, food and chemicals. Very moveable and abrasion-proof PU hose for light applications. Microbes and hydrolysis resistant.
Product number:
1333025000abs
Female coupling with hose connection type C - System Kamlok stainless steel
NW:
2"
with stainless steel lever
Product number:
2171050000
COBIDUST L - Super lightweight polyurethane suction and blast hose, antistatic
Inner-Ø (mm):
120
|
Length (m):
10
for vapours, small industrial cleaning and suction plants. Can be used as protection sleeve. Suitable for suction of smoke and deciduous gases, dust suction of dry food according to EU 10/2011. Very light, flexible and abrasion-proof quality. Resistant to mineral oils, ageing, ozone and atmospherical agents, axially compressible about 5:1. Antistatic in accordance with TRBS 2153 by grounding the spiral. Not resistant to microbes and hydrolysis.
Product number:
1270120000
Malleable cast iron Reducing double nipple no. 245
Male thread:
1 1/2" x 3/4"
both sides male thread
Product number:
3725038019
Alu fixed coupling with female thread Type I System Storz
NW:
52-C
|
Female thread:
1 1/2"
Product number:
2111052038
Male coupling with hose connection type E - System Kamlok stainless steel
NW:
1 1/4"
Product number:
2172032000
COBIORPU - Light weight Polyurethane exhaust ventilation hose
Inner-Ø (mm):
127
|
Length (m):
Abschnitt
suitable for powder, grain mixture, wood shaving, dust, isolating materials, grass and deciduous exhaust ventilation, food and chemicals. Very moveable and abrasion-proof PU hose for light applications. Microbes and hydrolysis resistant.
Product number:
1333127000abs
Alu fixed coupling with female thread, moveable System Storz
NW:
110-A
|
Female thread:
4"
Product number:
2116110100
Tension jaw clamps W2
Clamping range (mm):
23-25
wide-band clamp with open able bridge piece and with rounded clamp band edges
Product number:
1525023025
Alu pressure coupling for clamping rings with short hose nozzle System Storz
NW:
100
|
for hose (mm):
101,5
for the special integration of flat hoses with clamping rings, with short hose nozzle
Product number:
2140100000
COBIRANO PU AS - PVC/PU suction and pressure hose
Inner-Ø (mm):
90
|
Length (m):
30
suitable for grit, stones, sand, grain and other abrasive media. Robust and moveable quality.
Product number:
1334090000
Female coupling System Perrot
NW:
70
for weld on, with assembled lever arrangement and rubber ring
Product number:
2400070000
Brass sleeve ball valve type COBI
Female thread:
1 1/4"
both sides female thread
with full bore, useable for not aggressive media
Product number:
3030032000
COBITON 10 SP T - Shotcreting hose
Inner-Ø (mm):
38
|
Length (m):
40
jet hose for dry-concrete-shotmachines, water engineering, tunneling, mining and for building. Advantage: extremely wear-resistant, big core, horizontal solid and streamlined, for all conventional fittings.
Product number:
1338038000
PVC socket with male thread
Male thread:
1 1/4"
|
d:
50 x 63
bonding connection/bonding socket x male thread
Product number:
4310050032
COBIORPU - Light weight Polyurethane exhaust ventilation hose
Inner-Ø (mm):
180
|
Length (m):
10
suitable for powder, grain mixture, wood shaving, dust, isolating materials, grass and deciduous exhaust ventilation, food and chemicals. Very moveable and abrasion-proof PU hose for light applications. Microbes and hydrolysis resistant.
Product number:
1333180000
Pipe double nipple no. 23 galvanized
Male thread:
1 1/4"
|
length (mm):
60
both sides male thread according to DIN 2982
Product number:
3750032060
Skip product gallery
COBISUPERFLEX - High-flexible PVC suction and pressure hose
Inner-Ø (mm):
152
|
Length (m):
Abschnitt
suitable for municipal vehicles, irrigation and agriculture. High-flexible and cold-resistant quality.
Product number:
1083152000abs
Male coupling with crimped hose nozzle System Perrot
NW:
159
|
for hose (mm):
152
Product number:
2415159152

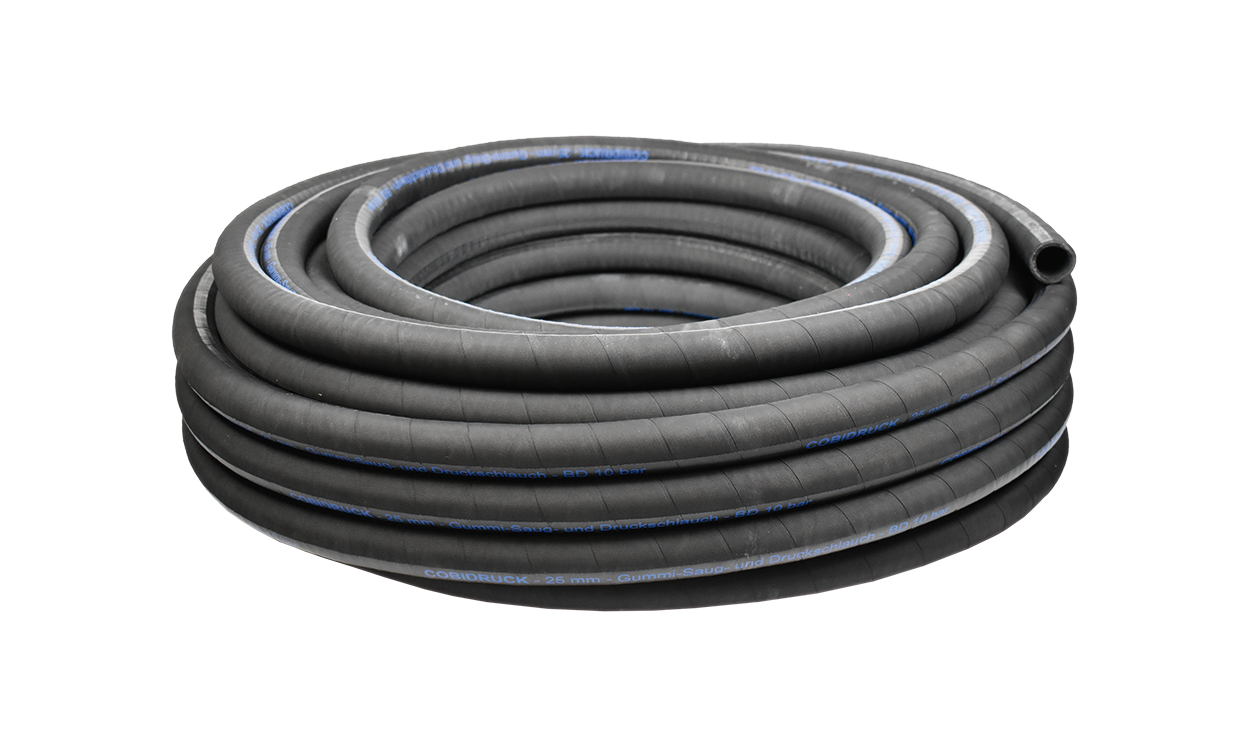

COBIOIL - Oil-and petrol-resistant pressure hose 10 bar
Inner-Ø (mm):
13
|
Length (m):
40
Highly flexible multipurpose hose suitable for mineral oil products with a max. aromatic content of 40%. Weather- and ageing-resistant. Suitable for hand pumps and electric pumps.
Product number:
1403013000
Male coupling with round flange System Perrot
NW:
216
DIN 2632/2633 PN 10/16 bored up to NW 159 PN 10 bored at NW 216
Product number:
2432216000
Female coupling with crimped hose nozzle System Perrot
NW:
216
|
for hose (mm):
200
Product number:
2410216200
COBI Tension jaw clamps W1
Clamping range (mm):
131-139
wide-band clamp with rounded clamp band edgesScrew with a full bolt
Product number:
1521131139
Tension jaw clamps W4
Clamping range (mm):
162-174
wide-band clamp with open able bridge piece and with rounded clamp band edges
Product number:
1531162174
COBI Tension jaw clamps W1
Clamping range (mm):
214-226
wide-band clamp with rounded clamp band edgesScrew with a full bolt
Product number:
1521214226
Tension jaw clamps W4
Clamping range (mm):
213-226
wide-band clamp with open able bridge piece and with rounded clamp band edges
Product number:
1531213226
COBI Tension jaw clamps W1
Clamping range (mm):
162-174
wide-band clamp with rounded clamp band edgesScrew with a full bolt
Product number:
1521162174
