Tension jaw clamps W2
Product information "Tension jaw clamps W2"
wide-band clamp with open able bridge piece and with rounded clamp band edges
| Material: | Band/housing: rust-free steel 1.4510, AISI 430 Screw: with hexagon, steel 8.8, galvanized |
|---|
| Clamping range (mm) | Unit | Packing unit (piece) | Band width (mm) | Product Number | Delivery Time | |
|---|---|---|---|---|---|---|
| 17-19 | piece | 50 | 18 | 1525017019 | ||
| 19-21 | piece | 50 | 18 | 1525019021 | ||
| 21-23 | piece | 50 | 18 | 1525021023 | ||
| 23-25 | piece | 50 | 18 | 1525023025 | ||
| 25-27 | piece | 50 | 18 | 1525025027 | ||
| 27-29 | piece | 50 | 18 | 1525027029 | ||
| 29-31 | piece | 50 | 20 | 1525029031 | ||
| 31-34 | piece | 50 | 20 | 1525031034 | ||
| 34-37 | piece | 50 | 20 | 1525034037 | ||
| 37-40 | piece | 50 | 20 | 1525037040 | ||
| 40-43 | piece | 50 | 22 | 1525040043 | ||
| 43-47 | piece | 50 | 22 | 1525043047 | ||
| 47-51 | piece | 50 | 22 | 1525047051 | ||
| 51-55 | piece | 25 | 22 | 1525051055 | ||
| 55-59 | piece | 25 | 22 | 1525055059 | ||
| 59-63 | piece | 25 | 22 | 1525059063 | ||
| 63-68 | piece | 25 | 24 | 1525063068 | ||
| 68-73 | piece | 25 | 24 | 1525068073 | ||
| 73-79 | piece | 25 | 24 | 1525073079 | ||
| 79-85 | piece | 25 | 24 | 1525079085 | ||
| 85-91 | piece | 25 | 24 | 1525085091 | ||
| 91-97 | piece | 25 | 24 | 1525091097 | ||
| 97-104 | piece | 25 | 24 | 1525097104 | ||
| 104-112 | piece | 25 | 24 | 1525104112 | ||
| 112-121 | piece | 25 | 24 | 1525112121 | ||
| 121-130 | piece | 25 | 24 | 1525121130 | ||
| 130-140 | piece | 10 | 26 | 1525130140 | ||
| 140-150 | piece | 10 | 26 | 1525140150 | ||
| 150-162 | piece | 10 | 26 | 1525150162 | ||
| 162-174 | piece | 10 | 26 | 1525162174 | ||
| 174-187 | piece | 10 | 26 | 1525174187 | ||
| 187-200 | 10 | 26 | 1525187200 | |||
| 200-213 | piece | 10 | 26 | 1525200213 | ||
| 213-226 | piece | 10 | 26 | 1525213226 |
Product data sheet
Skip product gallery
Tension jaw clamps W4
wide-band clamp with open able bridge piece and with rounded clamp band edges
Product number:
MASTER-1531
COBI Tension jaw clamps W1
wide-band clamp with rounded clamp band edgesScrew with a full bolt
Product number:
MASTER-1521
Skip product gallery
PP T-fitting 90°
Male thread:
1"
|
d:
32
both sides screw connection, with male thread at middle connection
Product number:
4660032025
PP T-fitting 90°
Male thread:
3/4"
|
d:
20
both sides screw connection, with male thread at middle connection
Product number:
4660020019
DVGW-PP elbow 90°
Male thread:
1 1/4"
|
d:
32
one side screw connection, other side male thread
Product number:
4606032032
Brass double nipple, reduced
Male thread:
2" x 1 1/2"
both sides male thread, flat sealing
Product number:
3361050038
PP T-fitting 90°
Male thread:
1/2"
|
d:
20
both sides screw connection, with male thread at middle connection
Product number:
4660020013
COBITANK 10 SL - Oil- and petrol-resistant suction and pressure hose 10 bar
Inner-Ø (mm):
42
|
Length (m):
Abschnitt
suitable for loading and unloading of tankers and railway tank wagons. For mineral oil products with max. 50% aromatic content.
Product number:
1431042000abs
PVC pipe clip
addition2:
without clamp
|
d:
40
pipe clamps can be plugged in a line
Product number:
4459040000
PVC Socket with male thread (Typ COBI)
Male thread:
1/2"
|
d:
20 x 25
bonding socket x male thread
Product number:
4315020013
COBIKASPI - Cassettes boom hose
Inner-Ø (mm):
125
|
Length (m):
25
for all standard sewer cleaning vehicles for suction of waste water, waste and residues from the sewer. Resistant to traces of oil. Very flexible even at low temperatures and thus offers optimum running properties within the cassette of a sewer cleaning vehicle. Conductive and very resistant to abrasion.
Product number:
1420125025
Female coupling with crimped hose nozzle System Perrot
NW:
159
|
for hose (mm):
50
Product number:
2410159050
Manometer 63 mm housing, connection 1/4" male thread bottom
indicating range (bar):
0/+16
Bourdon tube pressure gauge for liquid and gaseous media, type dry.
Product number:
8125006016
PP T-fitting 90°
Male thread:
1 1/2"
|
d:
40
both sides screw connection, with male thread at middle connection
Product number:
4660040038
Brass sleeve ball valve type industry
Female thread:
2"
both sides female thread
with full bore, useable for not aggressive media
Product number:
3031050000
Brass sleeve ball valve type COBI
female thread / male thread:
1 1/2"
one side female thread, other side male thread
with full bore, useable for not aggressive media
Product number:
3045038000
Brass sleeve ball valve type COBI
female thread / male thread:
1/2"
one side female thread, other side male thread
with full bore, useable for not aggressive media
Product number:
3035013000
Female coupling with male thread System Perrot
NW:
70
|
Male thread:
2 1/2"
Product number:
2420070063
PP T-fitting 90°
Male thread:
3/4"
|
d:
32
both sides screw connection, with male thread at middle connection
Product number:
4660032019
Hose clamps 2-ear-clamps
Clamping range (mm):
23-27
suitable for easy assembling with a pliers
Product number:
1555023027
PVC Socket with male thread (Typ COBI)
Male thread:
3"
|
d:
110 x 125
bonding socket x male thread
Product number:
4315110075
PVC reducing bush type A
Female thread:
1 1/2"
|
d:
75
bonding connection x female thread, injection moulding
Product number:
4319075038
COBISUPERELASTIC - High-flexible PVC suction and pressure hose
Inner-Ø (mm):
102
|
Length (m):
50
suitable for municipal vehicles, irrigation and agriculture. High-flexible and cold-resistant quality. Outer cover particularly protected against abrasion by increased external spiral.
Product number:
1086102000
PVC Socket with male thread (Typ COBI)
Male thread:
1"
|
d:
25 x 32
bonding socket x male thread
Product number:
4315025025
Reducing piece from male to female coupling, System Perrot
NW:
male 133 x female 89
Product number:
2428133089
PVC Socket with male thread (Typ COBI)
Male thread:
3/4"
|
d:
25 x 32
bonding socket x male thread
Product number:
4315025019
PP T-fitting 90°
Male thread:
1/2"
|
d:
16
both sides screw connection, with male thread at middle connection
Product number:
4660016013
COBIDUST KK - PVC suction and blast hose
Inner-Ø (mm):
80
|
Length (m):
Abschnitt
suitable for suction of air, fumes, gas, powders, sawing, dust. For aerating and conditioning plants, wood working plants, for agriculture as drill machine hose, for conveying of gaseous media. Very light and flexible quality. Resistant to atmospheric influences and chemical substances.
Product number:
1263080000abs
Brass sleeve ball valve type COBI
female thread / male thread:
1"
one side female thread, other side male thread
with full bore, useable for not aggressive media
Product number:
3045025000
PVC threaded socket
Female thread:
3/4" x 1 1/4"
2 x female thread with reinforcement ring
Product number:
4300019032
Tension jaw clamps W4
Clamping range (mm):
121-130
wide-band clamp with open able bridge piece and with rounded clamp band edges
Product number:
1531121130
COBIFLEX SUPER - High-flexible PVC suction and pressure hose
Inner-Ø (mm):
76
|
Length (m):
Abschnitt
suitable for municipal vehicles, irrigation and agriculture. High-flexible and cold-resistant quality.
Product number:
1084076000abs
Brass sleeve ball valve type COBI
female thread / male thread:
4"
one side female thread, other side male thread
with full bore, useable for not aggressive media
Product number:
3035100000
DVGW-PP elbow 90°
Male thread:
1/2"
|
d:
25
one side screw connection, other side male thread
Product number:
4606025013
COBIFLAT M - Middle-heavy PVC flat hose
Inner-Ø (mm):
110
|
Length (m):
50
Universally applicable medium-heavy flat hose for construction, industry and agriculture. Ideally suited as a pressure hose for irrigation. As an inlet and outlet hose for water and other media, can be rolled up flat. Robust and durable quality.
Product number:
1031110050
PVC reducing bush type A
Female thread:
1/4"
|
d:
16
bonding connection x female thread, injection moulding
Product number:
4319016006
PP T-fitting 90°
Male thread:
1"
|
d:
25
both sides screw connection, with male thread at middle connection
Product number:
4660025025
PP T-fitting 90°
Male thread:
2"
|
d:
63
both sides screw connection, with male thread at middle connection
Product number:
4660063050
DVGW-PP elbow 90°
Male thread:
1 1/2"
|
d:
40
one side screw connection, other side male thread
Product number:
4606040038
PP T-fitting 90°
Male thread:
3/4"
|
d:
25
both sides screw connection, with male thread at middle connection
Product number:
4660025019
PVC reducing bush type B
Female thread:
5"
|
d:
160
bonding connection x female thread, injection moulding
Product number:
4319160125
PVC threaded socket
Female thread:
1/2" x 1/2"
2 x female thread with reinforcement ring
Product number:
4300013000
Tension jaw clamps W2
Clamping range (mm):
21-23
wide-band clamp with open able bridge piece and with rounded clamp band edges
Product number:
1525021023
Skip product gallery
Tension jaw clamps W2
Clamping range (mm):
121-130
wide-band clamp with open able bridge piece and with rounded clamp band edges
Product number:
1525121130
Tension jaw clamps W2
Clamping range (mm):
51-55
wide-band clamp with open able bridge piece and with rounded clamp band edges
Product number:
1525051055
Tension jaw clamps W2
Clamping range (mm):
91-97
wide-band clamp with open able bridge piece and with rounded clamp band edges
Product number:
1525091097

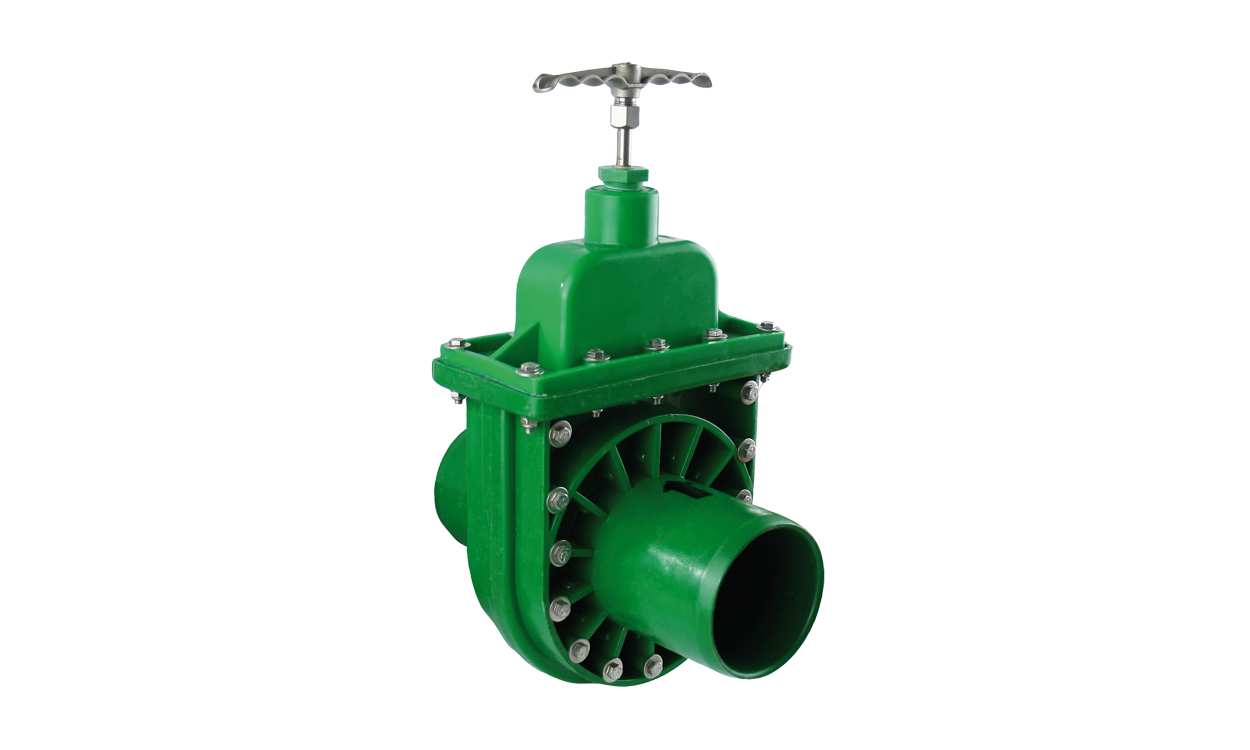

PVC slide valve
