COBILIGHT - PVC suction and pressure hose for light applications
Product information "COBILIGHT - PVC suction and pressure hose for light applications"
suitable for conveying of water, waste water and feces in the agriculture and industry, irrigation and draining. Light and flexible quality. Resistant to many chemicals, UV and weather resistant.
| Colour: | green transparent |
|---|---|
| Structure: | synthetic spiral hose, green transparent, inside smooth with embedded white hard PVC spiral, outside light corrugated |
| Temperature range: | -15°C up to +60°C |
| Inner-Ø (mm) | Length (m) | Unit | wall thickness (mm) | Vacuum (m WC) | weight (g) | Outer-Ø (mm) | WP (bar) | bending radius (mm) | Product Number | Delivery Time | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 19 | 50 | meter | 2,4 | 7 | 220 | 23,8 | 7 | 85 | 1060019000 | ||
| 20 | 50 | meter | 2,4 | 6 | 250 | 24,8 | 5 | 100 | 1060020000 | ||
| 20 | 25 | meter | 2,4 | 6 | 250 | 24,8 | 5 | 100 | 1060020025 | ||
| 25 | 50 | meter | 2,4 | 7 | 250 | 29,8 | 6 | 105 | 1060025000 | ||
| 30 | 50 | meter | 2,5 | 7 | 340 | 35 | 6 | 120 | 1060030000 | ||
| 32 | 50 | meter | 2,6 | 7 | 345 | 37,2 | 6 | 130 | 1060032000 | ||
| 38 | 50 | meter | 3 | 7 | 470 | 44 | 6 | 155 | 1060038000 | ||
| 40 | 50 | meter | 3 | 7 | 500 | 46 | 5 | 165 | 1060040000 | ||
| 45 | 50 | meter | 3,2 | 7 | 550 | 51,4 | 5 | 195 | 1060045000 | ||
| 51 | 50 | meter | 3,6 | 7 | 680 | 58,2 | 5 | 205 | 1060051000 | ||
| 60 | 50 | meter | 3,6 | 7 | 950 | 67,2 | 4 | 250 | 1060060000 | ||
| 63 | 50 | meter | 3,7 | 7 | 980 | 70,4 | 4 | 260 | 1060063000 | ||
| 70 | 50 | meter | 3,9 | 7 | 1000 | 77,8 | 4 | 295 | 1060070000 | ||
| 76 | 50 | meter | 4,1 | 6 | 1150 | 84,2 | 4 | 320 | 1060076000 | ||
| 80 | 50 | meter | 4,5 | 6 | 1200 | 89 | 3 | 335 | 1060080000 | ||
| 90 | 50 | meter | 4,8 | 6 | 1800 | 99,6 | 3 | 390 | 1060090000 | ||
| 102 | 50 | meter | 5,4 | 6 | 2000 | 112,8 | 3 | 430 | 1060102000 |
Product data sheet
Skip product gallery
Tension jaw clamps W4
Clamping range (mm):
34-37
wide-band clamp with open able bridge piece and with rounded clamp band edges
Product number:
1531034037
COBI Tension jaw clamps W1
Clamping range (mm):
32-35
wide-band clamp with rounded clamp band edgesScrew with a full bolt
Product number:
1521032035
Skip product gallery
Female coupling with flaked hose nozzle System Perrot stainless steel
NW:
70
|
for hose (mm):
60
type Optima
Product number:
2516070060
Female coupling with female thread type D - System Kamlok stainless steel
NW:
1 1/2"
with stainless steel lever
Product number:
2173038000
Jurop-vacuum pump type PNR-HDR
addition2:
PNR 72 HDR
with air injection cooling and hydraulic motor left-hand turning
Product number:
9130072000
Air outlet with hose nozzle
DN:
7,2
|
hose nozzle (mm):
6
single shut-off
Product number:
7143006000
Pipe coupling elbow 90° with female thread
d:
63
one side female thread, other side screw connection
Product number:
3457063050
Brass intermediate valve
Female thread:
4"
with female thread, spring loaded plate in polymer
Product number:
3245100001
PVC ball valve type COBI
Female thread:
1 1/2"
both sides female thread with union nut
Product number:
4515038000
Female coupling System Perrot stainless steel
NW:
108
with fixed lever arrangement, type Supra
Product number:
2501108000
COBITROM FLAT - Silo conveying hose, flat rollable
Inner-Ø (mm):
76
|
Length (m):
Abschnitt
suitable for abrasive media, cement, powder, animal feed. Abrasion-proof, flat rollable rubber conveying hose.
Product number:
1323076000abs
COBIDUST SIL 2 - High temperature silicon exhaust ventilation hose
Inner-Ø (mm):
203
|
Length (m):
4
very flexible hose made of two layers of fiberglass, silicone coated, suitable for exhaust industrial ventilation, automotive and plastic industry.
Product number:
1277203000
Manometer 63 mm housing, connection 1/4" male thread rear
indicating range (bar):
0/+16
Bourdon tube pressure gauge for liquid and gaseous media, type dry.
Product number:
8126006016
Stainless steel screw union
female thread / male thread:
4"
one side female thread, other side male thread, conical sealing
Product number:
5100100000
Brass foot valve type Europe
Female thread:
4"
with female thread, spring loaded with niro suction basket, plate in stainless steel
Product number:
3246100000
COBIAQUA PU FLAT - Potable flat hose with Storz Couplings
Inner-Ø (mm):
52-C
|
Length (m):
20
High-quality flat drinking water hose, ideally suited for potable water supply applications, e.g. as a drinking water transfer hose or emergency supply hose. The drinking water hose is fully fitted with Storz system couplings. The connectors are made of brass, and the lugs are made of aluminium. Equipped with blue, drinking-water-approved seals and stainless steel wire binding. Features: - Suitable for use in drinking water supply - Resistant to oil, petrol, and chemicals - Ageing, ozone, and UV resistant - Robust design for professional use
Product number:
1020052020
Malleable cast iron Reducing elbow 90° Nr. 90
Female thread:
3/4" x 1/2"
both sides female thread
Product number:
3709019013
Female coupling with flaked hose nozzle System Perrot stainless steel
NW:
108
|
for hose (mm):
100
type Optima
Product number:
2516108100
Half screw fitting assortment for COBIKANTEX
NW:
19
Screw socket and cone packing with male thread
Product number:
2981019000
Female coupling with flaked hose nozzle System Perrot stainless steel
NW:
89
|
for hose (mm):
80
type Optima
Product number:
2516089080
COBIDUST L - Super lightweight polyurethane suction and blast hose, antistatic
Inner-Ø (mm):
110
|
Length (m):
10
for vapours, small industrial cleaning and suction plants. Can be used as protection sleeve. Suitable for suction of smoke and deciduous gases, dust suction of dry food according to EU 10/2011. Very light, flexible and abrasion-proof quality. Resistant to mineral oils, ageing, ozone and atmospherical agents, axially compressible about 5:1. Antistatic in accordance with TRBS 2153 by grounding the spiral. Not resistant to microbes and hydrolysis.
Product number:
1270110000
COBIINDIWA - Rubber industrial water hose 10 bar
Inner-Ø (mm):
60
|
Length (m):
40
suitable for water, waste water, sewage and low concentrated alkalis and acids. For applications in agriculture, construction and industry. Robust and buckling stabilized pressure hose.
Product number:
1051060000
COBIPRESS 20 - Compressed air hose 20 bar
Inner-Ø (mm):
19
|
Length (m):
Abschnitt
suitable for air containing lubricants and water, for heavy applications
Product number:
1219019000abs
COBI Tension jaw clamps W1
Clamping range (mm):
227-239
wide-band clamp with rounded clamp band edgesScrew with a full bolt
Product number:
1521227239
Malleable cast iron Reducing elbow 90° Nr. 90
Female thread:
1 1/2" x 1 1/4"
both sides female thread
Product number:
3709038032
PP screw connection
Female thread:
3/4"
|
d:
25
one side screw connection, other side female thread
Product number:
4652025019
Malleable cast iron T-fitting 90° reduced no. 130
Female thread:
2" x 1 1/2" x 2"
all sides female thread with reduced middle outlet
Product number:
3717050038
PE T-piece 90° reduced SDR 11
d:
90 x 63
with reduced middle outlet, PE 100 SDR 11 / 10 bar gas / 16 bar water
Product number:
4738090063
Skip product gallery

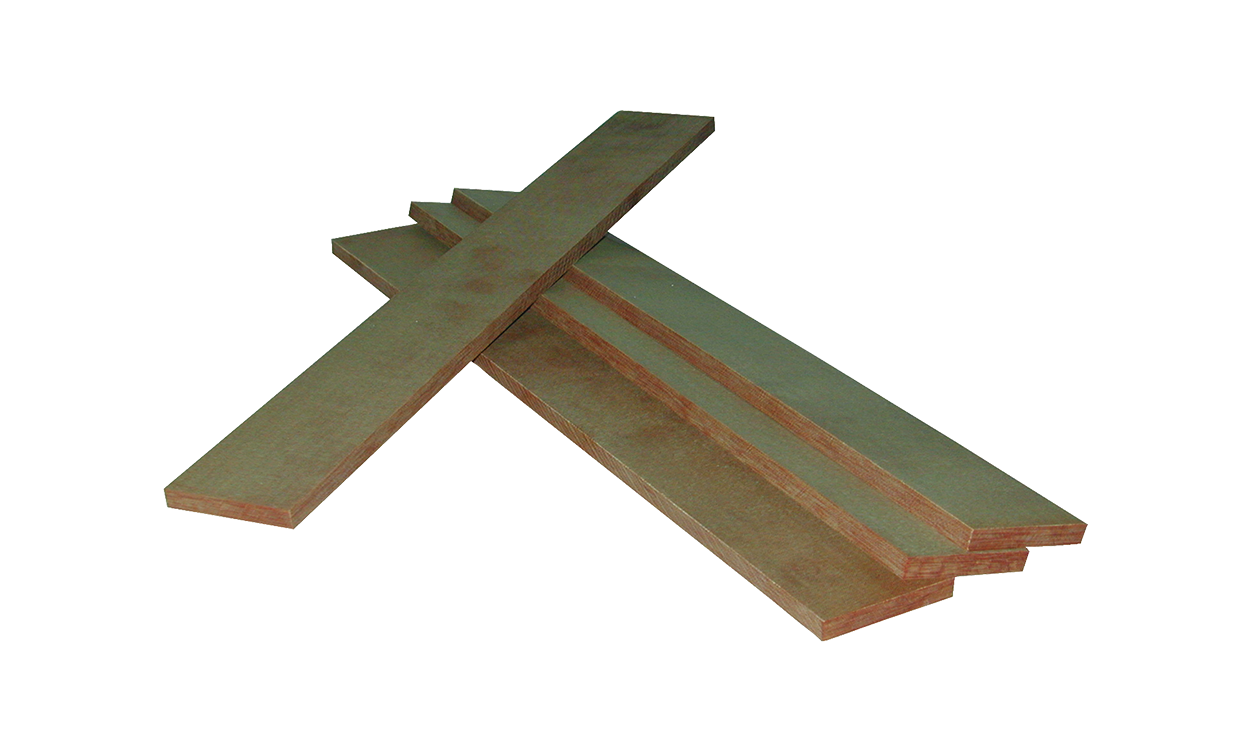

Rotor blades
