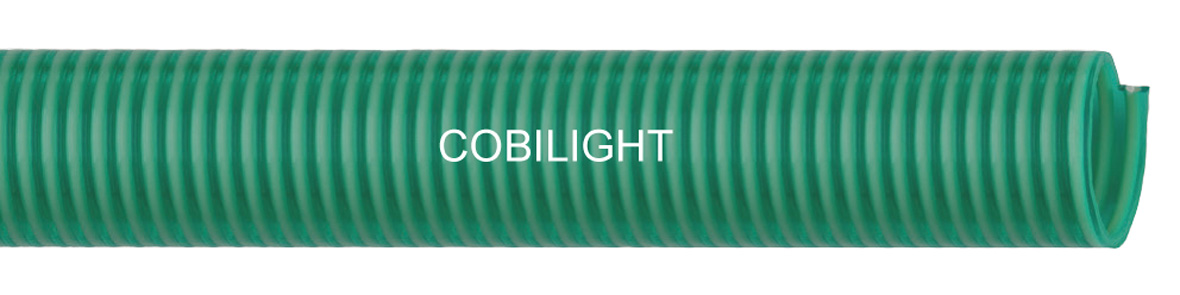

COBILIGHT - PVC suction and pressure hose for light applications
Product information "COBILIGHT - PVC suction and pressure hose for light applications"
suitable for conveying of water, waste water and feces in the agriculture and industry, irrigation and draining. Light and flexible quality. Resistant to many chemicals, UV and weather resistant.
| Colour: | green transparent |
|---|---|
| Structure: | synthetic spiral hose, green transparent, inside smooth with embedded white hard PVC spiral, outside light corrugated |
| Temperature range: | -15°C up to +60°C |
| Inner-Ø (mm) | Length (m) | Unit | wall thickness (mm) | Vacuum (m WC) | weight (g) | Outer-Ø (mm) | WP (bar) | bending radius (mm) | Product Number | Delivery Time | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 19 | 50 | meter | 2,4 | 7 | 220 | 23,8 | 7 | 85 | 1060019000 | ||
| 20 | 50 | meter | 2,4 | 6 | 250 | 24,8 | 5 | 100 | 1060020000 | ||
| 20 | 25 | meter | 2,4 | 6 | 250 | 24,8 | 5 | 100 | 1060020025 | ||
| 25 | 50 | meter | 2,4 | 7 | 250 | 29,8 | 6 | 105 | 1060025000 | ||
| 30 | 50 | meter | 2,5 | 7 | 340 | 35 | 6 | 120 | 1060030000 | ||
| 32 | 50 | meter | 2,6 | 7 | 345 | 37,2 | 6 | 130 | 1060032000 | ||
| 38 | 50 | meter | 3 | 7 | 470 | 44 | 6 | 155 | 1060038000 | ||
| 40 | 50 | meter | 3 | 7 | 500 | 46 | 5 | 165 | 1060040000 | ||
| 45 | 50 | meter | 3,2 | 7 | 550 | 51,4 | 5 | 195 | 1060045000 | ||
| 51 | 50 | meter | 3,6 | 7 | 680 | 58,2 | 5 | 205 | 1060051000 | ||
| 60 | 50 | meter | 3,6 | 7 | 950 | 67,2 | 4 | 250 | 1060060000 | ||
| 63 | 50 | meter | 3,7 | 7 | 980 | 70,4 | 4 | 260 | 1060063000 | ||
| 70 | 50 | meter | 3,9 | 7 | 1000 | 77,8 | 4 | 295 | 1060070000 | ||
| 76 | 50 | meter | 4,1 | 6 | 1150 | 84,2 | 4 | 320 | 1060076000 | ||
| 80 | 50 | meter | 4,5 | 6 | 1200 | 89 | 3 | 335 | 1060080000 | ||
| 90 | 50 | meter | 4,8 | 6 | 1800 | 99,6 | 3 | 390 | 1060090000 | ||
| 102 | 50 | meter | 5,4 | 6 | 2000 | 112,8 | 3 | 430 | 1060102000 |
Product data sheet
Skip product gallery
Alu suction coupling with hose nozzle System Storz
NW:
52-C
|
for hose (mm):
40
Product number:
2103052040
Hose clamp two part M 2
Clamping range (mm):
40-50
two part wide-band clamp to clamping range 60-70 mm screw M6 x 45 from clamping range 65-75 mm screw M8 x 60
Product number:
1540040050
Tension jaw clamps W4
Clamping range (mm):
44-47
wide-band clamp with open able bridge piece and with rounded clamp band edges
Product number:
1531044047
COBI Tension jaw clamps W1
Clamping range (mm):
44-47
wide-band clamp with rounded clamp band edgesScrew with a full bolt
Product number:
1521044047
Skip product gallery
COBILIGHT - PVC suction and pressure hose for light applications
Inner-Ø (mm):
60
|
Length (m):
50
suitable for conveying of water, waste water and feces in the agriculture and industry, irrigation and draining. Light and flexible quality. Resistant to many chemicals, UV and weather resistant.
Product number:
1060060000
Tension jaw clamps W2
Clamping range (mm):
40-43
wide-band clamp with open able bridge piece and with rounded clamp band edges
Product number:
1525040043
COBIWATER PLUS - EPDM-waterhose, multipurpose hose 20 bar
Inner-Ø (mm):
25
|
Length (m):
40
highly flexible service water hose for cold and hot water for particularly high requirements. Resistant to chemicals with low aggressiveness. Aging and weather resistant.
Product number:
1006025000
DVGW-PP screw connection
Female thread:
1"
|
d:
20
one side screw connection, other side female thread
Product number:
4602020025
Female coupling with crimped hose nozzle System Perrot
NW:
70
|
for hose (mm):
70
Product number:
2410070070
Brass hose connection with male coupling
for hose (mm) x male thread:
25 x 1“ mt
for shell-inclusion, smooth hose connection with safety collar and male thread
Product number:
2053025025
Female coupling with crimped hose nozzle System Perrot
NW:
89
|
for hose (mm):
90
Product number:
2410089090
Food coupling with male thread
NW coupling x for hose (mm):
DN20 x 19 mm
for shell-inclusion with safety collar
Product number:
2715019000
Alu suction coupling with hose nozzle with sawtooth System Storz
NW:
52-C
|
for hose (mm):
51
Product number:
2103052051
Tension jaw clamps W4
Clamping range (mm):
47-51
wide-band clamp with open able bridge piece and with rounded clamp band edges
Product number:
1531047051
Brass hose connection with male coupling
for hose (mm) x male thread:
80 x 3“ mt
for shell-inclusion, smooth hose connection with safety collar and male thread
Product number:
2053075080
Male coupling for weld on System Perrot stainless steel
NW:
89
type Optima
Product number:
2513089000
COBILIGHT - PVC suction and pressure hose for light applications
Inner-Ø (mm):
70
|
Length (m):
Abschnitt
suitable for conveying of water, waste water and feces in the agriculture and industry, irrigation and draining. Light and flexible quality. Resistant to many chemicals, UV and weather resistant.
Product number:
1060070000abs
Boiler-pipe bend 90° Norm 5S
Outer-Ø (mm):
76,1
norm 5S according to DIN 2605
Product number:
2325076000
Boiler-pipe bend 90° Norm 3S
Outer-Ø (mm):
51
norm 3S according to DIN 2605
Product number:
2320051000
Tension jaw clamps W4
Clamping range (mm):
21-23
wide-band clamp with open able bridge piece and with rounded clamp band edges
Product number:
1531021023
COBISUPERFLEX - High-flexible PVC suction and pressure hose
Inner-Ø (mm):
51
|
Length (m):
Abschnitt
suitable for municipal vehicles, irrigation and agriculture. High-flexible and cold-resistant quality.
Product number:
1083051000abs
Male coupling with flange System Perrot stainless steel
NW:
108
type Optima
Product number:
2517108000
PP screw connection
Male thread:
2"
|
d:
63
one side screw connection, other side male thread
Product number:
4651063050
Tension jaw clamps W2
Clamping range (mm):
19-21
wide-band clamp with open able bridge piece and with rounded clamp band edges
Product number:
1525019021
Alu suction coupling with hose nozzle Type I System Storz
NW:
52-C
|
for hose (mm):
45
Product number:
2113052045
COBIINDIWA - Rubber industrial water hose 10 bar
Inner-Ø (mm):
60
|
Length (m):
Abschnitt
suitable for water, waste water, sewage and low concentrated alkalis and acids. For applications in agriculture, construction and industry. Robust and buckling stabilized pressure hose.
Product number:
1051060000abs
Female coupling with male thread type B - System Kamlok Aluminium
NW:
3"
with stainless steel lever
Product number:
2165075000
Male coupling with hose nozzle italian coupling system
NW:
150
|
for hose (mm):
159
Product number:
8303150159
COBILIGHT - PVC suction and pressure hose for light applications
Inner-Ø (mm):
80
|
Length (m):
50
suitable for conveying of water, waste water and feces in the agriculture and industry, irrigation and draining. Light and flexible quality. Resistant to many chemicals, UV and weather resistant.
Product number:
1060080000
Alu-coupling with smooth passage System Storz
NW:
110-A
|
for hose (mm):
102
Especially for pellet hoses. This coupling allows a smoother passage in the hose.
Product number:
2119110102
Female coupling with male thread type B - System Kamlok Aluminium
NW:
2"
with stainless steel lever
Product number:
2165050000
Alu fixed coupling with female thread System Storz
NW:
52-C
|
Female thread:
3/4"
Product number:
2101052019
Female coupling with crimped hose nozzle System Perrot
NW:
89
|
for hose (mm):
76
Product number:
2410089076
Female coupling with male thread type B - System Kamlok Aluminium
NW:
2 1/2"
with stainless steel lever
Product number:
2165063000
Female coupling with male thread System Perrot stainless steel
NW:
70
|
Male thread:
2 1/2"
type Supra
Product number:
2503070000
Female coupling with crimped hose nozzle System Perrot
NW:
70
|
for hose (mm):
65
Product number:
2410070065
Brass quick coupling with female thread System Geka
Female thread:
1 1/4"
Product number:
3302032000
Alu fixed coupling with female thread System Storz
NW:
90
|
Female thread:
3"
Product number:
2101090075
Female coupling with male thread System Perrot stainless steel
NW:
133
|
Male thread:
4"
type Supra
Product number:
2503133000
Tip
MZ brass slurry flange gate valve ART. 0074
addition2:
6"
both sides with rectangular flange, valve with stainless steel screws and 2 gaskets
Product number:
8006150000
Male coupling for weld on System Perrot stainless steel
NW:
159
type Optima
Product number:
2513159000
PVC kit for butterfly valve type VDL
d:
160
components: flange adaptor, loose flange galvanized bolts
Product number:
4581160001
Female coupling with hose nozzle System Perrot
NW:
60
Screed conveyor coupling system Perrot
Product number:
2250060000
DVGW-PP screw connection
Female thread:
1"
|
d:
40
one side screw connection, other side female thread
Product number:
4602040025
DVGW-PP coupling, reduced
d:
50 x 25
one side screw connection, other side reduced screw connection
Product number:
4603050025
Brass sleeve ball valve type COBI
Female thread:
4"
both sides female thread
with full bore, useable for not aggressive media
Product number:
3040100000
Alu clamping shells EN 14420-3
for hose x wall thickness (mm):
50 x 6
for inclusion of couplings with smooth hose connections and safety collar, two-part, complete with hexagon socket screw and nut
Product number:
2070050006
Brass sleeve ball valve type COBI
Female thread:
1/4"
both sides female thread
with full bore, useable for not aggressive media
Product number:
3030006000
Brass sleeve ball valve type 343
female thread / male thread:
3/4"
one side female thread, other side male thread
with full bore and adjustable sealing element
Product number:
3024019000
Skip product gallery
Stainless steel reducing hexagon double nipple
Male thread:
3/4" x 1/2"
both sides male thread
Product number:
5030019013
DVGW-PP screw connection
Female thread:
1/2"
|
d:
20
one side screw connection, other side female thread
Product number:
4602020013
Brass sleeve ball valve type COBI
Female thread:
3/4"
both sides female thread
with full bore, useable for not aggressive media
Product number:
3030019000
COBILIGHT - PVC suction and pressure hose for light applications
Inner-Ø (mm):
25
|
Length (m):
50
suitable for conveying of water, waste water and feces in the agriculture and industry, irrigation and draining. Light and flexible quality. Resistant to many chemicals, UV and weather resistant.
Product number:
1060025000

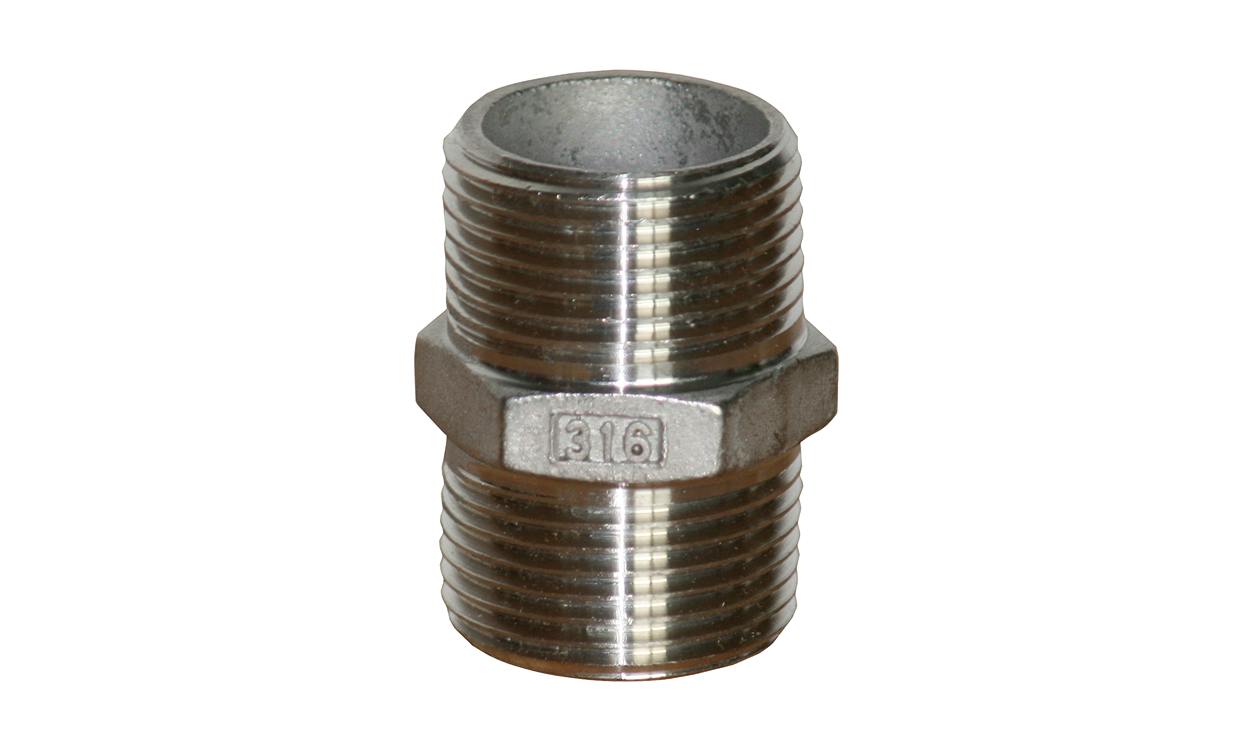

Stainless steel hexagon double nipple
