COBILIGHT - PVC suction and pressure hose for light applications
Product information "COBILIGHT - PVC suction and pressure hose for light applications"
suitable for conveying of water, waste water and feces in the agriculture and industry, irrigation and draining. Light and flexible quality. Resistant to many chemicals, UV and weather resistant.
| Colour: | green transparent |
|---|---|
| Structure: | synthetic spiral hose, green transparent, inside smooth with embedded white hard PVC spiral, outside light corrugated |
| Temperature range: | -15°C up to +60°C |
| Inner-Ø (mm) | Length (m) | Unit | wall thickness (mm) | Vacuum (m WC) | weight (g) | Outer-Ø (mm) | WP (bar) | bending radius (mm) | Product Number | Delivery Time | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 19 | 50 | meter | 2,4 | 7 | 220 | 23,8 | 7 | 85 | 1060019000 | ||
| 20 | 50 | meter | 2,4 | 6 | 250 | 24,8 | 5 | 100 | 1060020000 | ||
| 20 | 25 | meter | 2,4 | 6 | 250 | 24,8 | 5 | 100 | 1060020025 | ||
| 25 | 50 | meter | 2,4 | 7 | 250 | 29,8 | 6 | 105 | 1060025000 | ||
| 30 | 50 | meter | 2,5 | 7 | 340 | 35 | 6 | 120 | 1060030000 | ||
| 32 | 50 | meter | 2,6 | 7 | 345 | 37,2 | 6 | 130 | 1060032000 | ||
| 38 | 50 | meter | 3 | 7 | 470 | 44 | 6 | 155 | 1060038000 | ||
| 40 | 50 | meter | 3 | 7 | 500 | 46 | 5 | 165 | 1060040000 | ||
| 45 | 50 | meter | 3,2 | 7 | 550 | 51,4 | 5 | 195 | 1060045000 | ||
| 51 | 50 | meter | 3,6 | 7 | 680 | 58,2 | 5 | 205 | 1060051000 | ||
| 60 | 50 | meter | 3,6 | 7 | 950 | 67,2 | 4 | 250 | 1060060000 | ||
| 63 | 50 | meter | 3,7 | 7 | 980 | 70,4 | 4 | 260 | 1060063000 | ||
| 70 | 50 | meter | 3,9 | 7 | 1000 | 77,8 | 4 | 295 | 1060070000 | ||
| 76 | 50 | meter | 4,1 | 6 | 1150 | 84,2 | 4 | 320 | 1060076000 | ||
| 80 | 50 | meter | 4,5 | 6 | 1200 | 89 | 3 | 335 | 1060080000 | ||
| 90 | 50 | meter | 4,8 | 6 | 1800 | 99,6 | 3 | 390 | 1060090000 | ||
| 102 | 50 | meter | 5,4 | 6 | 2000 | 112,8 | 3 | 430 | 1060102000 |
Product data sheet
Skip product gallery
Female coupling with crimped hose nozzle System Perrot
NW:
89
|
for hose (mm):
76
Product number:
2410089076
COBI Tension jaw clamps W1
Clamping range (mm):
80-85
wide-band clamp with rounded clamp band edgesScrew with a full bolt
Product number:
1521080085

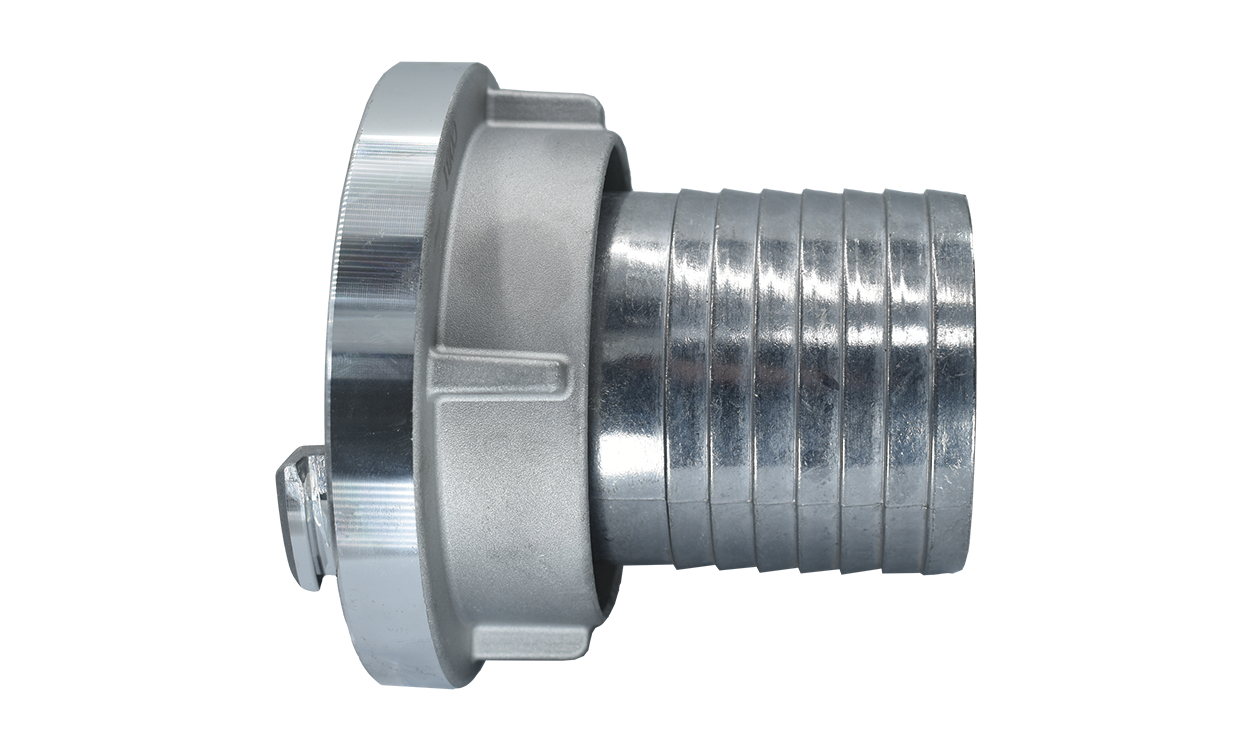

Alu suction coupling with hose nozzle with sawtooth Typ I System Storz
