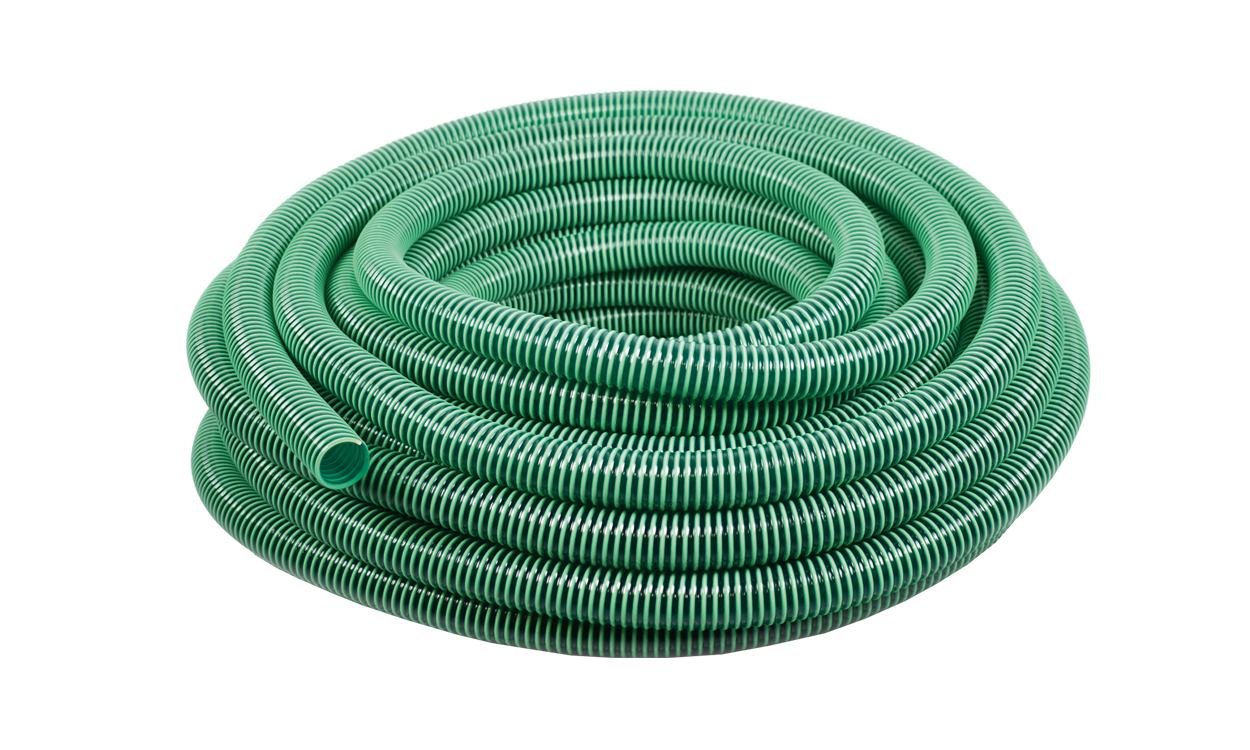

COBILIGHT - PVC suction and pressure hose for light applications
Product information "COBILIGHT - PVC suction and pressure hose for light applications"
suitable for conveying of water, waste water and feces in the agriculture and industry, irrigation and draining. Light and flexible quality. Resistant to many chemicals, UV and weather resistant.
| Colour: | green transparent |
|---|---|
| Structure: | synthetic spiral hose, green transparent, inside smooth with embedded white hard PVC spiral, outside light corrugated |
| Temperature range: | -15°C up to +60°C |
| Inner-Ø (mm) | Length (m) | Unit | wall thickness (mm) | Vacuum (m WC) | weight (g) | Outer-Ø (mm) | WP (bar) | bending radius (mm) | Product Number | Delivery Time | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 19 | 50 | meter | 2,4 | 7 | 220 | 23,8 | 7 | 85 | 1060019000 | ||
| 20 | 50 | meter | 2,4 | 6 | 250 | 24,8 | 5 | 100 | 1060020000 | ||
| 20 | 25 | meter | 2,4 | 6 | 250 | 24,8 | 5 | 100 | 1060020025 | ||
| 25 | 50 | meter | 2,4 | 7 | 250 | 29,8 | 6 | 105 | 1060025000 | ||
| 30 | 50 | meter | 2,5 | 7 | 340 | 35 | 6 | 120 | 1060030000 | ||
| 32 | 50 | meter | 2,6 | 7 | 345 | 37,2 | 6 | 130 | 1060032000 | ||
| 38 | 50 | meter | 3 | 7 | 470 | 44 | 6 | 155 | 1060038000 | ||
| 40 | 50 | meter | 3 | 7 | 500 | 46 | 5 | 165 | 1060040000 | ||
| 45 | 50 | meter | 3,2 | 7 | 550 | 51,4 | 5 | 195 | 1060045000 | ||
| 51 | 50 | meter | 3,6 | 7 | 680 | 58,2 | 5 | 205 | 1060051000 | ||
| 60 | 50 | meter | 3,6 | 7 | 950 | 67,2 | 4 | 250 | 1060060000 | ||
| 63 | 50 | meter | 3,7 | 7 | 980 | 70,4 | 4 | 260 | 1060063000 | ||
| 70 | 50 | meter | 3,9 | 7 | 1000 | 77,8 | 4 | 295 | 1060070000 | ||
| 76 | 50 | meter | 4,1 | 6 | 1150 | 84,2 | 4 | 320 | 1060076000 | ||
| 80 | 50 | meter | 4,5 | 6 | 1200 | 89 | 3 | 335 | 1060080000 | ||
| 90 | 50 | meter | 4,8 | 6 | 1800 | 99,6 | 3 | 390 | 1060090000 | ||
| 102 | 50 | meter | 5,4 | 6 | 2000 | 112,8 | 3 | 430 | 1060102000 |
Product data sheet
Skip product gallery
Tension jaw clamps W4
Clamping range (mm):
51-55
wide-band clamp with open able bridge piece and with rounded clamp band edges
Product number:
1531051055
Alu suction coupling with hose nozzle Type I System Storz
NW:
52-C
|
for hose (mm):
45
Product number:
2113052045
Hose clamp two part M 2
Clamping range (mm):
45-55
two part wide-band clamp to clamping range 60-70 mm screw M6 x 45 from clamping range 65-75 mm screw M8 x 60
Product number:
1540045055
COBI Tension jaw clamps W1
Clamping range (mm):
52-55
wide-band clamp with rounded clamp band edgesScrew with a full bolt
Product number:
1521052055
Skip product gallery
Brass foot valve type Europe
Female thread:
1"
with female thread, spring loaded with niro suction basket, plate in stainless steel
Product number:
3246025000
PVC ball valve type COBI
Female thread:
1 1/4"
both sides female thread with union nut
Product number:
4515032000
Brass sleeve ball valve type COBI with butterfly handle
Female thread:
1"
both sides female thread
with full bore, useable for not aggressive media
Product number:
3050025000
PP screw connection
Female thread:
3"
|
d:
110
one side screw connection, other side female thread
Product number:
4652110075
COBIOIL MU - Fuel hose with metal braid
Inner-Ø (mm):
13
|
Length (m):
50
Product number:
1421013000
PVC Socket with male thread (Typ COBI)
Male thread:
3/8"
|
d:
20 x 25
bonding socket x male thread
Product number:
4315020010
Cone packing with union nut
NW:
16
for rubber tube cleaning hose COBIROKAN
Product number:
2994019016
COBIDUST L - Super lightweight polyurethane suction and blast hose, antistatic
Inner-Ø (mm):
400
|
Length (m):
10
for vapours, small industrial cleaning and suction plants. Can be used as protection sleeve. Suitable for suction of smoke and deciduous gases, dust suction of dry food according to EU 10/2011. Very light, flexible and abrasion-proof quality. Resistant to mineral oils, ageing, ozone and atmospherical agents, axially compressible about 5:1. Antistatic in accordance with TRBS 2153 by grounding the spiral. Not resistant to microbes and hydrolysis.
Product number:
1270406000
Malleable cast iron Bend 45° Nr. 40
female thread / male thread:
3"
one side female thread, other side male thread
Product number:
3706075000
Steel press ring for hose pressing
for hose (mm):
102
for pressing a hose with the fitting
Product number:
2099102000
Female coupling for weld on System Perrot stainless steel
NW:
133
type Optima
Product number:
2514133000
COBIRANO PU AS - PVC/PU suction and pressure hose
Inner-Ø (mm):
80
|
Length (m):
30
suitable for grit, stones, sand, grain and other abrasive media. Robust and moveable quality.
Product number:
1334080000
Slide flat valve metallic sealing
DN:
100
both sides flanges PN 10/16 at DN 50 - DN 150 and PN 10 at DN 200, with hand wheel an not rising spindle according to DIN 3352, overall length according to F4
Product number:
3068100000
COBIDUST L - Super lightweight polyurethane suction and blast hose, antistatic
Inner-Ø (mm):
254
|
Length (m):
10
for vapours, small industrial cleaning and suction plants. Can be used as protection sleeve. Suitable for suction of smoke and deciduous gases, dust suction of dry food according to EU 10/2011. Very light, flexible and abrasion-proof quality. Resistant to mineral oils, ageing, ozone and atmospherical agents, axially compressible about 5:1. Antistatic in accordance with TRBS 2153 by grounding the spiral. Not resistant to microbes and hydrolysis.
Product number:
1270254000
PP hose nozzle 90° two-part
Female thread:
3/4"
|
hose nozzle (mm):
20
bent with female thread and nozzle
Product number:
4968019020
COBITON 40 - Concrete injection hose 40 bar
Inner-Ø (mm):
40
|
Length (m):
Abschnitt
suitable for moist, abrasive media, wet concrete, mortar, flow plaster. Robust, buckling stabilise, high-grade quality.
Product number:
1335040000abs
COBIDUST KK - PVC suction and blast hose
Inner-Ø (mm):
76
|
Length (m):
Abschnitt
suitable for suction of air, fumes, gas, powders, sawing, dust. For aerating and conditioning plants, wood working plants, for agriculture as drill machine hose, for conveying of gaseous media. Very light and flexible quality. Resistant to atmospheric influences and chemical substances.
Product number:
1263076000abs
T-coupling female-male coupling with lateral outlet female coupling System Perrot
NW:
female/male 89 x lateral outlet female 50
Product number:
2436089050
COBITON 40 - Concrete injection hose 40 bar
Inner-Ø (mm):
50
|
Length (m):
40
suitable for moist, abrasive media, wet concrete, mortar, flow plaster. Robust, buckling stabilise, high-grade quality.
Product number:
1335050000
Stainless steel hose connection with male coupling
for hose (mm) x male thread:
75 x 3“ mt
for shell-inclusion, smooth hose connection with safety collar and male thread
Product number:
2057375075
PVC Socket with male thread (Typ COBI)
Male thread:
3/4"
|
d:
20 x 25
bonding socket x male thread
Product number:
4315020019
PVC adapter nipple
Male thread:
1 1/2"
|
d:
40 x 48
made of pipe, bonding socket/bonding connection x male thread
Product number:
4314040038
PP clamp saddle
Female thread:
3/4"
|
d:
32
without reinforcement ring, with female thread
Product number:
4452032019
Brass clamping shells EN 14420-3
for hose x wall thickness (mm):
75 x 8
for inclusion of couplings with smooth hose connections and safety collar, two-part, complete with hexagon socket screw and nut
Product number:
2076075008
COBIDUST KK - PVC suction and blast hose
Inner-Ø (mm):
200
|
Length (m):
20
suitable for suction of air, fumes, gas, powders, sawing, dust. For aerating and conditioning plants, wood working plants, for agriculture as drill machine hose, for conveying of gaseous media. Very light and flexible quality. Resistant to atmospheric influences and chemical substances.
Product number:
1263200000
COBIWATER PLUS - EPDM-waterhose, multipurpose hose 20 bar
Inner-Ø (mm):
32
|
Length (m):
50
highly flexible service water hose for cold and hot water for particularly high requirements. Resistant to chemicals with low aggressiveness. Aging and weather resistant.
Product number:
1006032000
COBIDUST KK - PVC suction and blast hose
Inner-Ø (mm):
150
|
Length (m):
20
suitable for suction of air, fumes, gas, powders, sawing, dust. For aerating and conditioning plants, wood working plants, for agriculture as drill machine hose, for conveying of gaseous media. Very light and flexible quality. Resistant to atmospheric influences and chemical substances.
Product number:
1263150000
Male coupling with male thread System Perrot stainless steel
NW:
70
|
Male thread:
2 1/2"
type Optima
Product number:
2511070063
PVC socket with male thread
Male thread:
2 1/2"
|
d:
75 x 90
bonding connection/bonding socket x male thread
Product number:
4310075063
PVC Pressure pipe 16 bar
wall thickness (mm):
1,2
|
d:
10
with one bonding socket
Product number:
4001010012
Female coupling for weld on System Perrot stainless steel
NW:
108
type Supra
Product number:
2504108000
COBIDUST SUPERFLEX - Industry vacuum cleaner hose
Inner-Ø (mm):
76
|
Length (m):
10
for the vacuum cleaner in the industry and the mechanical engineering. In the ventilation and the construction drying. Also suitable to the suction cleaning of welding smoke without flying sparks.
Product number:
1289076000
Stainless steel screw union
Female thread:
2"
both sides female thread, conical sealing
Product number:
5095050000
COBIORPU AS - Polyurethane exhaust ventilation hose, antistatic
Inner-Ø (mm):
52
|
Length (m):
20
suitable for powder, grain mixture, wood shaving, dust, isolating materials, grass and deciduous exhaust ventilation, food and chemicals. Very moveable and abrasion-proof PU hose for light applications. Microbes and hydrolysis resistant. Antistatic thanks to revolving cooper braid.
Product number:
1341052000
Male coupling with flange System Perrot stainless steel
NW:
70
type Optima
Product number:
2517070000
Female coupling for weld on System Perrot stainless steel
NW:
89
type Supra
Product number:
2504089000
COBIUNITYPE - Universal multipurpose suction and pressure hose
Inner-Ø (mm):
32
|
Length (m):
Abschnitt
lightweight, flexible univeral hose suitable for mineral oil products, fuels, oils and other products.
Product number:
1404032000abs
PVC socket with male thread
Male thread:
1 1/2"
|
d:
63 x 75
bonding connection/bonding socket x male thread
Product number:
4310063038
PVC Socket with male thread (Typ COBI)
Male thread:
1/2"
|
d:
20 x 25
bonding socket x male thread
Product number:
4315020013
Compressed air claw coupling with hose connection
NW:
3/4"
for inclusion with clamps
Product number:
2205019000
DVGW-PP elbow 90°
Male thread:
4"
|
d:
90
one side screw connection, other side male thread
Product number:
4606090100
DVGW-PP coupling, reduced
d:
50 x 40
one side screw connection, other side reduced screw connection
Product number:
4603050040
PVC socket with male thread
Male thread:
3"
|
d:
75 x 90
bonding connection/bonding socket x male thread
Product number:
4310075075
Skip product gallery
Malleable cast iron Bend 90° Nr. 1
female thread / male thread:
1 1/4"
one side female thread, other side male thread
Product number:
3701032000

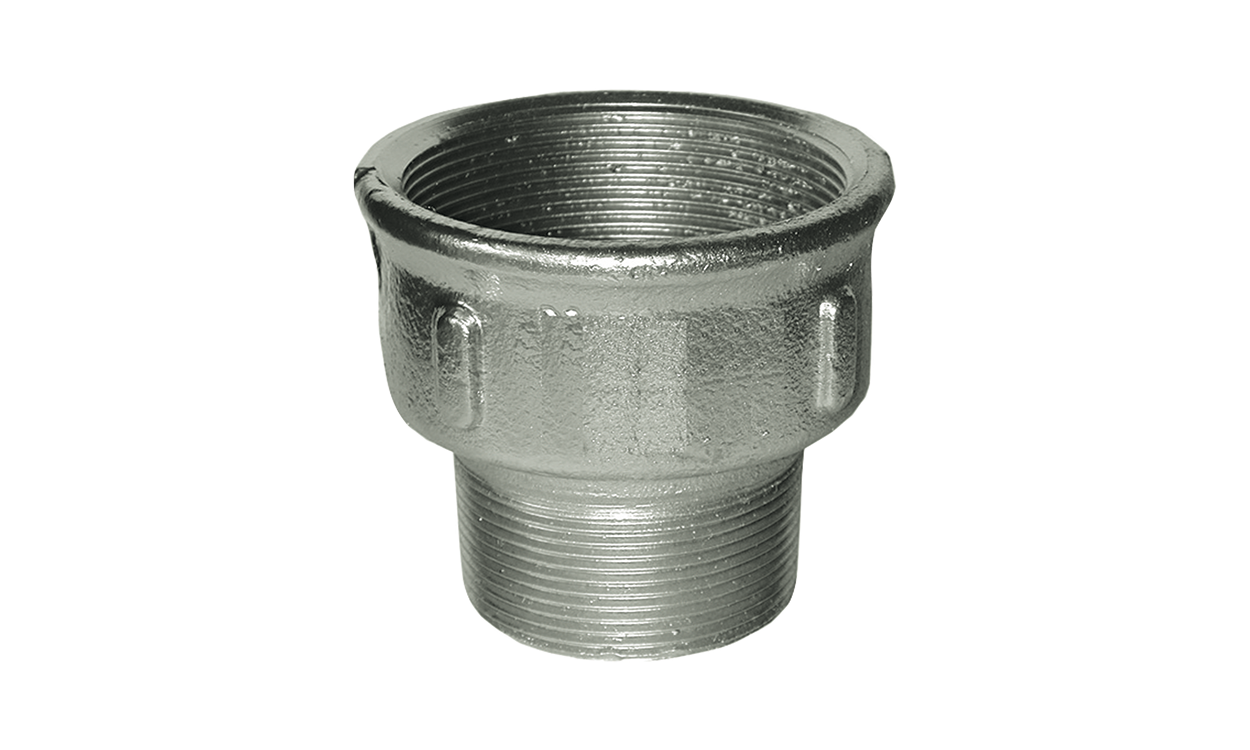

Malleable cast iron Reducing nipple no. 241
