COBILIGHT - PVC suction and pressure hose for light applications
Product information "COBILIGHT - PVC suction and pressure hose for light applications"
suitable for conveying of water, waste water and feces in the agriculture and industry, irrigation and draining. Light and flexible quality. Resistant to many chemicals, UV and weather resistant.
| Colour: | green transparent |
|---|---|
| Structure: | synthetic spiral hose, green transparent, inside smooth with embedded white hard PVC spiral, outside light corrugated |
| Temperature range: | -15°C up to +60°C |
| Inner-Ø (mm) | Length (m) | Unit | wall thickness (mm) | Vacuum (m WC) | weight (g) | Outer-Ø (mm) | WP (bar) | bending radius (mm) | Product Number | Delivery Time | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 19 | 50 | meter | 2,4 | 7 | 220 | 23,8 | 7 | 85 | 1060019000 | ||
| 20 | 50 | meter | 2,4 | 6 | 250 | 24,8 | 5 | 100 | 1060020000 | ||
| 20 | 25 | meter | 2,4 | 6 | 250 | 24,8 | 5 | 100 | 1060020025 | ||
| 25 | 50 | meter | 2,4 | 7 | 250 | 29,8 | 6 | 105 | 1060025000 | ||
| 30 | 50 | meter | 2,5 | 7 | 340 | 35 | 6 | 120 | 1060030000 | ||
| 32 | 50 | meter | 2,6 | 7 | 345 | 37,2 | 6 | 130 | 1060032000 | ||
| 38 | 50 | meter | 3 | 7 | 470 | 44 | 6 | 155 | 1060038000 | ||
| 40 | 50 | meter | 3 | 7 | 500 | 46 | 5 | 165 | 1060040000 | ||
| 45 | 50 | meter | 3,2 | 7 | 550 | 51,4 | 5 | 195 | 1060045000 | ||
| 51 | 50 | meter | 3,6 | 7 | 680 | 58,2 | 5 | 205 | 1060051000 | ||
| 60 | 50 | meter | 3,6 | 7 | 950 | 67,2 | 4 | 250 | 1060060000 | ||
| 63 | 50 | meter | 3,7 | 7 | 980 | 70,4 | 4 | 260 | 1060063000 | ||
| 70 | 50 | meter | 3,9 | 7 | 1000 | 77,8 | 4 | 295 | 1060070000 | ||
| 76 | 50 | meter | 4,1 | 6 | 1150 | 84,2 | 4 | 320 | 1060076000 | ||
| 80 | 50 | meter | 4,5 | 6 | 1200 | 89 | 3 | 335 | 1060080000 | ||
| 90 | 50 | meter | 4,8 | 6 | 1800 | 99,6 | 3 | 390 | 1060090000 | ||
| 102 | 50 | meter | 5,4 | 6 | 2000 | 112,8 | 3 | 430 | 1060102000 |
Product data sheet
Skip product gallery
Tension jaw clamps W4
Clamping range (mm):
68-73
wide-band clamp with open able bridge piece and with rounded clamp band edges
Product number:
1531068073
Hose clamp two part M 2
Clamping range (mm):
65-75
two part wide-band clamp to clamping range 60-70 mm screw M6 x 45 from clamping range 65-75 mm screw M8 x 60
Product number:
1540065075
COBI Tension jaw clamps W1
Clamping range (mm):
68-73
wide-band clamp with rounded clamp band edgesScrew with a full bolt
Product number:
1521068073
Alu suction coupling with hose nozzle System Storz
NW:
65
|
for hose (mm):
63
Product number:
2103065063
Skip product gallery
COBIAIR CLEAR - PVC hose, crystal clear
Inner Ø x Outer Ø:
9 x 12 mm
|
Length (m):
50
1-layer soft PVC hose for non-pressurized conveying of air, water, liquid foodstuffs, fruit juices, beverages, and for use in the medical sector. Partially oil- and chemical-resistant. Suitable for low-pressure hydraulic systems and also suitable as a protective hose.
Product number:
1205009000
COBIAIR CLEAR - PVC hose, crystal clear
Inner Ø x Outer Ø:
6 x 9 mm
|
Length (m):
100
1-layer soft PVC hose for non-pressurized conveying of air, water, liquid foodstuffs, fruit juices, beverages, and for use in the medical sector. Partially oil- and chemical-resistant. Suitable for low-pressure hydraulic systems and also suitable as a protective hose.
Product number:
1205006000
Brass hose connection with female coupling
for hose (mm) x female thread:
75 x 3“ ft
for clamp-inclusion, corrugated hose connection with union nut - female thread with gasket
Product number:
2052075075
PP screw connection
Female thread:
1/2"
|
d:
20
one side screw connection, other side female thread
Product number:
4652020013
PVC Socket with male thread (Typ COBI)
Male thread:
2"
|
d:
75 x 90
bonding socket x male thread
Product number:
4315075050
Male coupling for weld on System Perrot stainless steel
NW:
108
type Optima
Product number:
2513108000
Sealing set for pipe connections
d:
20
o-ring, pressure ring and clamping ring
Product number:
3462020000
COBITROM PLUS - Special silo conveying hose
wall thickness (mm):
11
|
Inner-Ø (mm):
75
|
Length (m):
40
suitable for abrasive media, grain, cement, powder. Abrasion-proof rubber conveying hose.
Product number:
1321075011
Female coupling with hose nozzle System Bauer
NW:
89
|
for hose (mm):
75
with lever arrangement
Product number:
2606089075
Alu clamping shells EN 14420-3
for hose x wall thickness (mm):
100 x 10
for inclusion of couplings with smooth hose connections and safety collar, two-part, complete with hexagon socket screw and nut
Product number:
2070100010
COBIDUST SIL 2 - High temperature silicon exhaust ventilation hose
Inner-Ø (mm):
63
|
Length (m):
4
very flexible hose made of two layers of fiberglass, silicone coated, suitable for exhaust industrial ventilation, automotive and plastic industry.
Product number:
1277063000
Female coupling for clamping rings with smooth hose nozzle System Perrot
NW:
159
|
for hose (mm):
150
for the special integration of flat hoses with clamping rings, with short hose nozzle
Product number:
2414159000
COBIINDIWA - Rubber industrial water hose 10 bar
Inner-Ø (mm):
127
|
Length (m):
Abschnitt
suitable for water, waste water, sewage and low concentrated alkalis and acids. For applications in agriculture, construction and industry. Robust and buckling stabilized pressure hose.
Product number:
1051127000abs
Brass hose connection with female coupling
for hose (mm) x female thread:
80 x 3“ ft
for clamp-inclusion, corrugated hose connection with union nut - female thread with gasket
Product number:
2052075080
COBIFLEX SUPER - High-flexible PVC suction and pressure hose
Inner-Ø (mm):
90
|
Length (m):
Abschnitt
suitable for municipal vehicles, irrigation and agriculture. High-flexible and cold-resistant quality.
Product number:
1084090000abs
PVC Socket with male thread (Typ COBI)
Male thread:
2"
|
d:
63 x 75
bonding socket x male thread
Product number:
4315063050
Male coupling for weld on System Perrot stainless steel
NW:
133
type Optima
Product number:
2513133000
Malleable cast iron T-fitting 90° reduced no. 130
Female thread:
2" x 1 1/2" x 2"
all sides female thread with reduced middle outlet
Product number:
3717050038
COBITON 10 SP T - Shotcreting hose
Inner-Ø (mm):
32
|
Length (m):
40
jet hose for dry-concrete-shotmachines, water engineering, tunneling, mining and for building. Advantage: extremely wear-resistant, big core, horizontal solid and streamlined, for all conventional fittings.
Product number:
1338032000
COBIDUST STEAM - High temperature exhaust ventilation hose
Inner-Ø (mm):
102
|
Length (m):
15
suitable for suction of hot air and fumes, good resistance against chemicals. Very light, flexible and abrasion proof quality.
Product number:
1278102000
Half screw fitting assortment for COBIKANTEX
NW:
25
Screw socket and cone packing with union nut
Product number:
2986025000
COBIFLEX SUPER - High-flexible PVC suction and pressure hose
Inner-Ø (mm):
63
|
Length (m):
Abschnitt
suitable for municipal vehicles, irrigation and agriculture. High-flexible and cold-resistant quality.
Product number:
1084063000abs
Male coupling with female thread type A - System Kamlok Aluminium
NW:
1 1/4"
Product number:
2164032000
Brass sleeve ball valve type COBI
female thread / male thread:
4"
one side female thread, other side male thread
with full bore, useable for not aggressive media
Product number:
3045100000
COBIDUST SIL 2 - High temperature silicon exhaust ventilation hose
Inner-Ø (mm):
89
|
Length (m):
4
very flexible hose made of two layers of fiberglass, silicone coated, suitable for exhaust industrial ventilation, automotive and plastic industry.
Product number:
1277089000
Alu clamping shells EN 14420-3
for hose x wall thickness (mm):
32 x 6
for inclusion of couplings with smooth hose connections and safety collar, two-part, complete with hexagon socket screw and nut
Product number:
2070032006
Feed-through cap for well filter, open
NW:
2"
with female thread, for passing the plastic inner tube
Product number:
2488050000
COBILIGHT - PVC suction and pressure hose for light applications
Inner-Ø (mm):
19
|
Length (m):
Abschnitt
suitable for conveying of water, waste water and feces in the agriculture and industry, irrigation and draining. Light and flexible quality. Resistant to many chemicals, UV and weather resistant.
Product number:
1060019000abs
Brass intermediate valve type Europe
Female thread:
3"
with female thread, spring loaded plate in stainless steel
Product number:
3246075001
Hose clamps DIN 20039 A
Clamping range (mm):
77-94
two part, loose tongues.
Product number:
1560077094
Mortar male coupling with hose nozzle and safety collar
NW:
35
for hydraulical pressing
Product number:
2198035035
Connection nipple for compressed air couplings
Male thread:
1" BSPx Rd 38
for compressed air and water
Product number:
2214038025
COBIORPU ME AS - Polyurethane exhaust ventilation hose for middle heavy applications
Inner-Ø (mm):
40
|
Length (m):
30
for abrasive media such as pellets, granulates and dust. Finds optimal application in the plastic and ceramic Industry. Can be used in woodworking under severe conditions. Antistatic thanks to revolving copper braid. Resistant to a variety of chemical substances. UV, ozone and weather resistant. Not resistant to microbes and hydrolysis.
Product number:
1343040000
Boiler-pipe bend 90° Norm 5S
Outer-Ø (mm):
159
norm 5S according to DIN 2605
Product number:
2325159000
PVC kit for butterfly valve type VDL
d:
90
components: flange adaptor, loose flange galvanized bolts
Product number:
4581090001
Brass sleeve ball valve for potable water
Female thread:
3/4"
both sides female thread
with full bore, useable for potable water according to DIN EN 13828 and DVGW-W 570
Product number:
3038019000
Skip product gallery
Alu suction coupling with hose nozzle Type I System Storz
NW:
75-B
|
for hose (mm):
65
Product number:
2113075065

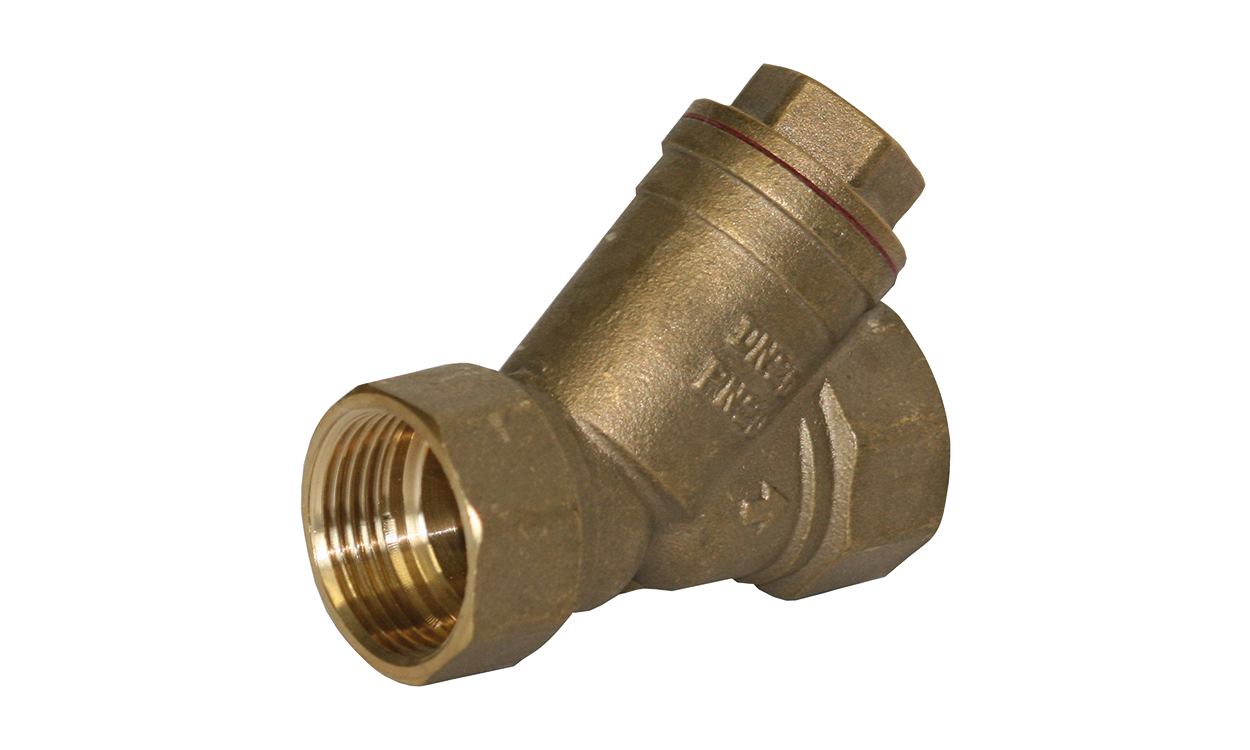

Brass dirt trap
Female thread:
1 1/2"
both sides female thread, with niro fine screen 0,6 mm
Product number:
3230038000
Stainless steel hose nozzle with male thread
for hose (mm) x male thread:
13 x 1/2“ mt
for monting with clamps for, grooved hose nozzle with external thread
Product number:
5090013000
Tension jaw clamps W4
Clamping range (mm):
68-73
wide-band clamp with open able bridge piece and with rounded clamp band edges
Product number:
1531068073
Stainless steel hose nozzle with male thread
for hose (mm) x male thread:
31,8 x 1 1/4“ mt
for monting with clamps for, grooved hose nozzle with external thread
Product number:
5090032000
Stainless steel hose nozzle with male thread
for hose (mm) x male thread:
38,1 x 1 1/2“ mt
for monting with clamps for, grooved hose nozzle with external thread
Product number:
5090038000

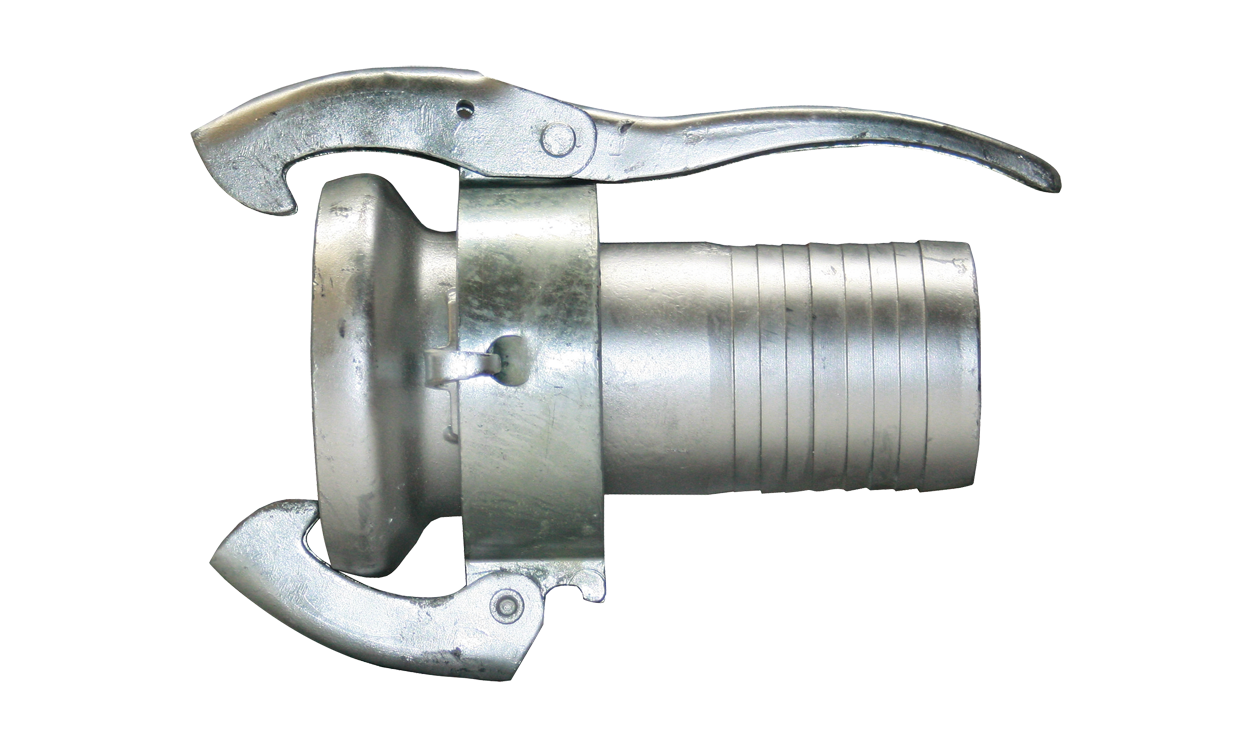

Male coupling with flaked hose nozzle System Perrot
